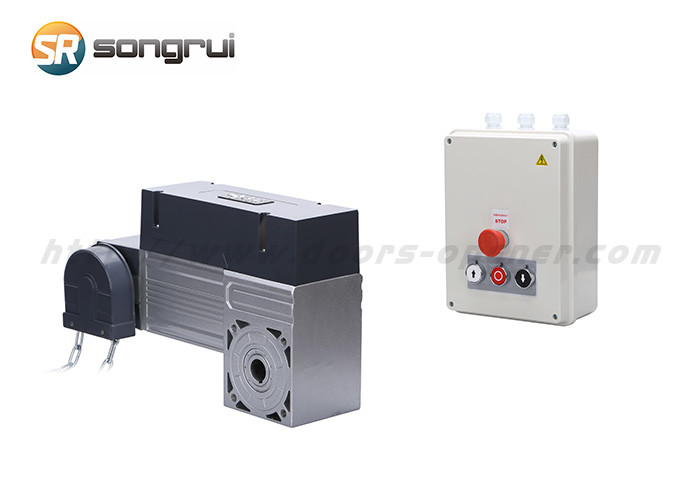

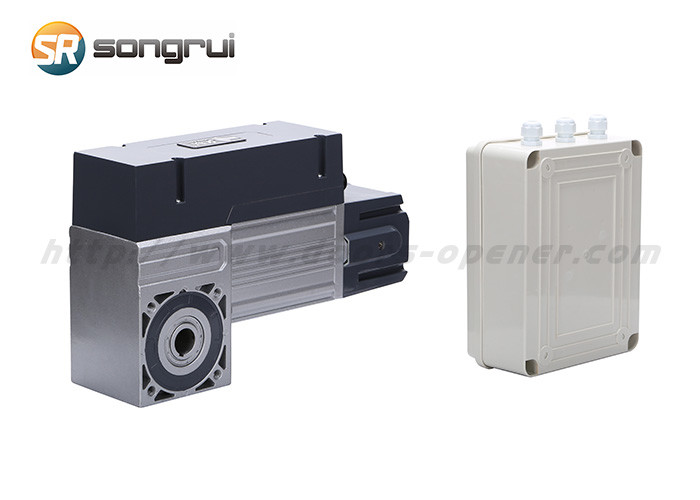

Industrial door motor is used for sectional door and vertical door.
Technical features
1. Operate steadily, low rate heat, efficient
2. The speed of rise and fall is adjustable
3. Human-computer interaction, liquid crystal display,Chinese-English manu
4. Have slow start and slow stop function
5. Turn crossing protection, Prevents motor burn out
6. Automatic search O point after power failure, with built-in encoder
Specifications
|
Model
|
INDUS40DC
|
INDUS70DC
|
INDUS100DC
|
INDUS150DC
|
|
Power Supply
|
AC220V±10%
|
|||
|
Rated Power
|
350W
|
400W
|
750W
|
750W
|
|
Torque
|
40N.m
|
70N.m
|
100N.m
|
150N.m
|
|
Output Speed Range
|
10-50RPM
|
10-50RPM
|
10-40RPM
|
8-30RPM
|
|
Max.Loading
(Door Area) |
20m2
|
30m2
|
45m2
|
65m2
|
|
Encoder Type
|
Single Circle Absolute Encoder
|
|||
|
Manual/Auto switch
|
Pull Cord Switch
|
|||
|
Manual Release
|
Hand-Pulled Chain
|
|||
|
Maximum Limit Travel
|
Output shaft rotates 19 rounds
|
|||
|
Output Shaft Diameter
|
Φ25.4mm
|
|||
Our service:
1. Logo printing on products;
2. Customized color box or carton;
3. Any your ideas on products we can help you to design and put it into production.
