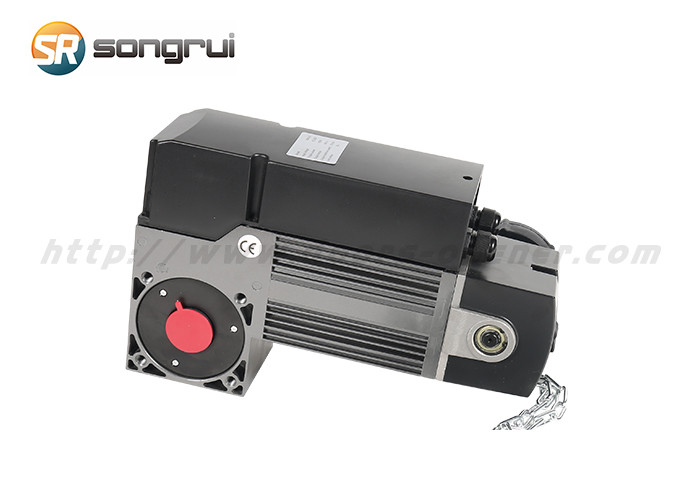

Industrial Sectional Door Opener For 25 Square Meter Automatic Doors 55N.M Variable Frequency Motor
Technical features:
1. Control box: ‘open’, ‘close’, ‘stop’ three buttons control the door separately. The control system is fitted with wiring terminals for photocell, safety edge etc..
2. Human-computer interaction,digital tube display
3. Operate steadily, low rate heat
4. The rate of rise and fall is adjustable
5. Have slow start and slow stop function
6. Turn crossing protection, Prevents motor burn out
Specifications:
| Model | GKBP-50 | GKBP-80 |
| Input voltage | 220V/50Hz | |
| Rated power | 450W | 600W |
| Starting torque | 55N.m | 85N.m |
| Maximum door weight | 25m² | 40m² |
| Noise | ≤55db | |
| Mode of manual chain | Universal chain style | |
| Max limited journey | 19 rounds rotation the output shaft | |
| Ambient temperature | (-20℃-45℃) (-40℃ Can be customized) | |
| Limit | Absolute value encoder | |
| Start State | Slow start slow stop | |
| Load Rouning Time | 18min | |
