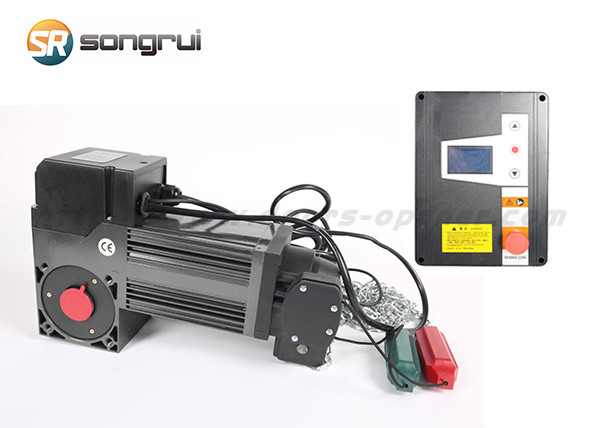

Industrial Sectional Door Opener For 15 Square Meter Automatic Doors 35N.M Brushless Absolute Value Motor
Variable frequency DC motor,The strength of rebound and the distance of slow start and stop can be adjusted.
Technical features:
1. Operate steadily, low rate heat, high efficient
2. The rate of rise and fall is adjustable
3. Human-computer interaction, liquid crystal display,Chinese-English manu
4. Have slow start and slow stop function
5. Turn crossing protection, Prevents motor burn out
6. The location is absoluted encoder controlled
7. Door position adjustment is easier handle
Specifications:
| Model | GKDC-40 | GKDC-55 |
| Input voltage | 220V/50Hz | |
| Rated power | 300W | 400W |
| Starting torque | 35N.m | 50N.m |
| Maximum door weight | 15m² | 20m² |
| Noise | ≤55db | |
| Mode of manual chain | Universal chain style | |
| Max limited journey | 19 rounds rotation the output shaft | |
| Ambient temperature | (-20℃-45℃) (-40℃ Can be customized) | |
| Limit | Absolute value encoder | |
| Start State | Slow start slow stop | |
| Load Rouning Time | 18min | |
Our service:
1. Logo printing on products;
2. Customized color box or carton;
3. Any your ideas on products we can help you to design and put it into production.
