The DKC800AC gate opener designed for residential use, weight up to 800 Kg and operating distance up to 8 meters.
Compact structure, novel appearance, easy installation.
Product features:
1. Ac gate opener
2. Max.gate weight:800kg
3. New sealed motor with encoder
4. Slow start&stop
Keypad / single button interface.
Photo beam safety beam interface.
User can select Auto-close function.
Manual key release design for emergency purposes.

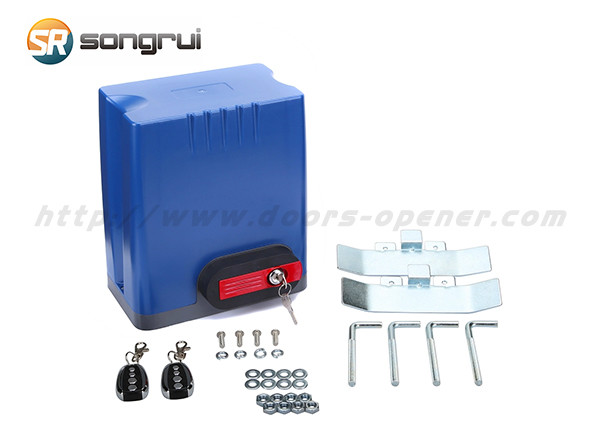

Standard unit
*gate motor
*control board & box
*2pcs remote controls
*manual release key
*user manual
*bolts & nuts
Main technical parameters:
|
Model |
DKC500AC |
DKC500DC |
DKC800AC |
DKC800DC |
|
Color |
Blue/Gray |
|||
|
Max gate weight |
500KG |
800KG |
||
|
Motor power |
200W |
120W |
280W |
170W |
|
Output torque |
14N`m |
18N`m |
||
|
Limit switch |
Spring/magnetic |
Magnetic |
Spring/magnetic |
Magnetic |
|
Gate move speed |
12m/min or 14m/min |
|||
|
Remote control range |
>30M |
|||
