Dual Arm PK350DC Remote Control Swing Door Opener

50 SETS
MOQ
Negotiable
Price
Dual Arm PK350DC Remote Control Swing Door Opener
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Swing Gate Opener
Model Number: PK350DC
Max.single-leaf Weight: 300kg/leaf
Operating Voltage: DC24V
Driving Method: Screw Driven Piston Type
Safety Clutch: Electronic Current Sensing
Remote Control: 433.92MHz Rolling Code
Operating Cycle: 18 Seconds Per 90
Highlight:

PK350DC Remote Control Swing Door Opener

,

24vdc Remote Control Swing Door Opener

,

300kg swing gate opener motor

Basic Infomation
Place of Origin: China
Brand Name: SONGRUI
Certification: CE
Model Number: PK350DC
Payment & Shipping Terms
Delivery Time: 5-8 WORK DAYS
Payment Terms: T/T
Supply Ability: 10000 Set/Sets per Month
Product Description

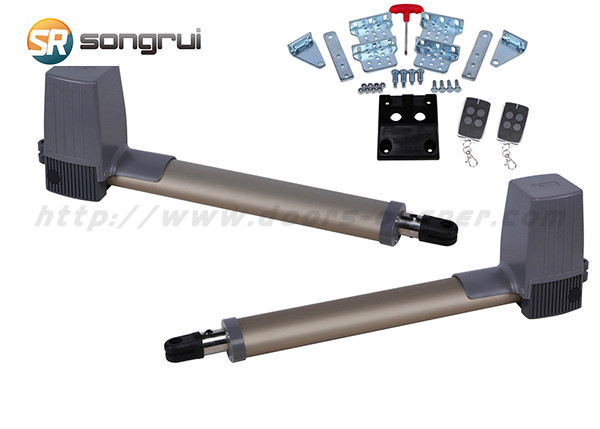

Dual Arm PK350DC Remote Control Swing Door Opener 0

Dual Arm Swing Gate Opener Automatic Electric Door Opener Remote Control

The PK350DC gate opener designed for residential courtyard swing gate use, gate leaf weight up to 300 Kg and width up to 3.0 m.The back-up battery and solar panel can be equipped with this flat door motor



Product features:

* DC motor, compact structure, smooth operation and low noise.

* Optional for Stroke length 29 cm and 49 cm.

* Separately control box

* Keypad / single button interface.

* Alarm lamp, Photo beam & safety beam interface.

* User can select auto-close function.

* Installing the mechanical stops inside the opener to eliminate ground stops, possibility to use adjustable fixing limit block.

* Manual key release design for emergency purposes.

* Automatic stop when hitting obstacle during opening, auto-reverse when hitting obstacle during closing.



Main technical parameters:

Unit Model PK300DC PK350DC
Power Supply 220V,50Hz;110V,60Hz
Max. Gate Weight 300KG / Leaf
Max. Gate Length 2.5 m / Leaf 3.0 m / Leaf
Motor Power DC24V,80W
Gate Moving Speed 20 second per 90 angle
Limit Switch Stop Block
Recording of up Remotes 25
Decoding / Frequency Rolling code / 433.92MHz
Work Duty S2 30min
Noise ≤60dB
Work Temperature -20°C~70°C
Gross Weight 16 KG 19 KG

Dual Arm PK350DC Remote Control Swing Door Opener 1Dual Arm PK350DC Remote Control Swing Door Opener 2

Dual Arm PK350DC Remote Control Swing Door Opener 3Dual Arm PK350DC Remote Control Swing Door Opener 4
