1000KG DC Motor Electric Sliding Gate Opener With Solar Panel

50 SETS
MOQ
Negotiable
Price
1000KG DC Motor Electric Sliding Gate Opener With Solar Panel
Features Gallery Product Description Request A Quote
Features
Specifications
Power Supply: AC220V/50Hz; AC110V/60Hz
Motor Power: 280W
Lifting Force: 800KG
Certificate: CE
Gate Move Speed: 360mm/s
Limit Switch: Mechanical Limit
High Light:

1000KG Electric Sliding Gate Opener

,

Solar Panel Sliding Gate Opener

,

DC Motor Sliding Gate Opener

Basic Infomation
Place of Origin: China
Brand Name: SONGRUI
Certification: CE
Model Number: GL
Payment & Shipping Terms
Packaging Details: 37*25.5*32cm
Delivery Time: 5-8 WORK DAYS
Payment Terms: T/T
Supply Ability: 10000 Set/Sets per Month
Product Description



1000KG DC Motor Electric Sliding Gate Opener With Solar Panel 0


1000KG DC Motor Electric Sliding Gate Opener With Solar Panel 0

1000KG DC Motor Electric Sliding Gate Opener with solar panel



The DC motor gate opener designed for residential use, weight up to 1000Kg to 2000KG and operating distance up to 20 meters.



Detailed Product Description

  • Compact structure, novel appearance, easy installation, cost-effective.
  • DC  motor with built-in control unit.
  • Optional connect backup battery.
  • Solar system compatible.
  • Keypad / single button interface.
  • Alarm lamp, photo beam & safety beam interface.
  • User can select auto-close function.Soft start and slow stop.
  • Auto-reverse function when hitting obstacle during closing.
  • Manual key release design for emergency purposes.

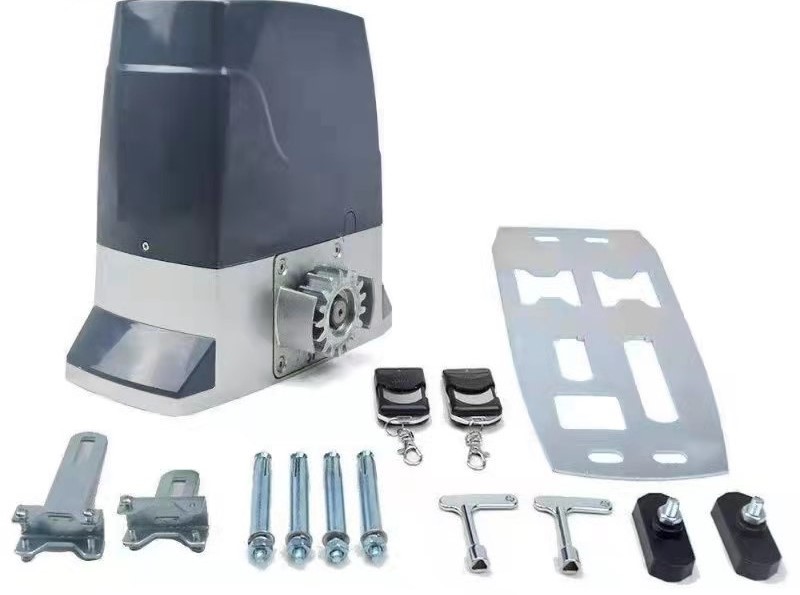

Standard Unit

  • gate motor
  • control board & box
  • 2pcs remote controls
  • manual release key
  • user manual
  • bolts & nuts

Main technical parameters

Model NO. BG1000 BGH1500 BG1200 BG2000
Capacity 1000Kg 1500Kg 1200Kg 2000Kg
Input Voltage AC 220/110V AC 220/110V AC 220/110V AC 220/110V
Output Voltage DC 24V DC 24V DC 24V DC 24V
Rated Power 130W 180W 250W 280W
Output Torque 21N.m 29N.m 30N.m 47N.m
Rotation Speed 1500rpm 1500rpm 2500rpm 1500rpm
Gate Speed 12m/min 12m/min 18m/min 12m/min
Limit Switch Magnetic (NC/NO)
Spring
Magnetic (NC/NO)
Spring
Magnetic (NC/NO)
Spring
Magnetic (NC/NO)
Spring
Noise ≤50dB ≤50dB ≤50dB ≤50dB
Temperature ‘-45℃ ~ +75℃ ‘-45℃ ~ +75℃ ‘-45℃ ~ +75℃ ‘-45℃ ~ +75℃

1000KG DC Motor Electric Sliding Gate Opener With Solar Panel 21000KG DC Motor Electric Sliding Gate Opener With Solar Panel 31000KG DC Motor Electric Sliding Gate Opener With Solar Panel 4
