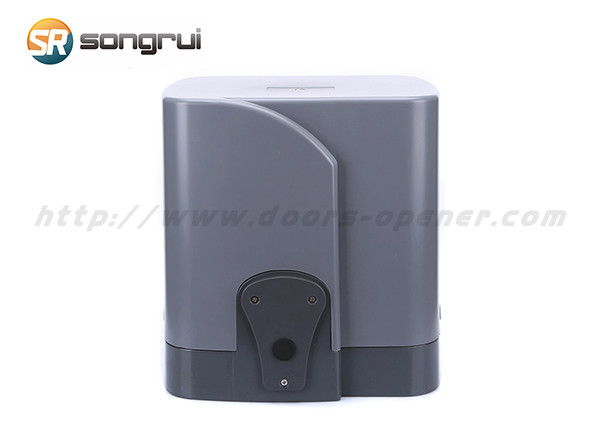

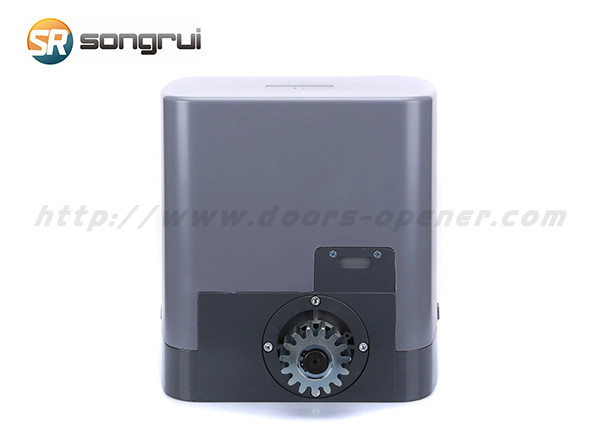

Sliding Gate Opener Automatic Door Operator Automation AC 600W Motor Waterproof 2000KG PY2000AC
The gate opener designed for commercial and industrial use, weight up to 2000Kg and operating distance up to 12 meters.
Product features:
* Oil lubrication, generous appearance, heavy duty.
* Compact strucretu, cost-effective.
* AC motor with built-in control unit.
* Keypad / single button interface.
* Alarm lamp, photo beam & safty beam interface.
* User can select auto-close function.
* Soft start and slow stop. (Smart version)
* Auto-reverse function when hitting obstacle during closing. (Smart version)
* Manual key release design for emergency purposes.
Main technical parameters:
|
Warranty
|
1 Year
|
|
After-sale Service
|
Online technical support
|
|
Project Solution Capability
|
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
|
|
Application
|
Apartment
|
|
Design Style
|
Modern
|
|
Model Number
|
PY2000AC
|
|
Model
|
PY2000AC
|
|
Power supply
|
AC110V/60Hz, AC220V/50Hz
|
|
Motor power
|
600W
|
| Output Torque | 36N.m |
| Output Shaft Height | 56mm |
|
Gate moving speed
|
10-13m/min
|
|
Maximum weight of gate
|
2000Kg
|
|
Remote control distance
|
≥30m
|
| Recording of Up Remote | 25 |
| Remote Frequency | 433.92NHz |
|
Remote control mode
|
Single button mode / Three button mode
|
|
Limit switch
|
Spring limit switch / Magnetic limit switch
|
| Work Duty | S2 20min |
| Working Noise | ≤58dB |
|
Working temperature
|
-20°C ~ +50°C
|
| Driving Mode | Gear |
|
Package weight
|
17.00Kg
|
