220V Sliding 280W 600KG Home Automatic Gate Opener

220V Sliding 280W 600KG Home Automatic Gate Opener
Features Gallery Product Description Request A Quote
Power Supply: 220V/50Hz;110V/60Hz
Motor Power: 280W
Gate Moving Speed: 11-13m/min
Maximum Weight: 600kg
Remote Control Distance: ≥30m
Limit Switch: Spring Limit Switch / Magnetic Limit Switch
High Light:

600KG Home Automatic Gate Opener


280W Home Automatic Gate Opener


220V auto sliding gate motor

Basic Infomation
Place of Origin: China
Brand Name: SONGRUI
Certification: CE
Model Number: SL600AC
Payment & Shipping Terms
Packaging Details: 340*290*373cm
Delivery Time: 5-8 WORK DAYS
Payment Terms: T/T
Supply Ability: 10000 Set/Sets per Month
Product Description

Automatic Sliding Gate Opener For Home Gate Automation System AC Motor

Oringinal manufacturer of sliding gate opener and garage door opener.

SL600AC(gear drive)---operates by forcing a drive rack by a drive gear, will handle gate weighting up to 600kg .

PY600AC is pointed to South America Market. Reliable Quality with Low Cost.

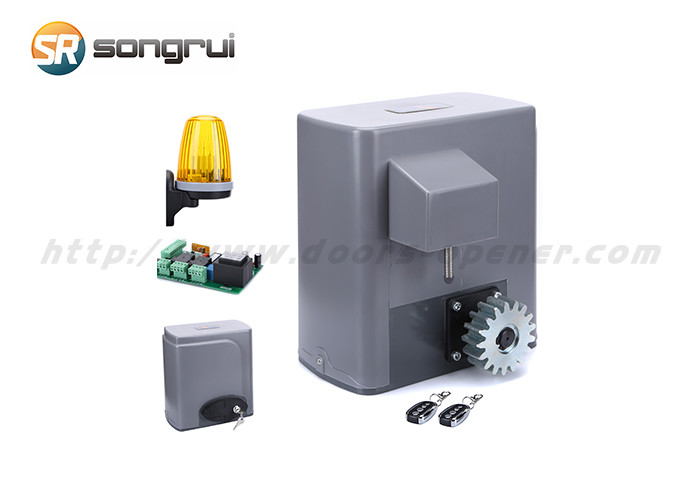

Standard unit includes: SL600AC gate motor+control board+2 pcs remote control+one manual release key+installation manual.


Product features:

1. Particularly simple installation, just two power line can solve all problems.

2. Aluminum base, copper worm-gear, reliable and good quality.

3. MCU is supplied to control the gate operator.

   Keypad / single button interface.

   Photo beam safety beam interface.

4. Auto-close function is adjustable, set gate to auto-close within 15s, 45s, 60s

5. Manual key release design for emergency purposes.

6. A comprehensive interface: Infrared,, external buttons, ect.


Standard unit:

* gate motor
* control board & box
* 2pcs remote controls
* manual release key
* user manual
* bolts & nuts

* 6m chain and iron plate


Main technical parameters:

Type SL600AC SL600ACU
Power supply 220V, 50Hz 110V, 60Hz
Motor speed 55rpm 66rpm
Rated output power of motor 200W
Remote control operating distance 30m (Frequency:433.92mHz)
Remote control mode Single button
Output shaft height 58.5mm
Max. gate weight 600Kg
Output torque 16N·m
Limit switch Spring limit switch
Noise ≤58dB
Duty cycle S2, 15 minutes
extra remote control 20
Environmental temperature -20°C~+50°C
Gate Move speed 11m/min 13m/min


Our service:

Welcome OEM&ODM orders

1. Logo printing on products;
2. Customized color box or carton;
3. Any your ideas on products we can help you to design and put it into production.
