Door Automation Sliding Gate Opener For 1500kg Magnetic Limit Switch
The SL1500AC gate opener designed for commercial and industrial use, weight up to 1500Kg and operating distance up to 12 meters.
Main Features:
* Run smoothly, unique appearance and powerful.
* Built in control board
* Keypad / single button interface.
* Alarm lamp, Photo beam & safety beam interface.
* User can select auto-close function.
* Optional for spring limit switch and magnetic limit switch
* Manual key release design for emergency purposes.
* Automatic stop when hitting obstacle during opening, auto-reverse when hitting obstacle during closing. (Smart version)

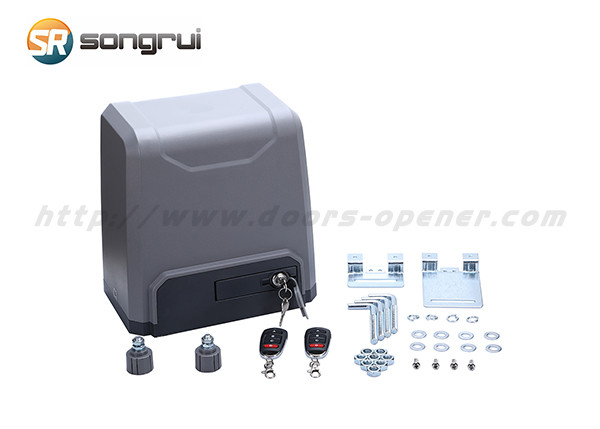

Standard unit:
Main technical parameters:
| Unit Model | SL1000AC | SL1500AC |
| Power Supply | AC220V/50Hz; AC110V/60Hz | |
| Maximum Gate Weight | 1000kg | 1500kg |
| Motor Power | 400W | 550W |
| Output Torque | 22N.m | 32N.m |
| Output Shaft Height | 50mm | 50mm |
| Limit Switch | magnetic limit switch or spring limit switch | |
| Gate Moving Speed | 11-13m/min | |
| Remote Control Range | ≥30m | |
| Recording of Up Remotes | 25 | |
| Frequency | 433.92MHz | |
| Work Duty | S2 15min | |
| Noise | ≤58db | |
| Working Temperature | -20℃~+50℃ | |
| Driving Mode | Gear | |
| Package Weight | 13kg | 14kg |
