1000N 245 Watt 240 Volt Overhead Garage Door Motor

50 SETS
MOQ
Negotiable
Price
1000N 245 Watt 240 Volt Overhead Garage Door Motor
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Sectional Garage Door Opener
Model Number: Proline 1000F
Lifting Force: 600N/800N/1000N/1200N
Door Area: 10㎡/12㎡/14㎡/16㎡
Motor Power: 200W/235W/245W/260W
Radio Frequency: 433.92MHZ
High Light:

1000N Overhead Garage Door Motor

,

245w Overhead Garage Door Motor

,

1200N overhead door smart opener

Basic Infomation
Place of Origin: China
Brand Name: SONGRUI
Certification: CE
Model Number: Pro Line 1000F
Payment & Shipping Terms
Delivery Time: 5-8 WORK DAYS
Payment Terms: T/T
Product Description

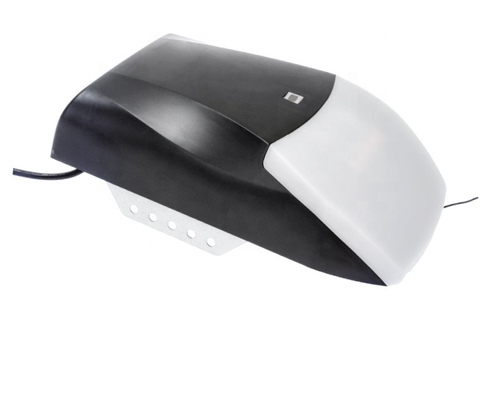

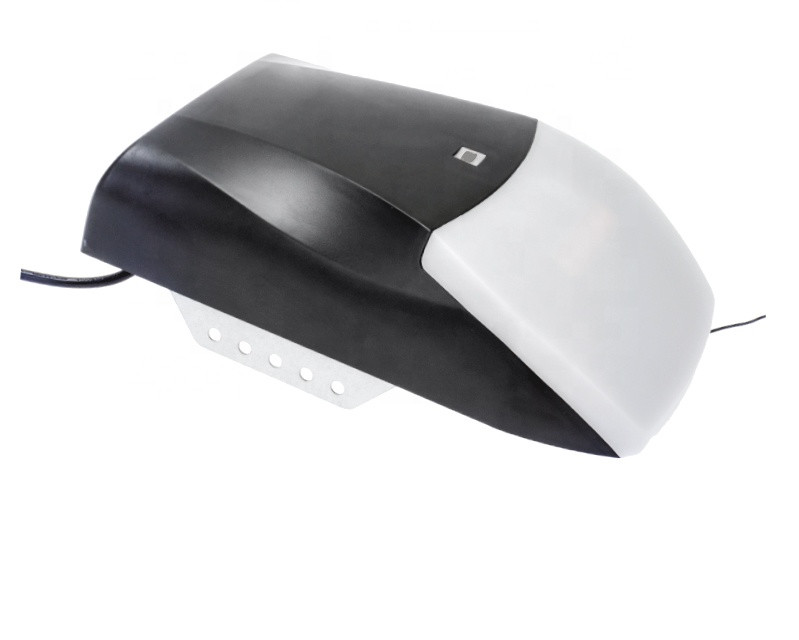

Sectional Vertical Garage Door Opener Overhead Garage Door Motor

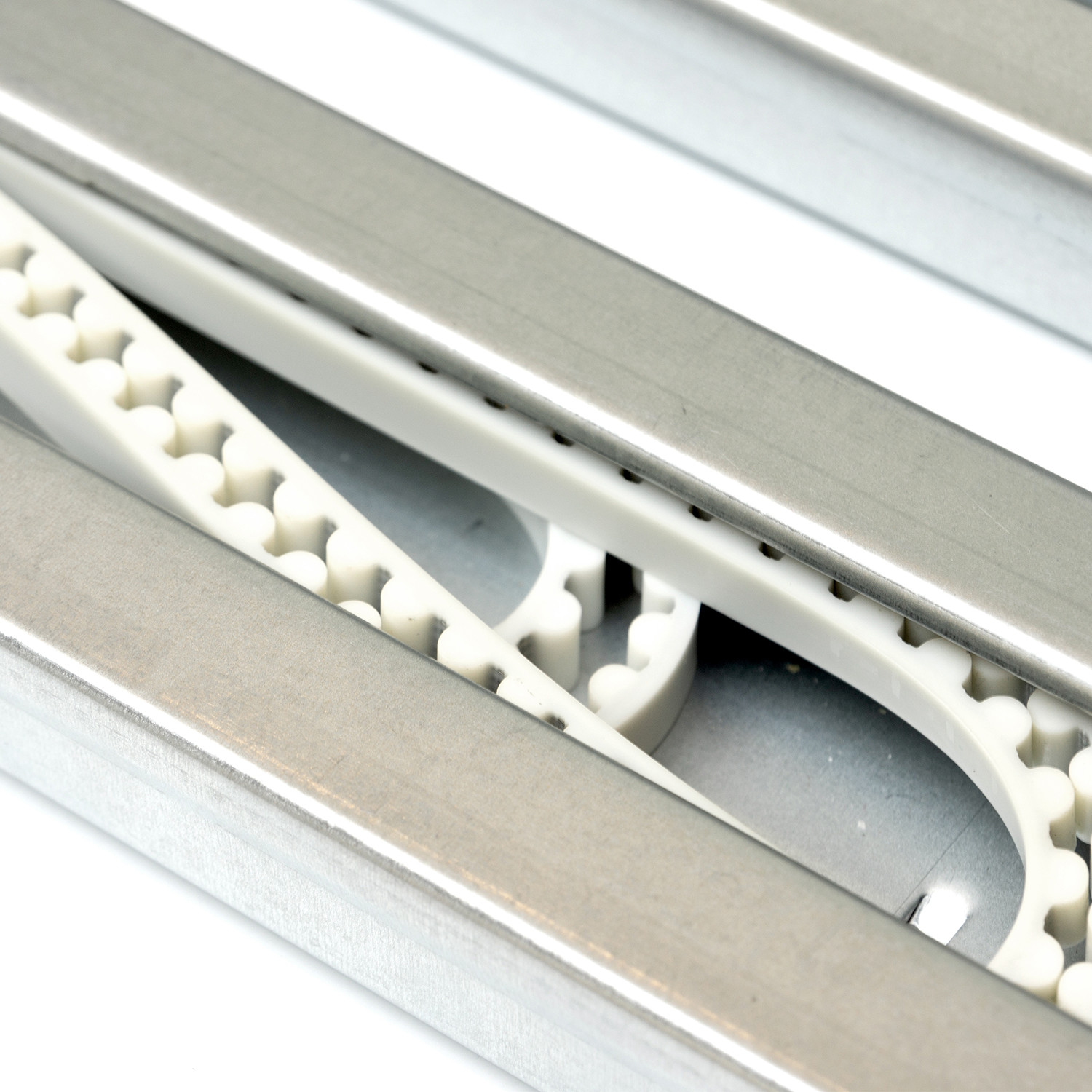

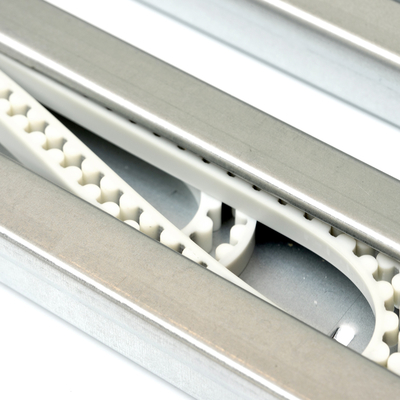

there are two kinds of rail sets could be choosed. the chain and the belt.



Key features:

1. Soft start,soft stop

2. Electronic limit

3. Overload force detecting

4. Fast automatic safety reverse

5. Low-voltage protection

6. Manual release in case of power failure

7. Automatic closing available

8. Connector for wall switch available

9. Connector for photocell available

10. Connector for backup battery available

11. Connector for flash light as optional

12. Connector for pass door protection as optional

13. WIFI optional

14. O/S/C button



Main technical parameters:

Model Pro Line 600F Pro Line 800F Pro Line 1000F Pro Line 1200F
Input voltage 220-240V AC,50/60Hz 220-240V AC,50/60Hz 220-240V AC,50/60Hz 220-240V AC,50/60Hz

Power input 200W 235W 245W 260W
Max.pulling force 600N 800N 1000N 1200N

Lamp LED LED LED LED

Light time 3 minutes 3 minutes 3 minutes 3 minutes

Coding type Rolling code Rolling code Rolling code Rolling code

Radio frequency 433.92 MHz or other on request 433.92 MHz or other on request 433.92 MHz or other on request 433.92 MHz or other on request

Working temperature -20℃- 40℃ -20℃- 40℃ -20℃- 40℃ -20℃- 40℃

Relative humidity <90% <90% <90% <90%

Max.door area 10 12 14 16

Remote capacity 20 20 20 20




Our service:

Welcome OEM&ODM orders

1. Logo printing on products;
2. Customized color box or carton;
3. Any your ideas on products we can help you to design and put it into production.
