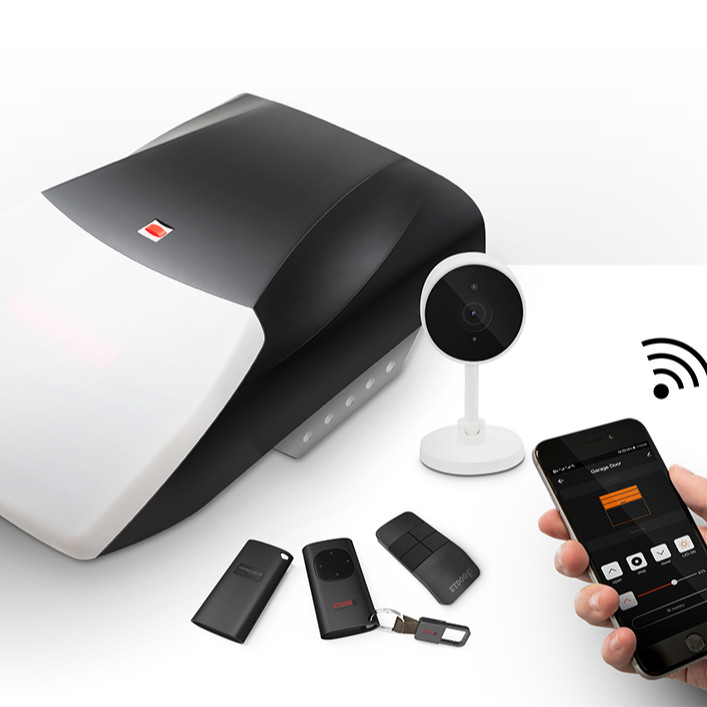

Battery Backup WiFi Garage Door Opener DC Motor Automatic Door Operator
SR garage door openers is come out from intelligent, humanization design idea and digital. You will make your life fun and smart with your garage door opener.
Key features:
1. Soft start,soft stop
2. Electronic limit
3. Overload force detecting
4. Fast automatic safety reverse
5. Low-voltage protection
6. Manual release in case of power failure
7. Automatic closing available
8. Connector for wall switch available
9. Connector for photocell available
10. Connector for backup battery available
11. Connector for flash light as optional
12. Connector for pass door protection as optional
13. WIFI optional
14. O/S/C button
Main technical parameters:
| Model | Pro Line 600F | Pro Line 800F | Pro Line 1000F | Pro Line 1200F |
| Input voltage | 220-240V AC,50/60Hz | 220-240V AC,50/60Hz | 220-240V AC,50/60Hz | 220-240V AC,50/60Hz |
| Power input | 200W | 235W | 245W | 260W |
| Max.pulling force | 600N | 800N | 1000N | 1200N |
| Lamp | LED | LED | LED | LED |
| Light time | 3 minutes | 3 minutes | 3 minutes | 3 minutes |
| Coding type | Rolling code | Rolling code | Rolling code | Rolling code |
| Radio frequency | 433.92 MHz or other on request | 433.92 MHz or other on request | 433.92 MHz or other on request | 433.92 MHz or other on request |
| Working temperature | -20℃- 40℃ | -20℃- 40℃ | -20℃- 40℃ | -20℃- 40℃ |
| Relative humidity | <90% | <90% | <90% | <90% |
| Max.door area | 10 | 12 | 14 | 16 |
| Remote capacity | 20 | 20 | 20 | 20 |
Our service:
Welcome OEM&ODM orders
1. Logo printing on products;
2. Customized color box or carton;
3. Any your ideas on products we can help you to design and put it into production.
