Overhead CK300AC 260W 300KG Tilt Garage Door Opener

50 SETS
MOQ
Negotiable
Price
Overhead CK300AC 260W 300KG Tilt Garage Door Opener
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Overhead Door Garage Door Opener
Model Number: CK300AC
Power Supply: 220V/50Hz;110V/60Hz
Motor Power: 260W
Maximum Weight Of Door: 300Kg
Limit Switch: Mechanical Limit Switch
Remote Control Mode: Single Button Mode / Three Button Mode
Package Weight: 13.6Kg
Highlight:

300KG Tilt Garage Door Opener

,

260W Tilt Garage Door Opener

,

CK300AC overhead garage door motor

Basic Infomation
Place of Origin: China
Brand Name: SONGRUI
Certification: CE
Model Number: CK300AC
Payment & Shipping Terms
Packaging Details: 340*290*373cm
Delivery Time: 5-8 WORK DAYS
Payment Terms: T/T
Supply Ability: 10000 Set/Sets per Month
Product Description

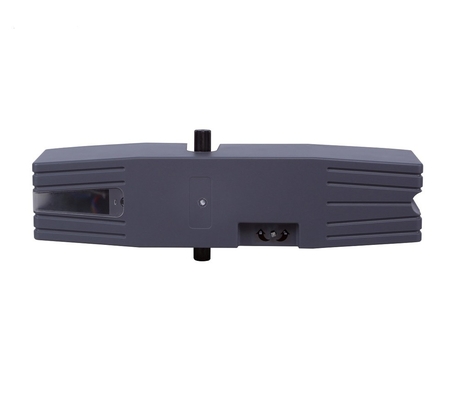

Overhead CK300AC 260W 300KG Tilt Garage Door Opener 0

Tilt Garage Door Opener Kit And Over Garage Doors AC

Folding garage door is suitable for the back space is not enough to install the flap garage door



Main Features:

1. Built in control unit with 433.92 MHz receiver

2. Built in LED courtesy light

3. Keypad / single button interface.

4. Alarm lamp, Photo beam & safety beam interface.

5. Mechanical limit switch

6. Manual key release design for emergency purposes.

7. Installation accessories with pull rod and bush.

8. Available for two door openers mounted on each side for larger door.



Standard Unit:

  • CK300AC motor * 1pcs
  • built in control board * 1pcs
  • remote control * 2pcs
  • telescopic arm * 1pcs
  • manual release key * 1pcs
  • user manual*1pcs
  • mounting accessories.

Main technical parameters:

Type CK300AC
Power supply 220V, 50Hz/110V,60Hz
Rated output power of motor 200W
Output torque 350N·m
speed 1.75rpm
Door max surface 9
Remote control operating distance 30m (Frequency:433.92mHz)
Remote control mode Single button
Limit switch Mechanical limit switch
Noise ≤58dB
Duty cycle S2, 15 minutes
extra remote control 20
Environmental temperature -20°C~+70°C



Our service:

Welcome OEM&ODM orders

1. Logo printing on products;
2. Customized color box or carton;
3. Any your ideas on products we can help you to design and put it into production.

Overhead CK300AC 260W 300KG Tilt Garage Door Opener 1Overhead CK300AC 260W 300KG Tilt Garage Door Opener 2Overhead CK300AC 260W 300KG Tilt Garage Door Opener 3

Overhead CK300AC 260W 300KG Tilt Garage Door Opener 4Overhead CK300AC 260W 300KG Tilt Garage Door Opener 5
