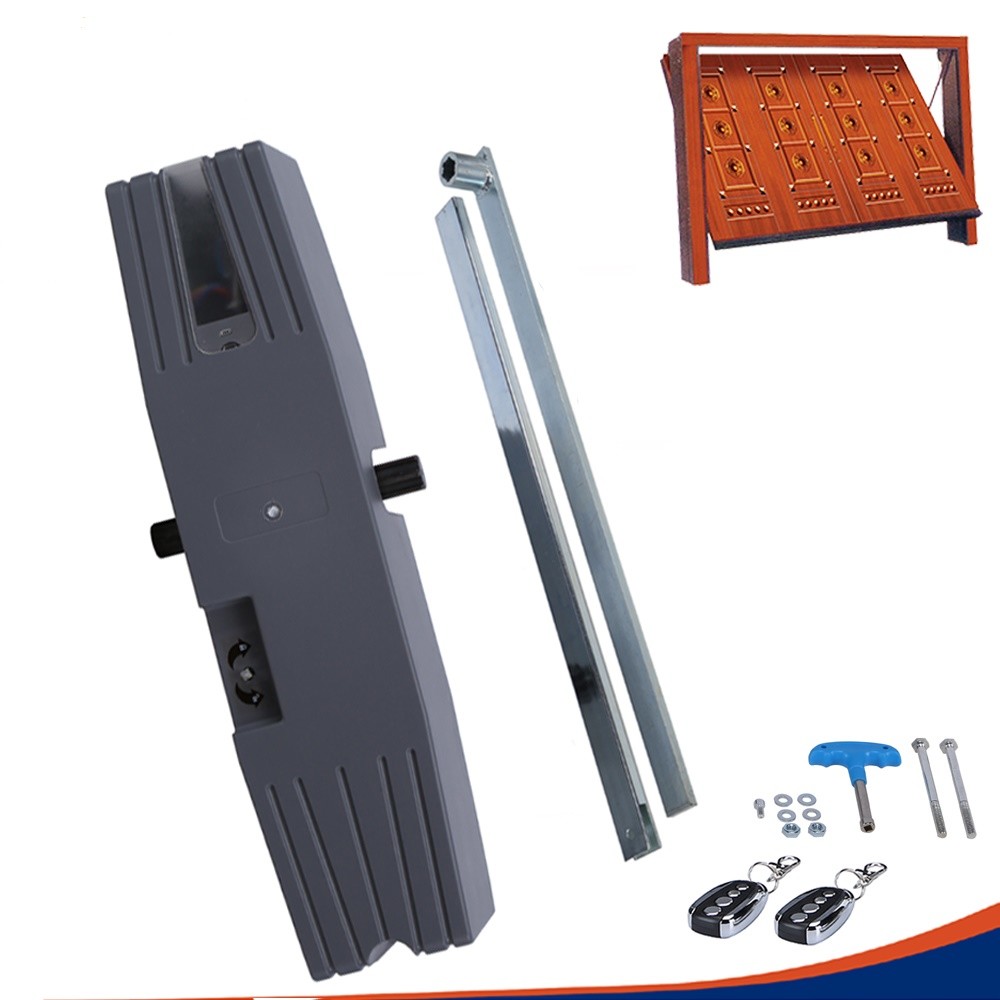

The door operator is used to drive up and over garage doors with balance or counterweight.
All in one design,compact construction,exquisite appearance,Smart control,remarkable performance,superior quality,
easy operation.
Product features:
1. Built in control unit with 433.92 MHz receiver
2. Built in LED courtesy light
3. Keypad / single button interface.
4. Alarm lamp, Photo beam & safety beam interface.
5. Mechanical limit switch
6. Manual key release design for emergency purposes.
7. Installation accessories with pull rod and bush.
8. Available for two door openers mounted on each side for larger door.
Main technical parameters:
item | value |
Warranty | 1 Year |
After-sale Service | Online technical support |
Project Solution Capability | graphic design, 3D model design, total solution for projects, Cross Categories Consolidation |
Application | Villa |
Design Style | Modern |
Model Number | CK300AC |
Model | CK300AC |
Power supply | 220V/50Hz,110V/60Hz |
Motor power | 260W |
Maximum weight of door | 300Kg |
Remote control distance | ≥30m |
Remote control mode | Single button mode / Three button mode |
Limit switch | Mechanical limit switch |
Noise | ≤60dB |
Working temperature | -20°C ~ +70°C |
Package weight | 13.6Kg |
Our service:
Welcome OEM&ODM orders
1. Logo printing on products;
2. Customized color box or carton;
3. Any your ideas on products we can help you to design and put it into production.
