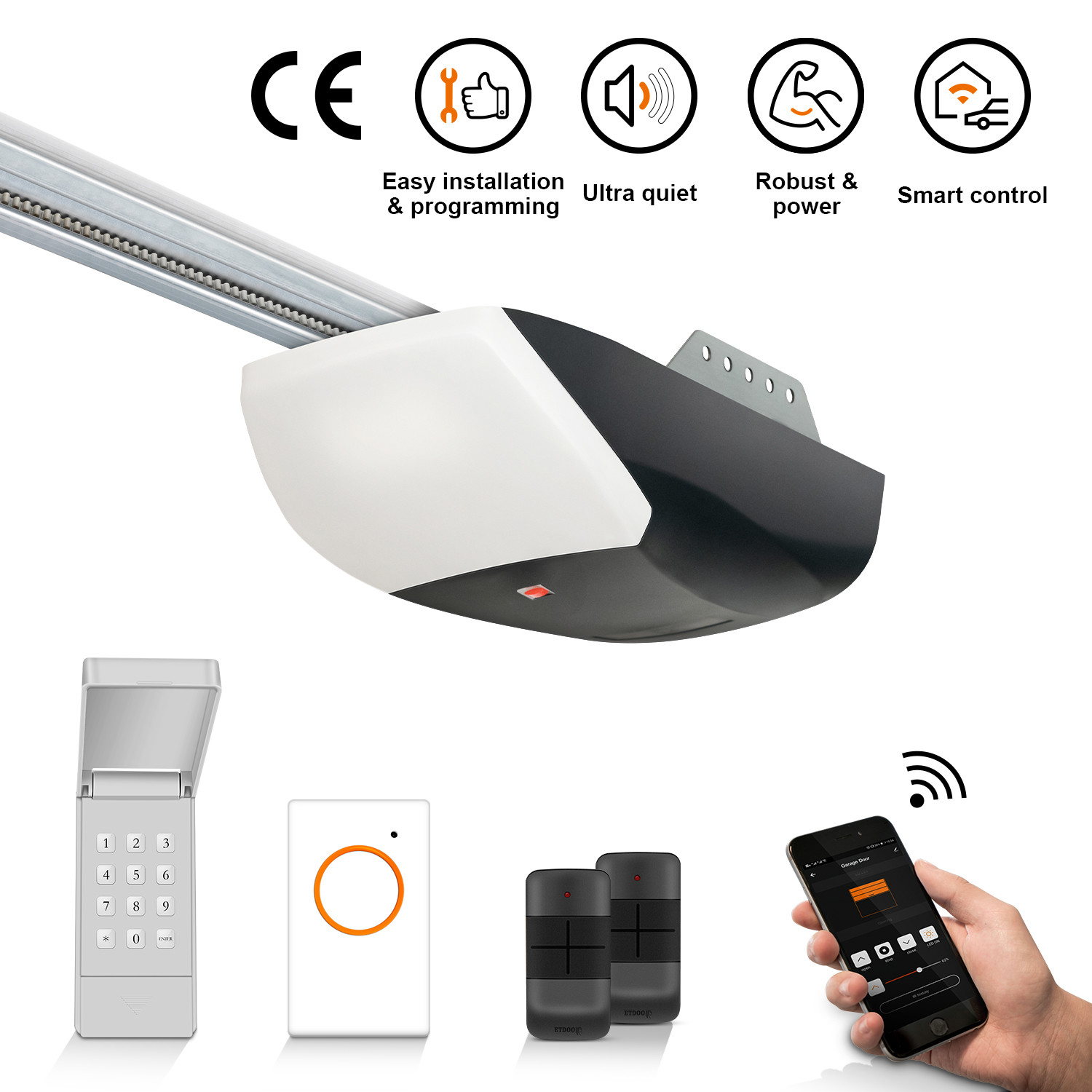

24VDC 1200N Garage Door Opener Motor For Sectional Garage Door With WIFI
The Pro Line 1200F door opener designed for sectional garage door use, up to 16sq.m. Turnover garage door motor is widely used in household garage.
Key features:
1. Soft start,soft stop
2. Electronic limit
3. Overload force detecting
4. Fast automatic safety reverse
5. Low-voltage protection
6. Manual release in case of power failure
7. Automatic closing available
8. Connector for wall switch available
9. Connector for photocell available
10. Connector for backup battery available
11. Connector for flash light as optional
12. Connector for pass door protection as optional
13. WIFI optional
14. O/S/C button
Product Description:
| Model | Pro Line 600F | Pro Line 800F | Pro Line 1000F | Pro Line 1200F |
| Input voltage | 220-240V AC,50/60Hz | 220-240V AC,50/60Hz | 220-240V AC,50/60Hz | 220-240V AC,50/60Hz |
| Power input | 200W | 235W | 245W | 260W |
| Max.pulling force | 600N | 800N | 1000N | 1200N |
| Lamp | LED | LED | LED | LED |
| Light time | 3 minutes | 3 minutes | 3 minutes | 3 minutes |
| Coding type | Rolling code | Rolling code | Rolling code | Rolling code |
| Radio frequency | 433.92 MHz or other on request | 433.92 MHz or other on request | 433.92 MHz or other on request | 433.92 MHz or other on request |
| Working temperature | -20℃- 40℃ | -20℃- 40℃ | -20℃- 40℃ | -20℃- 40℃ |
| Relative humidity | <90% | <90% | <90% | <90% |
| Max.door area | 10 | 12 | 14 | 16 |
| Remote capacity | 20 | 20 | 20 | 20 |
Our service:
Welcome OEM&ODM orders
1. Logo printing on products;
2. Customized color box or carton;
3. Any your ideas on products we can help you to design and put it into production.
