280W Chain Drive 600KG SL600ACL Sliding Gate Opener

50 SETS
MOQ
Negotiable
Price
280W Chain Drive 600KG SL600ACL Sliding Gate Opener
Features Gallery Product Description Request A Quote
Features
Specifications
Power Supply: 220V/50Hz;110V/60Hz
Motor Power: 280W
Gate Moving Speed: 11-13m/min
Maximum Weight: 600kg
Remote Control Distance: ≥30m
Limit Switch: Spring Limit Switch / Magnetic Limit Switch
High Light:

SL600ACL Sliding Gate Opener

,

600KG SL600ACL Sliding Gate Opener

,

280W sliding auto gate motor

Basic Infomation
Place of Origin: China
Brand Name: SONGRUI
Certification: CE
Model Number: SL600ACL
Payment & Shipping Terms
Packaging Details: 340*290*373cm
Delivery Time: 5-8 WORK DAYS
Payment Terms: T/T
Supply Ability: 10000 Set/Sets per Month
Product Description



280W Chain Drive 600KG SL600ACL Sliding Gate Opener 0

Chain Drive Automatic Sliding Gate Opener 600Kg
This door opener will handle gate weighting up to 600Kg .It operates by forcing a drive rack by a drive chain.

Product features:
1. Ac gate opener
2. Max.gate weight:600kg
3. New sealed motor with encoder
4. Slow start&stop
5. Keypad / single button interface.
6. Photo beam safety beam interface.
7. User can select Auto-close function.
8. Manual key release design for emergency purposes.

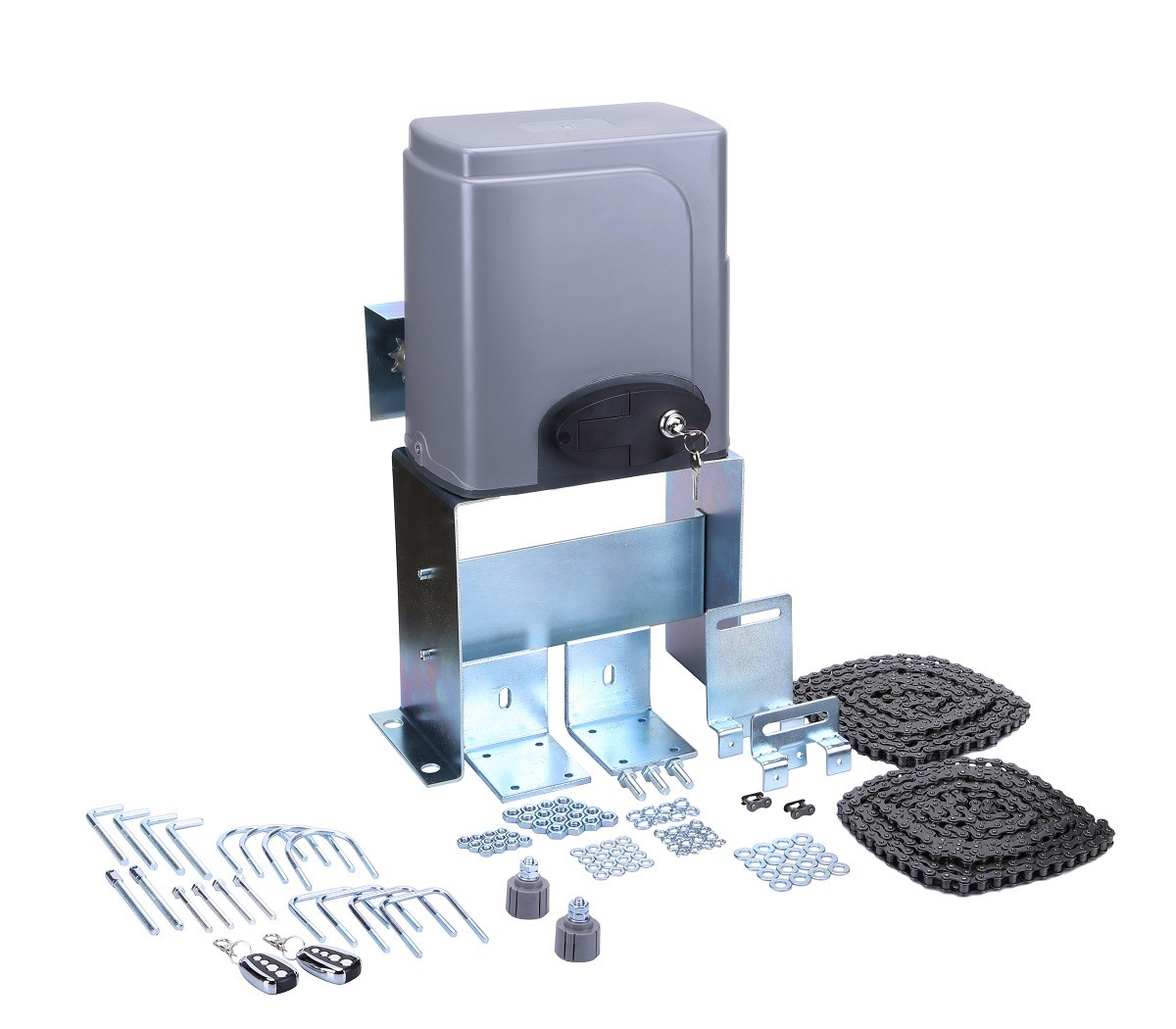

Standard unit:

*gate motor
*control board & box
*2pcs remote controls
*manual release key
*user manual
*bolts & nuts
*6m chain and iron plate


Main technical parameters:

Engine

Engine model

SL600AC

SL600ACL

Power Supply

AC220V/50Hz; AC110V/60Hz

Motor Power

280W


Main performance parameters

Maximum Gate Weight

600kg

Output Torque

16N.m

Output Shaft Height

46mm


Technical parameters

Limit Switch

Magnetic limit switch/Spring limit switch

Gate Moving Speed

11-13m/min

Remote Control Range

≥30m



Recording of Up Remotes

25

Frequency

433.92MHz

Work Duty

S2 15min

Noise

≤58db

Working Temperature

-20℃~+50℃

Driving Mode

Gear

Chian

Package Weight

10kg

16kg



Our service:

Welcome OEM&ODM orders

1. Logo printing on products;
2. Customized color box or carton;
3. Any your ideas on products we can help you to design and put it into production.

 280W Chain Drive 600KG SL600ACL Sliding Gate Opener 1
280W Chain Drive 600KG SL600ACL Sliding Gate Opener 2
280W Chain Drive 600KG SL600ACL Sliding Gate Opener 3
