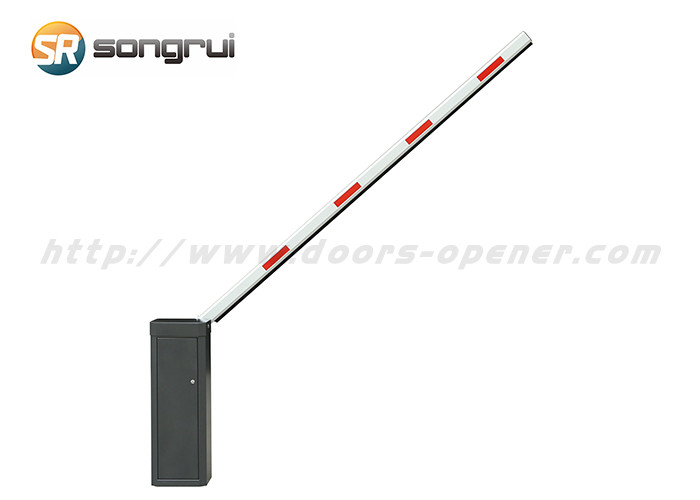

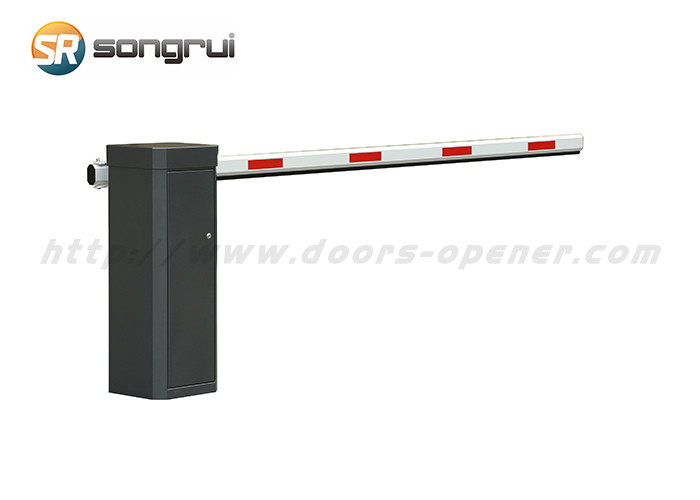

Intelligent Road 1M Boom Barrier Gate , IP54 Remote Control Barrier Gate

50 SETS
MOQ
Negotiable
Price
Intelligent Road 1M Boom Barrier Gate , IP54 Remote Control Barrier Gate
Features Gallery Product Description Request A Quote
Features
Specifications
Power Supply: AC110V-264V/47-63HZ
Motor Power: 100W
Max.Power Consumption(Operating): 100W
Max.Power Consumption(Standby): 8W
Control Voltage: 24VDC/max.300mA
Service Life: 5-10 Million Times
Motor Speed: 0.9-2.5secs Adjustable
Motor Speed Without Load: 3000r/min
Driving Method: Servo Motor+Planetary Reducer
Protection :Level: IP54
High Light:

1M Boom Barrier Gate

,

3.3ft Boom Barrier Gate

,

IP54 Remote Control Barrier Gate

Basic Infomation
Place of Origin: China
Brand Name: SONGRUI
Certification: CE
Model Number: BG6035
Payment & Shipping Terms
Delivery Time: 5-8 WORK DAYS
Payment Terms: T/T
Product Description

Intelligent Road Automatic Remote Control Traffic Safty Parking Barrier

According to the performance of the control part, it can be divided into: electromechanical gate, digital gate and intelligent gate. The intelligent gate has the functions of LED display and voice broadcast.

According to the gate pole, it can be divided into: barrier gate, straight pole gate and curved arm gate

According to the landing speed is divided into: fast gate, medium gate, slow gate

According to the installation direction, it can be divided into: left gate and right gate.



Features:

1. Efficient Servo Motor

Low power high output, energy conservation and environmental friendly. The output is 100W;

2. Efficient and precise planetary reducer drive

Equipped with the same planetary reducer as industrial robots and industrial automation equipment—double planetary reducer.

3. Advanced servo controlling system

Grasped core technology, with fast speed and high accuracy, it genuinely realized the PID closed loop control between running speed and acceleration.

4. High Security

Automatically lifting when power off, which complies with the fire safety requirements. Anti-collision protection function.

Auto-Reverse or Auto-Stop function when hitting obstacles.

5. Five “without” design

Without position sensor;without shock absorption rubber brick; without clutch device, automatically lifting when power off, or can be set barrier arm lifted manually; without keyway design, no more worries about hidden danger by the gap between key and keyway and the lever jitter problem; without brake design, no more worries about problem caused by brake wear and the resulting reliability problem.6.

6. All-weather adaptability

Excellent weather ability index, working temperature from -40℃to 80℃. All- weather working, no matter in freezing cold winter or in scorching heat summer.

7. Backup battery

Optional connect with DC24V backup battery, compatible with solar system, wind power generation, moveable work anywhere anytime.



Product Specification:

Servo Barrier Gate

BG2506

BG3009

BG4014

BG5025

BG6035

Boom Length/Sectional Size

≤2.5m/φ75mm

≤3.0m/φ75mm OctagonalBar 80*46mm

≤4.0 m/φ75mm OctagonalBar 80*46mm

≤5.0m/φ75mm OctagonalBar 80*46mm

≤6.0m/φ75mm Octagonal Bar 80*46mm

Open/Close time

0.6s

0.9s

1.4s

2.5s

3.5s

Power



150W

100W

Max power Consumption(Operating)

Max Power Consumption(Standby)

8W

Power Supply

AC110-264V/47-63HZ

Control Voltage

24V DC/Max.300mA

Service life

5-10 million times

Motor No-Load Speed

3000r/mine

Machine Case Thickness/Surface Treatment

2.0mm steel plate/outdoor e;ectrostatic powder spraying

Driving Metgod

Servo Motor + Planetary Reducer

Protection Level

IP54

Operating Temperature/Relative Humidity

-40~+80℃ /≤90%

Running Noise

<50DB



Our service
Welcome OEM&ODM orders:

1. Logo printing on products;
2. Customized color box or carton;
3. Any your ideas on products we can help you to design and put it into production.
