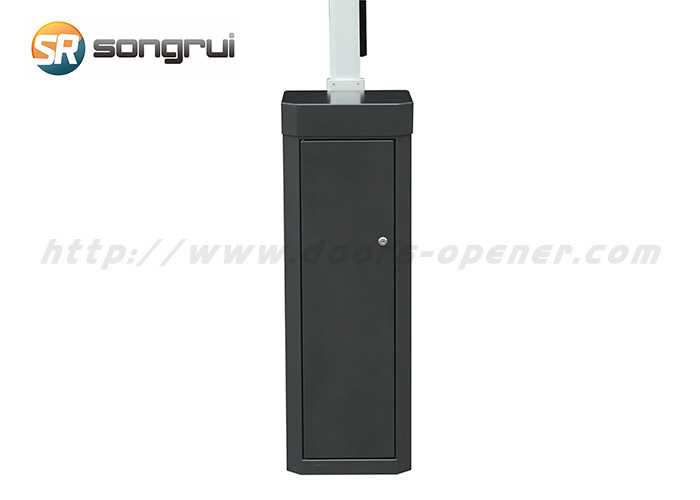

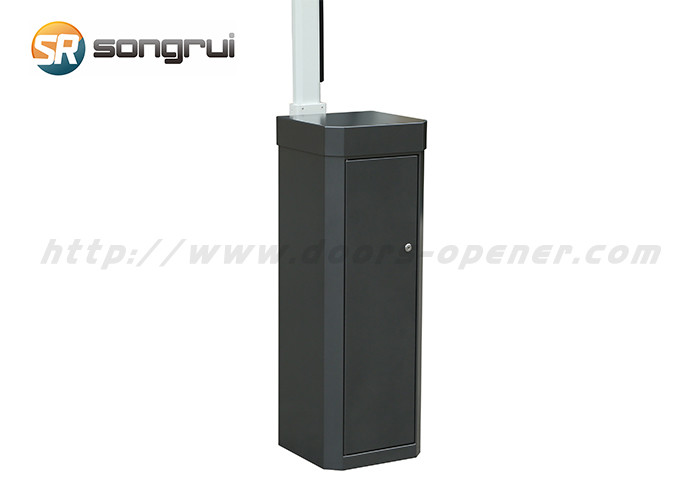

Servo Barrier Gate Boom Barrier With Access Control
With the continuous development of the automobile industry and the increasing number of vehicles, the demand for the gate is also increasing, and the performance of the gate is also put forward higher requirements. Such as gate integrated movement, clutch device, intelligent anti lift function, resistance return device, heating function (to ensure the use of minus 40 degrees), ventilation cooling system (to reduce the motor temperature in time), automatic clutch device, anti-collision rod device, etc. The rod's take-off and landing speeds range from 0.8 seconds to 6 seconds. The length of the pole is 0-7m, which depends on the actual width of the channel on site. In order to meet the market demand for products, the gate has become a key Lane equipment in the parking lot system management.
Features:
1. Efficient Servo Motor
Low power high output, energy conservation and environmental friendly. The output is 100W;
2. Efficient and precise planetary reducer drive
Equipped with the same planetary reducer as industrial robots and industrial automation equipment—double planetary reducer.
3. Advanced servo controlling system
Grasped core technology, with fast speed and high accuracy, it genuinely realized the PID closed loop control between running speed and acceleration.
4. High Security
Automatically lifting when power off, which complies with the fire safety requirements. Anti-collision protection function.
Auto-Reverse or Auto-Stop function when hitting obstacles.
5. Five “without” design
Without position sensor;without shock absorption rubber brick; without clutch device, automatically lifting when power off, or can be set barrier arm lifted manually; without keyway design, no more worries about hidden danger by the gap between key and keyway and the lever jitter problem; without brake design, no more worries about problem caused by brake wear and the resulting reliability problem.6.
6. All-weather adaptability
Excellent weather ability index, working temperature from -40℃to 80℃. All- weather working, no matter in freezing cold winter or in scorching heat summer.
7. Backup battery
Optional connect with DC24V backup battery, compatible with solar system, wind power generation, moveable work anywhere anytime.
Product Specification:
|
Servo Barrier Gate |
BG2506 |
BG3009 |
BG4014 |
BG5025 |
BG6035 |
|
Boom Length/Sectional Size |
≤2.5m/φ75mm |
≤3.0m/φ75mm OctagonalBar 80*46mm |
≤4.0 m/φ75mm OctagonalBar 80*46mm |
≤5.0m/φ75mm OctagonalBar 80*46mm |
≤6.0m/φ75mm Octagonal Bar 80*46mm |
|
Open/Close time |
0.6s |
0.9s |
1.4s |
2.5s |
3.5s |
|
Power |
150W |
100W |
|||
|
Max power Consumption(Operating) |
|||||
|
Max Power Consumption(Standby) |
8W |
||||
|
Power Supply |
AC110-264V/47-63HZ |
||||
|
Control Voltage |
24V DC/Max.300mA |
||||
|
Service life |
5-10 million times |
||||
|
Motor No-Load Speed |
3000r/mine |
||||
|
Machine Case Thickness/Surface Treatment |
2.0mm steel plate/outdoor e;ectrostatic powder spraying |
||||
|
Driving Metgod |
Servo Motor + Planetary Reducer |
||||
|
Protection Level |
IP54 |
||||
|
Operating Temperature/Relative Humidity |
-40~+80℃ /≤90% |
||||
|
Running Noise |
<50DB |
||||
