Efficient Automatic IP54 Boom Barrier Gate , 8W Parking Barrier Gate System

50 SETS
MOQ
Negotiable
Price
Efficient Automatic IP54 Boom Barrier Gate , 8W Parking Barrier Gate System
Features Gallery Product Description Request A Quote
Features
Specifications
Power Supply: AC110V-264V/47-63HZ
Motor Power: 100W
Max.Power Consumption(Operating): 100W
Max.Power Consumption(Standby): 8W
Control Voltage: 24VDC/max.300mA
Service Life: 5-10 Million Times
Motor Speed: 0.9-2.5secs Adjustable
Motor Speed Without Load: 3000r/min
Driving Method: Servo Motor+Planetary Reducer
Protection :Level: IP54
High Light:

IP54 Boom Barrier Gate

,

100W Boom Barrier Gate

,

parking barrier gate system

Basic Infomation
Place of Origin: China
Brand Name: SONGRUI
Certification: CE
Model Number: BG3009
Payment & Shipping Terms
Delivery Time: 5-8 WORK DAYS
Payment Terms: T/T
Product Description

Efficient Servo Automatic Boom Barrier Gate Motor
The most important part of the gate is the movement. As the core part of the gate, it must be well maintained. Cut off the power supply to clean the dust on the surface, add oil and lubricate the transmission part, check whether the screws of the fastening part are loose, check the wear condition of easily worn parts, replace the parts whose wear degree exceeds the specified requirements, and check whether the positioning arm and positioning plate are loose If the clearance exceeds 3mm, it shall be replaced in time.

Features:

1. Efficient Servo Motor
Low power high output, energy conservation and environmental friendly. The output is 100W;
2. Efficient and precise planetary reducer drive
Equipped with the same planetary reducer as industrial robots and industrial automation equipment—double planetary reducer.
3. Advanced servo controlling system
Grasped core technology, with fast speed and high accuracy, it genuinely realized the PID closed loop control between running speed and acceleration.
4. High Security
Automatically lifting when power off, which complies with the fire safety requirements. Anti-collision protection function.
Auto-Reverse or Auto-Stop function when hitting obstacles.
5. Five “without” design
Without position sensor;without shock absorption rubber brick; without clutch device, automatically lifting when power off, or can be set barrier arm lifted manually; without keyway design, no more worries about hidden danger by the gap between key and keyway and the lever jitter problem; without brake design, no more worries about problem caused by brake wear and the resulting reliability problem.6.
6. All-weather adaptability
Excellent weather ability index, working temperature from -40℃to 80℃. All- weather working, no matter in freezing cold winter or in scorching heat summer.
7. Backup battery
Optional connect with DC24V backup battery, compatible with solar system, wind power generation, moveable work anywhere anytime.



Product Specification:

Unit Model

BG3009

BG4014

BG5025

BG6035

Boom Length/Sectional Size

≤3.5m/ø75mm
Octagonal Bar

≤4.0m/ø75mm
Octagonal Bar

≤5.0m/ø75mm
Octagonal Bar

≤6.0m/ø75mm
Octagonal Bar

Open/close Time

0.9 sec

1.4 sec

2.5 sec

3.5 sec

Power

100W

Power Supply

AC110-264V / 47-63Hz

Motor No-load Speed

3000r/min

Service Life

5-10 million times

Driving Method

Servo Motor + Planetary Reducer

Protection Level

IP54

Operating Temperature

-40℃~80℃
(temperature under -20℃should be equipped with electric heating plate)

Running Noise

≤50dB

Gross Weight

51KG



Our service:
Welcome OEM&ODM orders

1. Logo printing on products;
2. Customized color box or carton;
3. Any your ideas on products we can help you to design and put it into production.

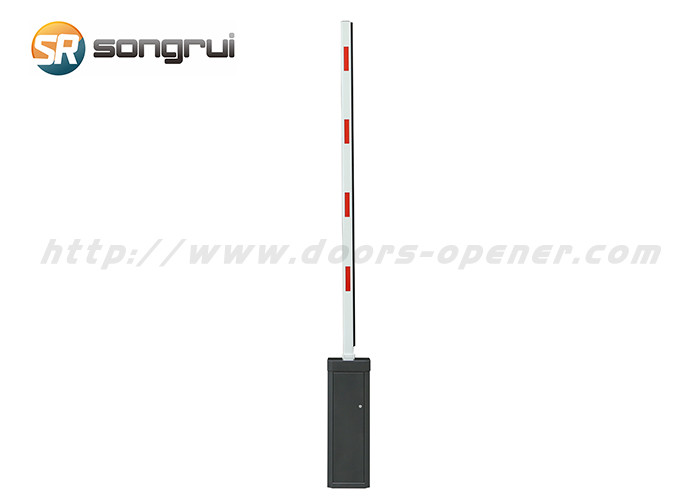

Efficient Automatic IP54 Boom Barrier Gate , 8W Parking Barrier Gate System 0

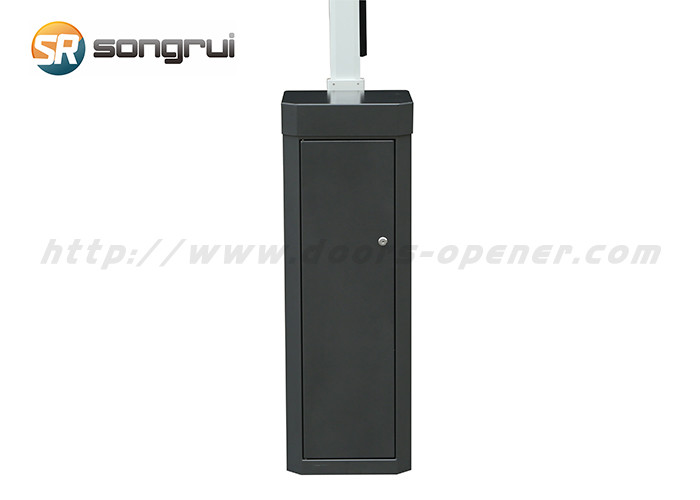

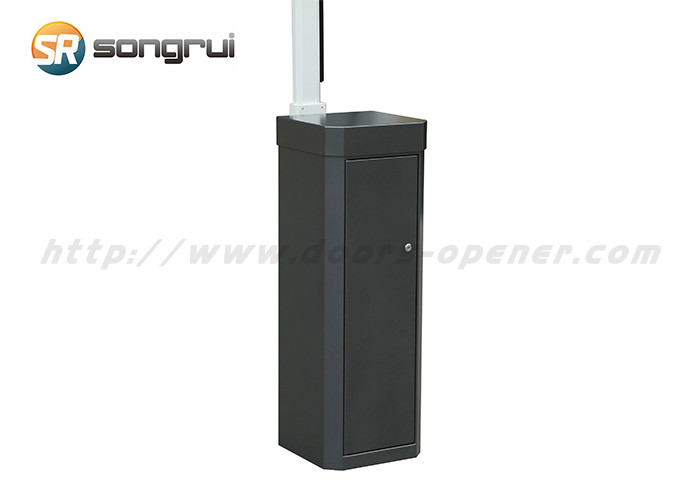

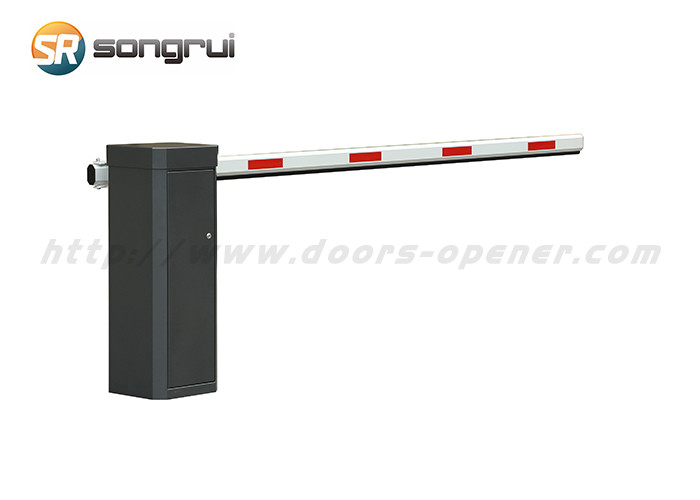

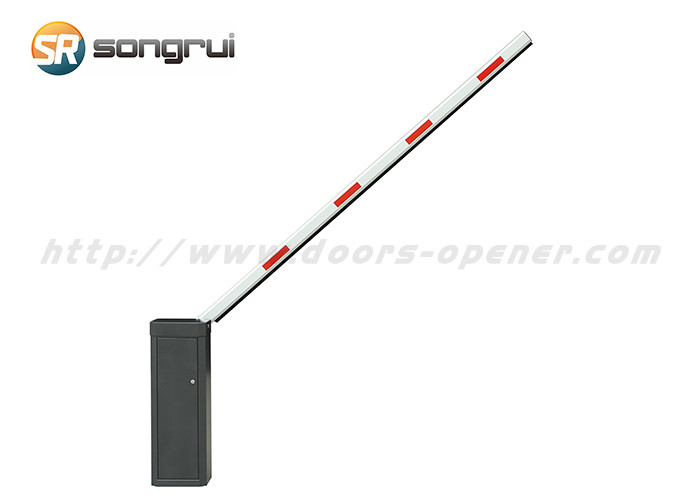

Efficient Automatic IP54 Boom Barrier Gate , 8W Parking Barrier Gate System 1Efficient Automatic IP54 Boom Barrier Gate , 8W Parking Barrier Gate System 2Efficient Automatic IP54 Boom Barrier Gate , 8W Parking Barrier Gate System 3Efficient Automatic IP54 Boom Barrier Gate , 8W Parking Barrier Gate System 4Efficient Automatic IP54 Boom Barrier Gate , 8W Parking Barrier Gate System 5
