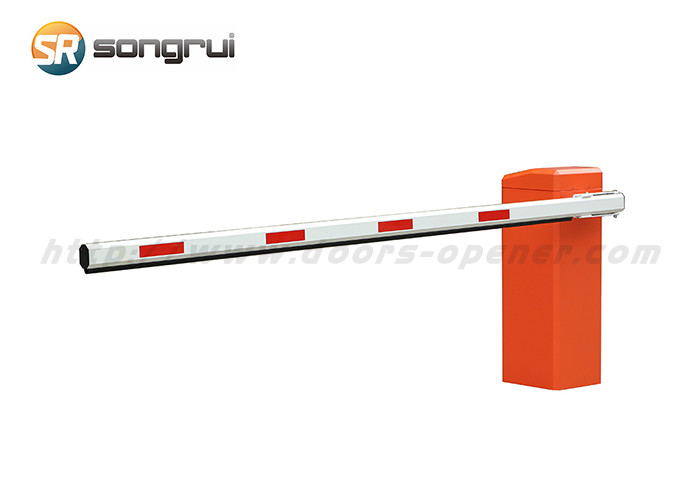

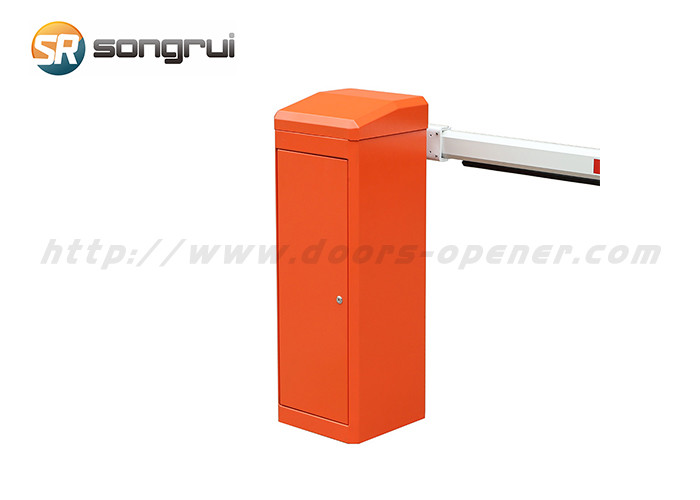

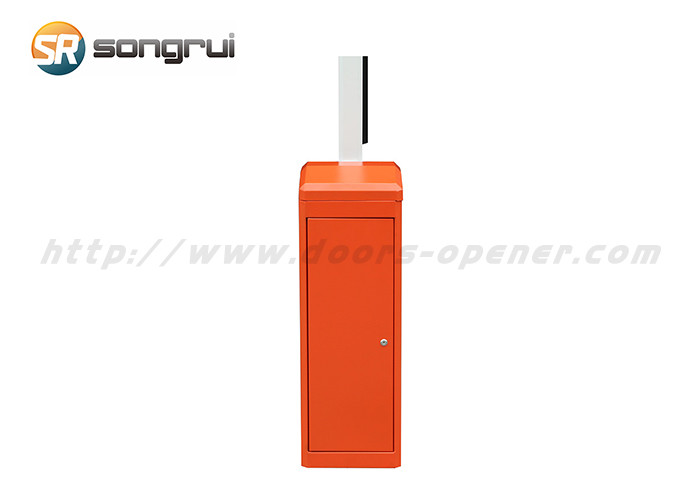

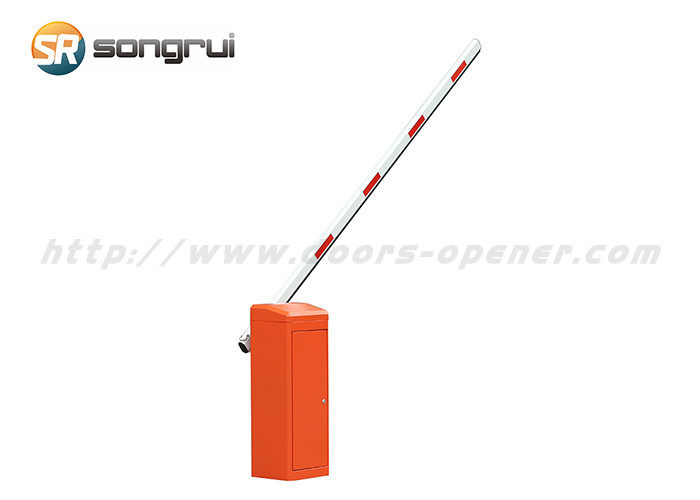

Orange BLDC Security Barrier Gate , 220V Traffic Barrier Gate

Orange BLDC Security Barrier Gate , 220V Traffic Barrier Gate
Features Gallery Product Description Request A Quote
Color: Orange
Application: Highway Toll/Parking Lots/Parking System
Power Supply: 220V/AC 110V/AC 50/60Hz
Noise: <=45db
Motor Type: DC Motor
Weight: 45KG
Remote Control Distancen: >=30 M
High Light:

220VAC Security Barrier Gate


110VAC Security Barrier Gate


6M traffic barrier gate

Basic Infomation
Place of Origin: China
Brand Name: SONGRUI
Certification: CE
Model Number: BC6050
Payment & Shipping Terms
Delivery Time: 5-8 WORK DAYS
Payment Terms: T/T
Product Description

BLDC Barrier Gate Traffic Road Security Barrier Gate

With the rapid increase of the number of cars, people's demand for the parking lot gate is more and more. The gate plays a very important role in the parking lot system. Once the gate can't work normally, the whole parking lot management system can't work normally, so regular maintenance of the parking lot gate can extend the service life of the parking lot system.



1. It adopts DC brushless motor, 24V safe working voltage, which breaks the traditinal 220V power supply mode.Safer operation, lower noise, frequently use with low heating, motor power 140W, energy saving and environmental protection.

2. Integrated movement, through small volume, it's with strong energy, wall mounted installation, easy to assemble and disassemble.

3. The design for balance spring is with multiple wire diameters, long service time, durable and consistent.

4. The balance component adopts the opening deformation and holding method, which brings convenience to the exchange for left-side and right-side orientation.

5. It adopts four-bar linkage mechanism which makes the boomsoft start - slow stop operate quickly and steady without impact, effectively reducing bothboom jitter and motor load, prolonging the service life of the barrier gate.

6. Intelligently adjustable running speed(1.5s-6s) to realize intelligent variable speed,effectively reducing to boom jitter, meeting the requirements for different environment.

7. With auto-reverse function. the barrier boom will automatically open once after meeting obstacles to reduce the damage caused by the mistake during its closing process.

8. To activate the priority anti-smashing function, the barrier boom will perform the opening action as soon as the opening signal is received during its closing process.

9. The boom type which are aoolicable to this barrier gate can be octagonal boom/round boom/folding boom and fence boom etc.

10. Running times up to 5 million without failure.

Standard unit:

* gate barrier
* control unit
* 2pcs remote controls
* user manual
* bolts & nuts


Product Specification:

Unit Model BC3015 BC4020 BC5035 BC6050
Boom Length/Sectional Size


Octagonal Bar


Octagonal Bar


Octagonal Bar


Octagonal Bar

Open/close Time 1.5 sec 2.0 sec 3.5 sec 5.0 sec
Power 100W
Power Supply AC110-240V
Motor No-load Speed 1800r/min
Service Life 5 million times
Driving Method Brushless DC motor
Protection Level IP54
Operating Temperature


(temperature under -20℃should be equipped with electric heating plate)

Running Noise ≤50dB
Gross Weight 43 KG
