IP54 Automatic Boom Barrier Gate , 24VDC Car Park Boom Gate

50 SETS
MOQ
Negotiable
Price
IP54 Automatic Boom Barrier Gate , 24VDC Car Park Boom Gate
Features Gallery Product Description Request A Quote
Features
Specifications
Power Supply: C110V-264V/47-63HZ
Motor Power: 150W
Max.Power Consumption(Operating): 150W
Max.Power Consumption(Standby): 8W
Control Voltage: 24VDC/max.300mA
Service Life: 5-10 Million Times
Motor Speed: 0.9-2.5secs Adjustable
Motor Speed Without Load: 3000r/min
Driving Method: Servo Motor+Planetary Reducer
Protection :Level: IP54
High Light:

IP54 Automatic Boom Barrier Gate

,

8W Automatic Boom Barrier Gate

,

24VDC Car Park Boom Gate

Basic Infomation
Place of Origin: China
Brand Name: SONGRUI
Certification: CE
Model Number: BG2506
Payment & Shipping Terms
Delivery Time: 5-8 WORK DAYS
Payment Terms: T/T
Product Description

Automatic Traffic Car Parking Road Boom Barrier Gate Backup Battery

Road gate, also known as car stopper, is a kind of entrance and exit management equipment specially used to restrict the driving of motor vehicles on the road. Now it is widely used in highway toll station and parking lot system to manage vehicle access and vehicle access.

The electric gate can realize the landing lever by wireless remote control alone, and it can also implement the automatic management status through the parking lot management system (i.e. IC card management system). When entering the gate, it can pick up the card to release the vehicle, and when leaving the gate, it can automatically release the vehicle after charging the parking fee.



Features:

1. Efficient Servo Motor

Low power high output, energy conservation and environmental friendly. The output is 100W;

2. Efficient and precise planetary reducer drive

Equipped with the same planetary reducer as industrial robots and industrial automation equipment—double planetary reducer.

3. Advanced servo controlling system

Grasped core technology, with fast speed and high accuracy, it genuinely realized the PID closed loop control between running speed and acceleration.

4. High Security

Automatically lifting when power off, which complies with the fire safety requirements. Anti-collision protection function.

Auto-Reverse or Auto-Stop function when hitting obstacles.

5. Five “without” design

Without position sensor;without shock absorption rubber brick; without clutch device, automatically lifting when power off, or can be set barrier arm lifted manually; without keyway design, no more worries about hidden danger by the gap between key and keyway and the lever jitter problem; without brake design, no more worries about problem caused by brake wear and the resulting reliability problem.6.

6. All-weather adaptability

Excellent weather ability index, working temperature from -40℃to 80℃. All- weather working, no matter in freezing cold winter or in scorching heat summer.

7. Backup battery

Optional connect with DC24V backup battery, compatible with solar system, wind power generation, moveable work anywhere anytime.



Product Specification:

Servo Barrier Gate

BG2506

BG3009

BG4014

BG5025

BG6035

Boom Length/Sectional Size

≤2.5m/φ75mm

≤3.0m/φ75mm OctagonalBar 80*46mm

≤4.0 m/φ75mm OctagonalBar 80*46mm

≤5.0m/φ75mm OctagonalBar 80*46mm

≤6.0m/φ75mm Octagonal Bar 80*46mm

Open/Close time

0.6s

0.9s

1.4s

2.5s

3.5s

Power



150W

100W

Max power Consumption(Operating)

Max Power Consumption(Standby)

8W

Power Supply

AC110-264V/47-63HZ

Control Voltage

24V DC/Max.300mA

Service life

5-10 million times

Motor No-Load Speed

3000r/mine

Machine Case Thickness/Surface Treatment

2.0mm steel plate/outdoor e;ectrostatic powder spraying

Driving Metgod

Servo Motor + Planetary Reducer

Protection Level

IP54

Operating Temperature/Relative Humidity

-40~+80℃ /≤90%

Running Noise

<50DB



Our service:
Welcome OEM&ODM orders:

1. Logo printing on products;
2. Customized color box or carton;
3. Any your ideas on products we can help you to design and put it into production.

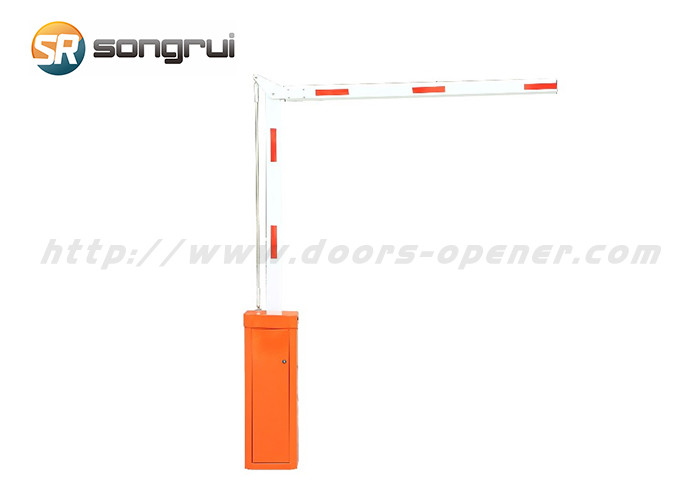

IP54 Automatic Boom Barrier Gate , 24VDC Car Park Boom Gate 0

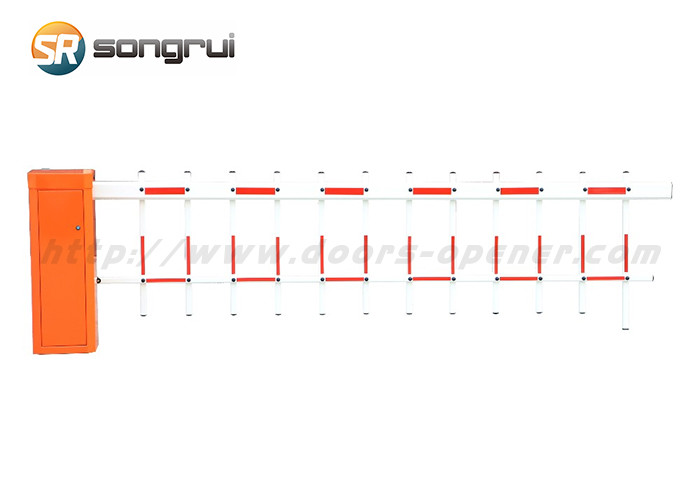

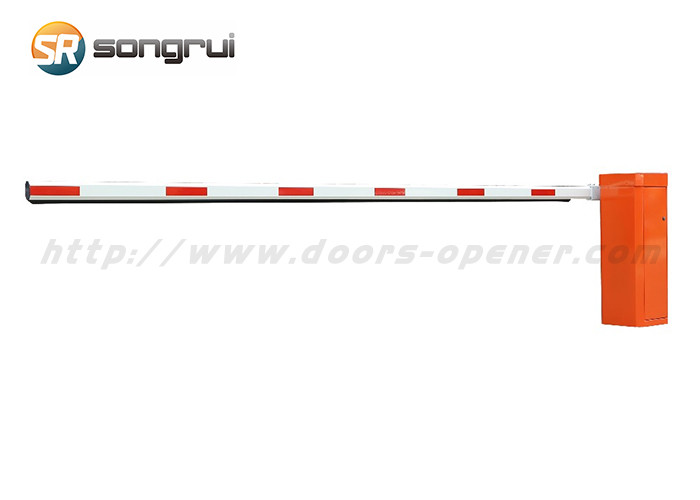

IP54 Automatic Boom Barrier Gate , 24VDC Car Park Boom Gate 1IP54 Automatic Boom Barrier Gate , 24VDC Car Park Boom Gate 2IP54 Automatic Boom Barrier Gate , 24VDC Car Park Boom Gate 3
