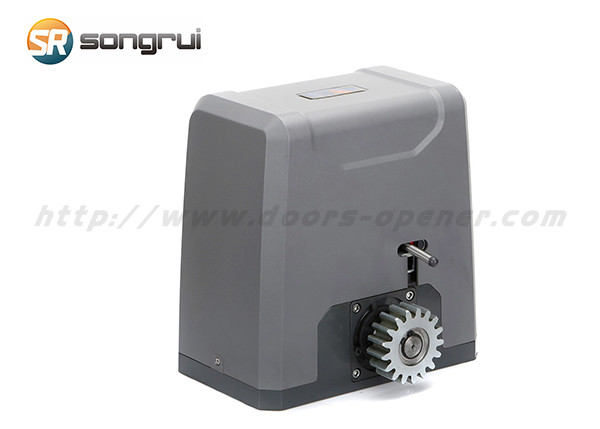

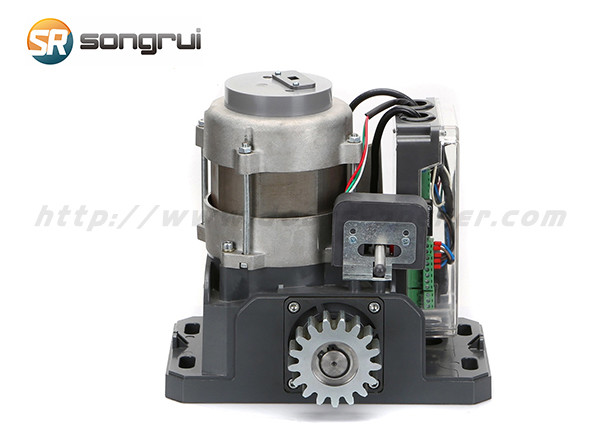

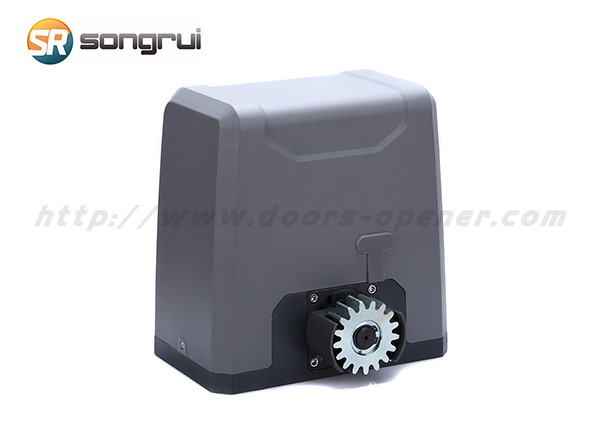

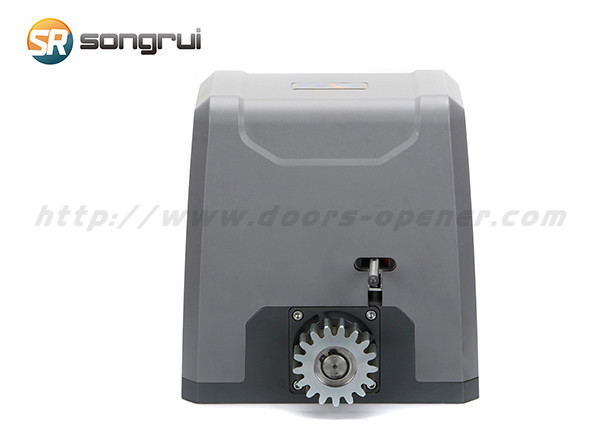

The SL1000AC gate opener designed for commercial and industrial use, weight up to 800/1000/1500/2000Kg and operating distance up to 12 meters.
Main Features:

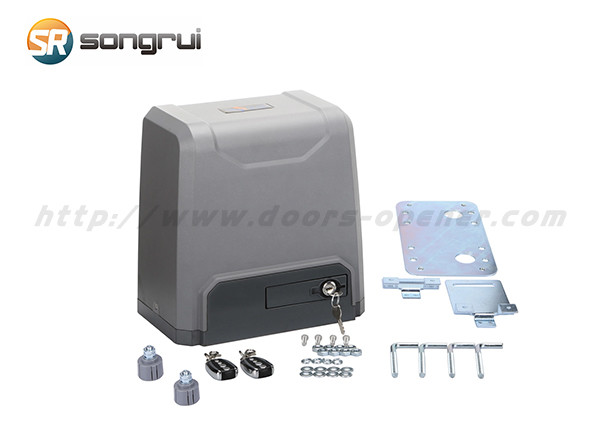

Standard unit:
Main technical parameters
| Unit Model | SL1000AC | SL1500AC |
| Power Supply | AC220V/50Hz; AC110V/60Hz | |
| Maximum Gate Weight | 1000kg | 1500kg |
| Motor Power | 400W | 550W |
| Output Torque | 22N.m | 32N.m |
| Output Shaft Height | 50mm | 50mm |
| Limit Switch | magnetic limit switch or spring limit switch | |
| Gate Moving Speed | 11-13m/min | |
| Remote Control Range | ≥30m | |
| Recording of Up Remotes | 25 | |
| Frequency | 433.92MHz | |
| Work Duty | S2 20min | |
| Noise | ≤58db | |
| Working Temperature | -20℃~+50℃ | |
| Driving Mode | Gear | |
| Package Weight | 15kg | 16kg |
