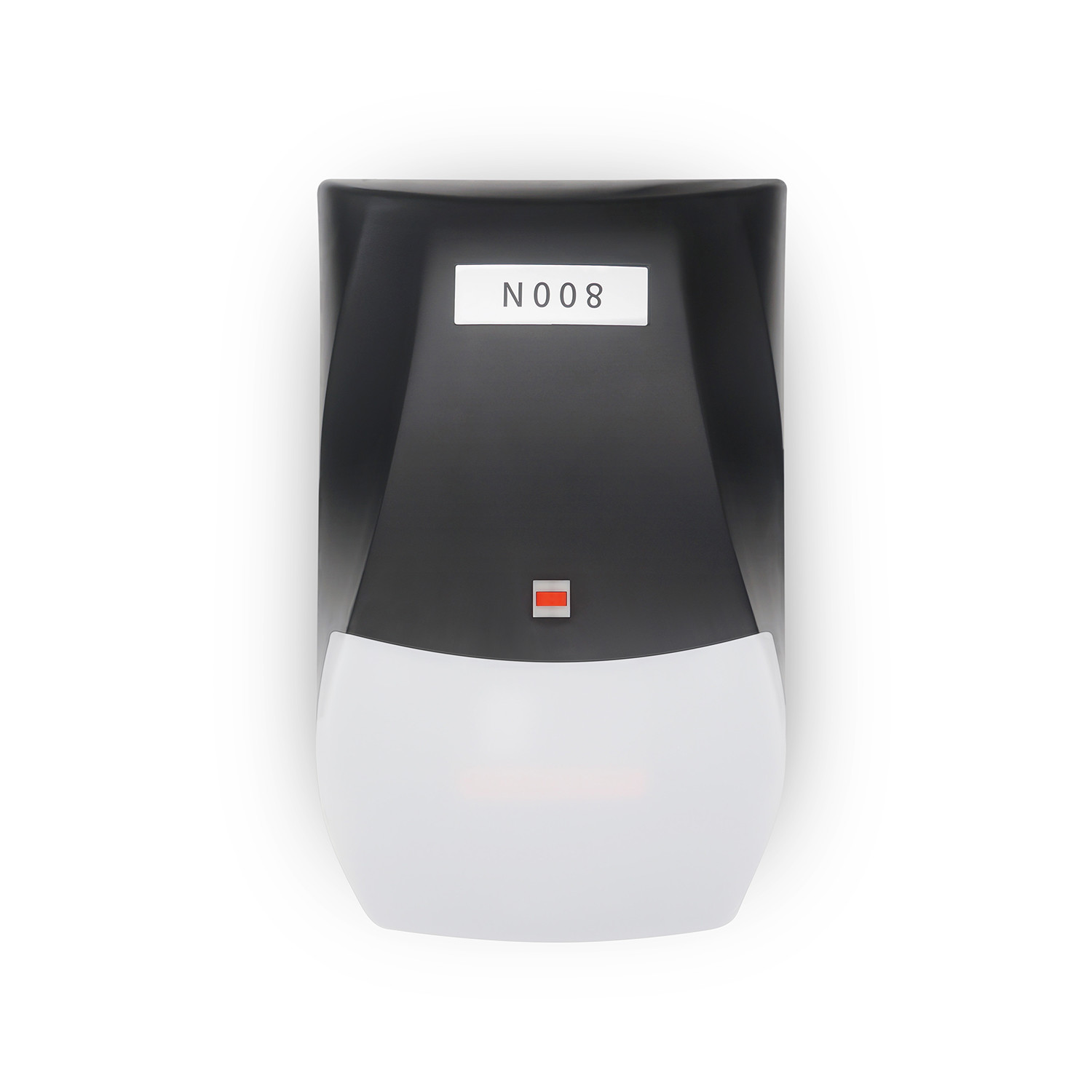

Pro Line 800F Battery Backup WiFi Garage Door Opener DC Motor Automatic Door Operator
Turnover garage door motor is widely used in household garage.
Key features:
| ·Soft start,soft stop | ·Connector for wall switch available |
| ·Electronic limit | ·Connector for photocell available |
| ·Overload force detecting | ·Connector for backup battery available |
| ·Fast automatic safety reverse | ·Connector for flash light as optional |
| ·Low-voltage protection | ·Connector for pass door protection as optional |
| ·Manual release in case of power failure | ·WIFI optional |
| ·Automatic closing available | ·O/S/C button |
Main technical parameters:
| Model | Pro Line 600F | Pro Line 800F | Pro Line 1000F | Pro Line 1200F |
| Input voltage | 220-240V AC,50/60Hz | 220-240V AC,50/60Hz | 220-240V AC,50/60Hz | 220-240V AC,50/60Hz |
| Power input | 200W | 235W | 245W | 260W |
| Max.pulling force | 600N | 800N | 1000N | 1200N |
| Lamp | LED | LED | LED | LED |
| Light time | 3 minutes | 3 minutes | 3 minutes | 3 minutes |
| Coding type | Rolling code | Rolling code | Rolling code | Rolling code |
| Radio frequency | 433.92 MHz or other on request | 433.92 MHz or other on request | 433.92 MHz or other on request | 433.92 MHz or other on request |
| Working temperature | -20℃- 40℃ | -20℃- 40℃ | -20℃- 40℃ | -20℃- 40℃ |
| Relative humidity | <90% | <90% | <90% | <90% |
| Max.door area | 10 | 12 | 14 | 16 |
| Remote capacity | 20 | 20 | 20 | 20 |
Our service:
Welcome OEM&ODM orders
1. Logo printing on products;
2. Customized color box or carton;
3. Any your ideas on products we can help you to design and put it into production.
