Three Phase High Speed Rolling Shutter Door Motor 1500W
he system is composed of: rare earth permanent magnet synchronous motor; tamakawa absolute encoder; power loss brake system; large inertia planetary reducer; manual release mechanism; fault manual device, etc.
Overload capacity is strong, in some high frequency occasions, the switch can work more than 2000 times a day.
High resolution absolute encoder with 2000 lines. Manual release mechanism is adopted.
Main Features:
1. Strong output torque, high effiency and low power consumption.
2. Frequency control unit, adjustable speed, max. to 2.0m/sec.
3. Frequency conversion motor by German technology.
4. The tin bronze worm gear box, no wear, lower noise.
5. Advanced brake systems, heat resistance grade F.
6. Action time fast, high frequency of use.
7. With high stability and reliability.
Standard Unit:

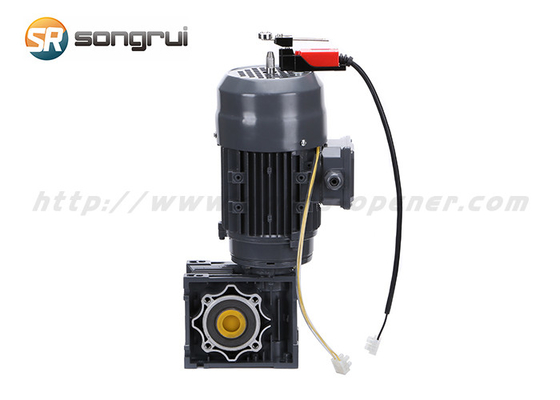

Gate Motor *1pc
Encoder*1pc

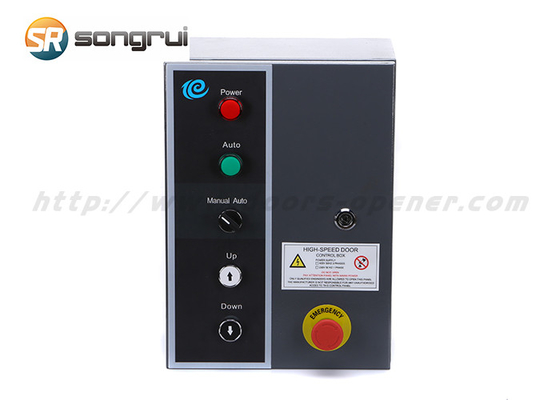

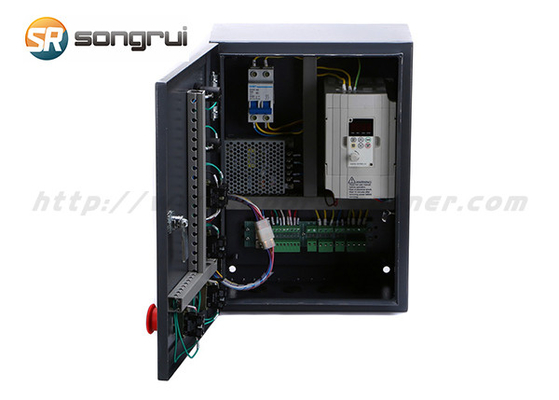

Control box with control board inside*1pc
Manual release spanner*1pc
Mechnical limit switch*1pc
User manual*1pc
Mounting bracket
Main technical parameters:
| Model | HSD750 | HSD750S | HSD1500 | HSD1500S |
| Motor protection class | IP54 | IP54 | IP54 | IP54 |
| Work duty | S3,25% | S3,25% | S3,25% | S3,25% |
| Controller protection class | IP65 | IP65 | IP65 | IP65 |
| Power supply | 220V,50Hz | 380V,50Hz | 220V,50Hz | 380V,50Hz |
| Motor power | 750W | 750W | 1500W | 1500W |
| Rated speed | 2800rpm | 2800rpm | 2800rpm | 2800rpm |
| Rated current | 4.2A | 2.6A | 6A | 3.7A |
| Standard reduction ratio | 20:1 | 20:1 | 20:1 | 20:1 |
| Max. door moving speed | 2m/s | 2m/s | 2m/s | 2m/s |
| Max. door surface | 15m2 | 30m2 | 25m2 | 50m2 |
| Frequency converter | 220V, 1.5KW | 380V, 1.5KW | 220V, 2.2KW | 380V, 2.2KW |
| Control voltage | DC24V | DC24V | DC24V | DC24V |
| Adjustable frequency | 0-100Hz | 0-100Hz | 0-100Hz | 0-100Hz |
| Absolute encoder | 64 cycles | 64 cycles | 64 cycles | 64 cycles |
| Release method | Hand crank | Hand crank | Hand crank | Hand crank |
| Environmental temperature | 20℃―+50℃ | 20℃―+50℃ | 20℃―+50℃ | 20℃―+50℃ |
| Motor size | 220X140X420 mm | 240X160X470 mm | ||
| Motor weight | 11.5Kg | 15Kg | ||
| Control box size | 390X280X180 mm | 390X280X180 mm | ||
| Control box weight | 9.25Kg | 9.25kg | ||
