High Speed Fabric Rolling Doors Rapid Roller Shutter Motor
Built in mechanical resonance suppression function, fast gate motor can effectively suppress the resonance phenomenon of mechanical structure.
Excellent high-speed reaction performance: speed response bandwidth of more than 500Hz. All models have built-in brake unit and brake resistor.
Main Features:
1. Frequency conversion motor by German technology.
2. Frequency control unit, adjustable speed, max. to 2.0m/sec.
3. Strong output torque, high effiency and low power consumption.
4. The tin bronze worm gear box, no wear, lower noise.
5. Advanced brake systems, heat resistance grade F.
6. Action time fast, high frequency of use.
7. With high stability and reliability.
Standard Unit:

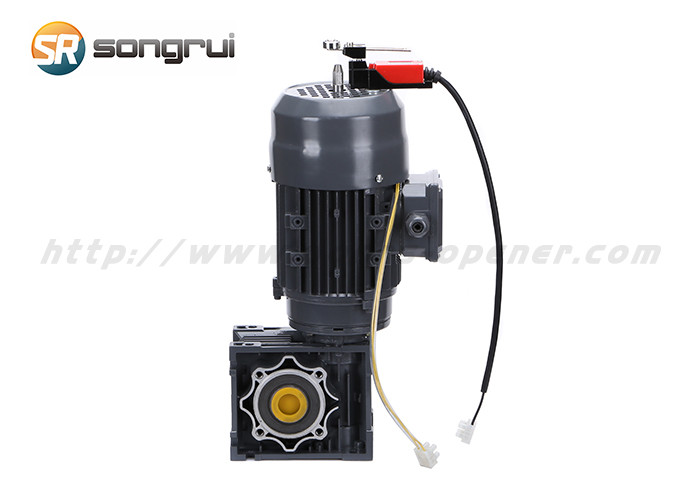

Gate Motor *1pc
Encoder*1pc

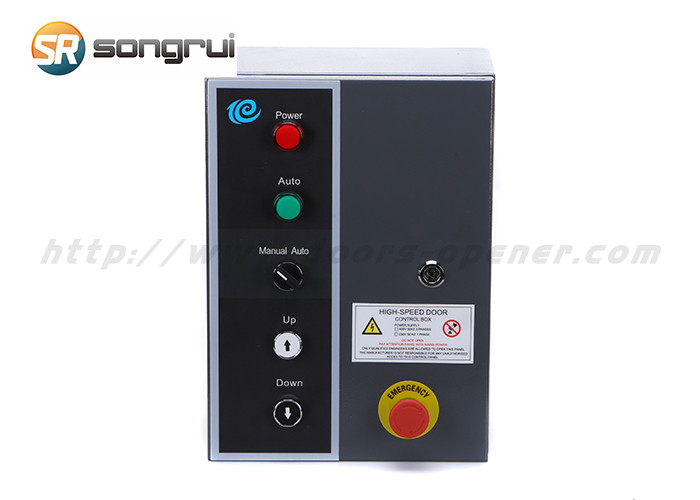

Control box with control board inside*1pc
Manual release spanner*1pc
Mechnical limit switch*1pc
User manual*1pc
Mounting bracket
Main technical parameters:
| Model | HSD750 | HSD750S | HSD1500 | HSD1500S |
| Motor protection class | IP54 | IP54 | IP54 | IP54 |
| Work duty | S3,25% | S3,25% | S3,25% | S3,25% |
| Controller protection class | IP65 | IP65 | IP65 | IP65 |
| Power supply | 220V,50Hz | 380V,50Hz | 220V,50Hz | 380V,50Hz |
| Motor power | 750W | 750W | 1500W | 1500W |
| Rated speed | 2800rpm | 2800rpm | 2800rpm | 2800rpm |
| Rated current | 4.2A | 2.6A | 6A | 3.7A |
| Standard reduction ratio | 20:1 | 20:1 | 20:1 | 20:1 |
| Max. door moving speed | 2m/s | 2m/s | 2m/s | 2m/s |
| Max. door surface | 15m2 | 30m2 | 25m2 | 50m2 |
| Frequency converter | 220V, 1.5KW | 380V, 1.5KW | 220V, 2.2KW | 380V, 2.2KW |
| Control voltage | DC24V | DC24V | DC24V | DC24V |
| Adjustable frequency | 0-100Hz | 0-100Hz | 0-100Hz | 0-100Hz |
| Absolute encoder | 64 cycles | 64 cycles | 64 cycles | 64 cycles |
| Release method | Hand crank | Hand crank | Hand crank | Hand crank |
| Environmental temperature | 20℃―+50℃ | 20℃―+50℃ | 20℃―+50℃ | 20℃―+50℃ |
| Motor size | 220X140X420 mm | 240X160X470 mm | ||
| Motor weight | 11.5Kg | 15Kg | ||
| Control box size | 390X280X180 mm | 390X280X180 mm | ||
| Control box weight | 9.25Kg | 9.25kg | ||
Our service:
1. Logo printing on products;
2. Customized color box or carton;
3. Any your ideas on products we can help you to design and put it into production.
