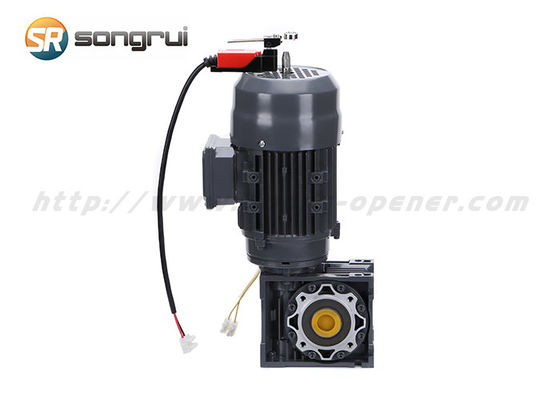

High speed fabric rolling doors rapid roller shutters HSD1500
The high speed rolling door motor and control unit are widely used for various types of high speed fabric & spiral door, included interior roll-up doors, exterior roll-up doors, cold storage doors, food processing doors, cleanroom doors and industry doors etc. They are the best solution for separating critical areas, control environments, improve working conditions, enhancing energy efficiency, control temperatures and high performance.
Main Features
1. Frequency conversion motor by German technology.
2. Frequency control unit, adjustable speed, max. to 2.0m/sec.
3. Strong output torque, high effiency and low power consumption.
4. The tin bronze worm gear box, no wear, lower noise.
5. Advanced brake systems, heat resistance grade F.
6. Action time fast, high frequency of use.
7. With high stability and reliability.
Standard Unit:
Main technical parameters:
| Model | HSD750 | HSD750S | HSD1500 | HSD1500S |
| Motor protection class | IP54 | IP54 | IP54 | IP54 |
| Work duty | S3,25% | S3,25% | S3,25% | S3,25% |
| Controller protection class | IP65 | IP65 | IP65 | IP65 |
| Power supply | 220V,50Hz | 380V,50Hz | 220V,50Hz | 380V,50Hz |
| Motor power | 750W | 750W | 1500W | 1500W |
| Rated speed | 2800rpm | 2800rpm | 2800rpm | 2800rpm |
| Rated current | 4.2A | 2.6A | 6A | 3.7A |
| Standard reduction ratio | 20:1 | 20:1 | 20:1 | 20:1 |
| Max. door moving speed | 2m/s | 2m/s | 2m/s | 2m/s |
| Max. door surface | 15m2 | 30m2 | 25m2 | 50m2 |
| Frequency converter | 220V, 1.5KW | 380V, 1.5KW | 220V, 2.2KW | 380V, 2.2KW |
| Control voltage | DC24V | DC24V | DC24V | DC24V |
| Adjustable frequency | 0-100Hz | 0-100Hz | 0-100Hz | 0-100Hz |
| Absolute encoder | 64 cycles | 64 cycles | 64 cycles | 64 cycles |
| Release method | Hand crank | Hand crank | Hand crank | Hand crank |
| Environmental temperature | 20℃―+50℃ | 20℃―+50℃ | 20℃―+50℃ | 20℃―+50℃ |
| Motor size | 220X140X420 mm | 240X160X470 mm | ||
| Motor weight | 11.5Kg | 15Kg | ||
| Control box size | 390X280X180 mm | 390X280X180 mm | ||
| Control box weight | 9.25Kg | 9.25kg | ||
