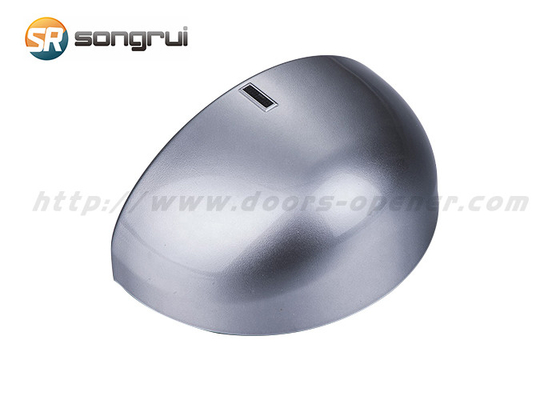

24GHz Active opening funtion Microwave motion sensor for Automatic sliding door Automatic swing door
Features:
1. Germany Innosent detecting chip, 24.125GHZ.
2. The detecing chip can be adjusted easily by special part.
3. Electric filter provide a good capacity of resisting disturbance from raining, wind, lighting and so on.
Specifications:
|
24GHz Active opening funtion Microwave motion sensor for Automatic sliding door Automatic swing door(YS104-BY)
|
|
|
Approval
|
CE & ISO9001
|
|
Realization technology
|
Microwave and microprocessor
|
|
Launch frequency
|
24.125GHZ
|
|
Launch power
|
<20 dBm EIRP
|
|
Launch frequency density
|
<5mW/cm2
|
|
Assemble an altitude maximal
|
3m
|
|
Assemble a dip angle
|
15° ,30° ,45° , 60°
|
|
The maximum checks range (while assembling 2.3 meters of altitude)
|
4m(W) x2m(H)
|
|
Checking pattern
|
Move
|
|
The minimum checks speed
|
5cm/s (Along the longitudinal axis of air wire to tests)
|
|
Power source voltage
|
12v-24v AC +/- 10%; 12v-36v DC
|
|
Power source frequency
|
50-60 HZ
|
|
Power dissipation
|
<2W(VA)
|
|
The relay outputs (there be no initial electric potential)
|
|
|
Maximal contact voltage
|
42V AC-60V DC
|
|
Maximal contact electric current
|
1A (Electric resistance)
|
|
The maximum change power
|
30W(DC) / 60VA(AC)
|
|
Output retention time
|
0.5 second
|
|
Temperature range
|
-20°C to +55°C
|
|
Protection rate
|
IP 52
|
|
Outer covering material
|
ABS Plastic
|
|
Outer covering color
|
Silver gray
|
|
External form dimension
|
200mm(W) x 40mm(H) x 55mm(D)
|
|
Weight
|
225g
|
|
Conducting wire length
|
2.5m
|
