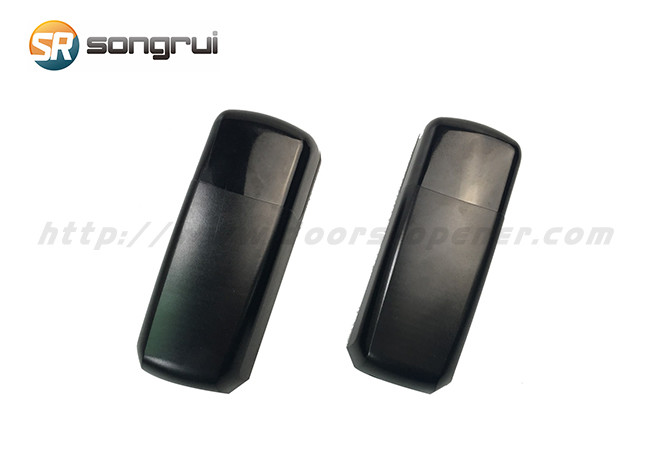

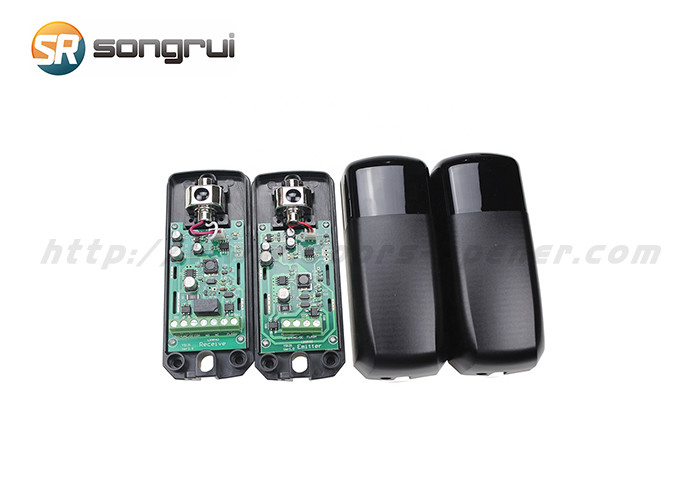

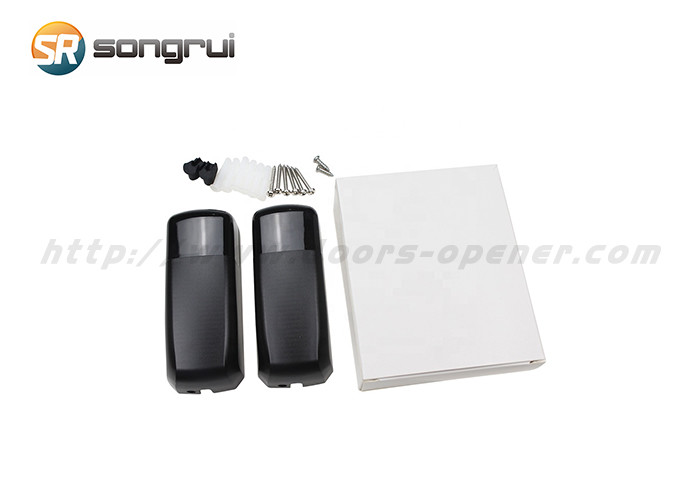

New Shape Waterproof IP 54 Photocell For Automatic Gate Opener
Features:
1. Small size design, easy installation.
2. Internal Rotation system.
3. IP54, can be installed outside.
4. Use rubber stopper between the mounting plate and the unit itself, waterproof is better.
Product Specification:
|
Competitive price and new shape waterproof IP 54 photocell for automatic gate opener(YS121)
|
|||
|
Approval
|
CE & ISO9001
|
||
|
Working voltage
|
12-24VAC/DC
|
||
|
Working current(24VDC)
|
emitter: ≤15mA receiver:≤30mA
|
||
|
Photocell wavelength
|
940nm
|
||
|
Angle of opposite emission
|
≤±5°
|
||
|
Receiver range
|
≥12m
|
||
|
Internal Rotation system
|
adjusted Angle: 0~180°
|
||
|
Working temperature
|
-20℃~+60℃
|
||
|
Relay contact loading capacity
|
1A/30VDC
|
||
|
Waterproof grade
|
IP54
|
||
|
Size
|
127*50*28mm
|
||
1. Logo printing on products;
2. Customized color box or carton;
3. Any your ideas on products we can help you to design and put it into production.
