Active Infrared Motion Sensor For Automatic Door

50 SETS
MOQ
Negotiable
Price
Active Infrared Motion Sensor For Automatic Door
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Infrared Sensor
Type: YS111
Power Supply: AC/DC 12-36V
Detecting Range: 1.5-2.5m
Working Temperature: -20 ℃ To +60 ℃, Deviate From Set Scan Area 60℃
Detecting Parts: 1 Piece Or 2 Pieces
Basic Infomation
Brand Name: SONGRUI
Model Number: YS111
Certification: CE
Place of Origin: China
Payment & Shipping Terms
Payment Terms: T/T
Supply Ability: 10000 Set/Sets per Month
Delivery Time: 5-8 WORK DAYS
Product Description

Active Infrared Motion Sensor For Automatic Door


Features:

1. It can detect the moving person or objects.
2. The quantity of detecting parts can be selected to suit different width of door wings.
3. Safe, beautiful, economic, comfortable.

Product Specification:

Active Infrared motion sensor for automatic door (YS111)
ApprovalCE & ISO9001
Scan area settingMechanical adjustment of wheels 500-2800mm, Triangle principle
Ambient temperature-20 ℃ to +60 ℃, Deviate from set scan area 60℃
Distinguish black/white

Max 20%
White:scan area is larger
Black:scan area is smaller,

The distinguish between black and white
according to scan area set

Detection area diameterAbout 75mm light spot, Apply in 2000mm scan area
Type of rayType of ray, 880nm pulse modulation infrared light
Operation voltageAC/DC 12-36V
Current consumption<100mA
Signal output

Relay,switch point
Highest alternating voltage 48V DC/AC

Highest alternating current 0.5A DC/AC
Highest alternating capacitance
volt-ampere/24watts


Electrical isolation
Rated current (resistive load) DC 1A/24V
Inductive load capacitive load Provide
EDM quenching
Resistive load

Detection response time ≤100ms
Operation modeMotion or standstill mode, self-adaption
Function IndicatorLED, Blue-standby, Red-detect
IPIP 52
Housing materialAL/ABS

Sensor dimension
(sensor for revolving

door)

750 *31 *20mm
900 *31 *20mm,

1200 *31 *20mm(optional)
(Length/Width/Hight)

Sensor dimension
(Motion light curtain

sensor)

620 *31 *20mm, (Length/Width/Hight)
Electromagnetic compatibility

Anti-interference abide by
EN61000-6-1,EN61000-6-2
Emission interference abide by
EN61000-6-3,EN61000-6-4


Anti-interference abide by
EN61000-6-1,EN61000-6-2
Emission interference abide by
EN61000-6-3,EN61000-6-4

Detecting parts1 piece or 2 pieces



Our service

Welcome OEM&ODM orders

1. Logo printing on products;
2. Customized color box or carton;
3.  Any your ideas on products we can help you to design and put it into production.

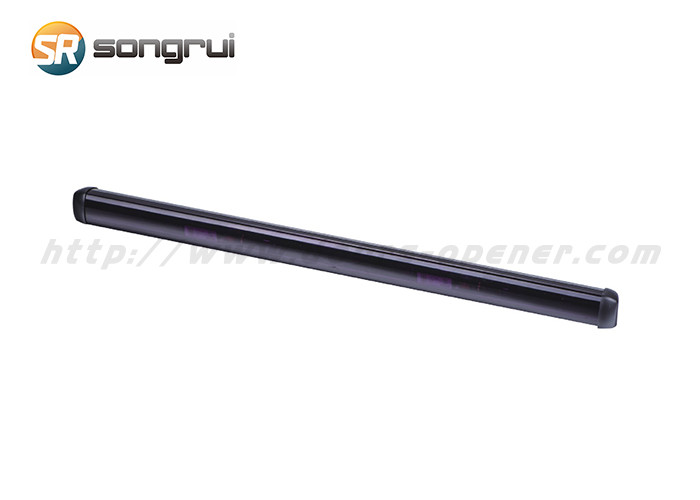

 Active Infrared Motion Sensor For Automatic Door 0
Active Infrared Motion Sensor For Automatic Door 1Active Infrared Motion Sensor For Automatic Door 2
