Double Type Photocell Infrared Radar Sensor Safety Beam For Automatic Door With Presence Function Operator Opener

50 SETS
MOQ
Negotiable
Price
Double Type Photocell Infrared Radar Sensor Safety Beam For Automatic Door With Presence Function Operator Opener
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Safety Beam Photocell Sensor
Type: YS116
Power Supply: AC/DC 12-~36V
Mounting Height:: Max 10m
Relay Output: NO,NC
Basic Infomation
Brand Name: SONGRUI
Model Number: YS116
Certification: CE
Place of Origin: China
Payment & Shipping Terms
Payment Terms: T/T
Supply Ability: 10000 Set/Sets per Month
Delivery Time: 5-8 WORK DAYS
Product Description

Double Type Photocell Infrared Radar Sensor Safety Beam For Automatic Door With Presence Function Operator Opener



Features:

1. It has N.C. and N.O. relay output, and can work with different type automatic controller.

2. The photocall's eye is made by special material to avoid the sunshine's affect.

3. The controller will alarm if the eyes having problem.

4. It can work with two pairs photocell's eyes.



Product Specification:

Double type photocell infrared radar sensor safety beam for automatic door with presence function operator opener(YS116)
Approval
CE & ISO9001
Power supply
AC/DC 12-36V
Static current
25mA
Action current
40mA
The maximum transmit distance
Max 10m
NO or NC contact
Done by NO./NC contact selection
Working environment temperature
-42℃ to 45℃
Working environment humidity
10 to 90%RH
Appearance dimensions( controller)
123*50*32mm(L*W*H)
Appearance dimensions(Magic eye head)
19*13mm(L*D)



Our service

Welcome OEM&ODM orders

1) Logo printing on products;
2) Customized color box or carton;
3) Any your ideas on products we can help you to design and put it into production.

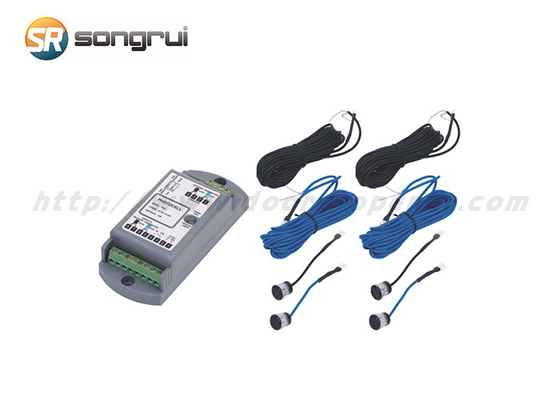

Double Type Photocell Infrared Radar Sensor Safety Beam For Automatic Door With Presence Function Operator Opener 0
