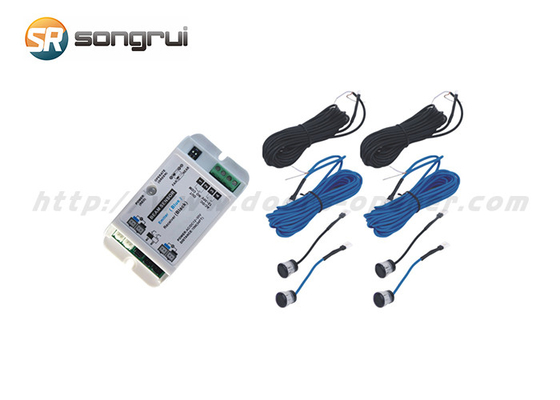

Double type photocell infrared radar sensor safty automatic door connect with plug-in presence infrared operator opener
Features:
1. It has N.C. and N.O. relay output, and can work with different type automatic controller.
2. The photocall's eye is made by special material to avoid the sunshine's affect.
3. The controller will alarm if the eyes having problem.
4. It can work with two pairs photocell's eyes.
Product Specification:
|
Double type photocell infrared radar sensor safty automatic door connect with plug-in presence infrared operator opener(YS130)
|
|
|
Approval
|
CE & ISO9001
|
|
Power supply
|
AC/DC 12-36V
|
|
Static current
|
25mA
|
|
Action current
|
40mA
|
|
The maximum transmit distance
|
Max 10m
|
|
NO or NC contact
|
Done by NO./NC contact selection
|
|
Working environment temperature
|
-42℃ to 45℃
|
|
Working environment humidity
|
10 to 90%RH
|
|
Appearance dimensions( controller)
|
123*50*32mm(L*W*H)
|
|
Appearance dimensions(Magic eye head)
|
19*13mm(L*D)
|
