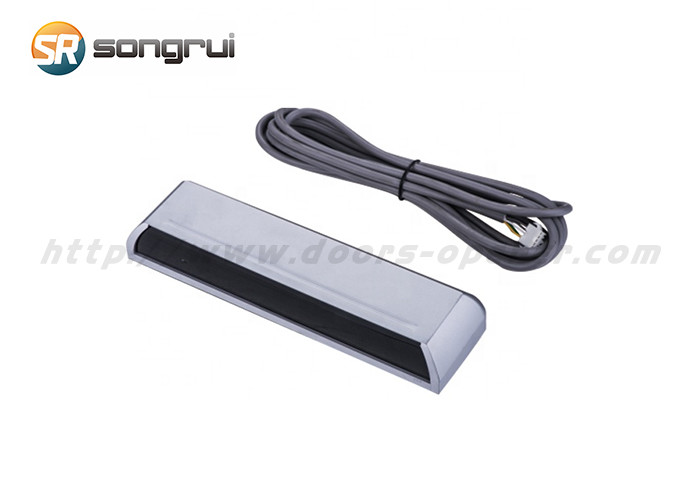

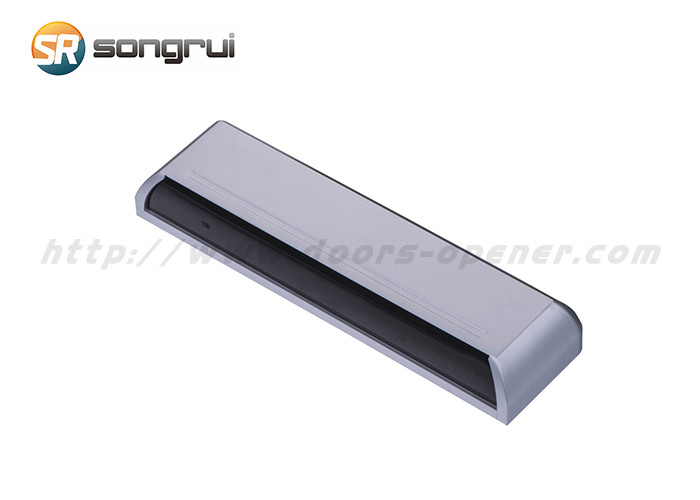

Anti-Pinch Motion Sensor For Automatic Door Opening Infrared Sensor
Product features:
1. Self-learning function make the installation more easier.
2. Self-recovery function can reduce the mis-detecting from sunshine, lighting, shaking.
3. Safe, beautiful, economic, comfortable.
Specifications:
|
Anti-pinch Infrared presence sensor for automatic door opening(YS107) |
|
|
Approval |
CE & ISO9001 |
|
Power Supply |
AC/DC 12 to 30V |
|
Current Draw |
160mA Max. (at 12V AC) |
|
Detect Method |
Active Infrared Reflection Method |
|
Detection Angle Adjustments |
±4° adjustable by 1° every one click(Deep/Shallow) |
|
Detection Width Adjustments |
±7° adjustable by 3.5° every one click(Right/Left) |
|
Opration Indicator |
Green / Stand-by Red / Doorside area detect Orange / Activation Area Detection |
|
Output |
"Form C" relay 50V 0.3A Max.(Resistance Load) |
|
Relay Hold Time |
0.5 sec. |
|
Response Time |
<0.3 sec. |
|
Operating Temperature |
-20 ℃ to +55 ℃(-4°F to + 131°F) |
|
Weight |
200g(7.1 oz) |
|
Accessories |
1 Cable 3m 2 Mounting Screws 1 Operation Manual 1 Mounting Template 1 Area Adjustment Tool |
|
Size |
220*64*30mm(L*W*H) |
Our service:
Welcome OEM&ODM orders
1. Logo printing on products;
2. Customized color box or carton;
3. Any your ideas on products we can help you to design and put it into production.
