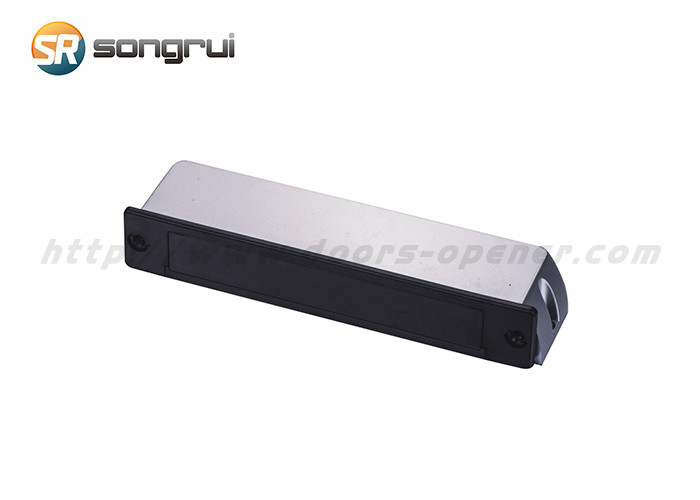

Anti-Pinch Infrared Motion Sensor For Automatic Door Opening
Product features:
1. Self-learning function make the installation more easier.
2. Self-recovery function can reduce the mis-detecting from sunshine, lighting, shaking.
3. Safe, beautiful, economic, comfortable.
Specifications:
Anti-pinch Infrared motion sensor for automatic door opening(YS110) | |
Approval | CE & ISO9001 |
Power output | AC / DC 12-30 V ( + / - 10% ) |
Type of ray | Infrared light modulation |
Photosource | Infrared 940 mm |
Light beam | 8 channel transmit, 8 channel receive |
Quiescent current | 35mA |
Working current | 73mA |
Self-learn time | 15s |
Operating display | Standby: blue LED,Detecting: red LED |
Temperature range | - 40℃ - 60℃ |
Maximum installation | 2.5m |
Maximum detection area | 2000(W) × 500(D)mm |
Hold-Up time | 500ms |
Response time | ≤ 100ms |
Changeover mode | High/ Low sensitivity and FA/FB adjustable |
Signal output | Relay,1 pair contact point optional |
IP | IP54 |
Mechanical behavior | Maximum |
Connection | 1 - 1.5 mm² 5 pin terminal |
Shell | ABS |
optical surface | PMMA |
Installation | Installation |
Weight | about 145g |
Dimension | Exposed 200(L)×49(W)×32(H)mm |
Conceal 152(L)×38(W)×25(H)mm | |
Our service:
Welcome OEM&ODM orders
1. Logo printing on products;
2. Customized color box or carton;
3. Any your ideas on products we can help you to design and put it into production.
