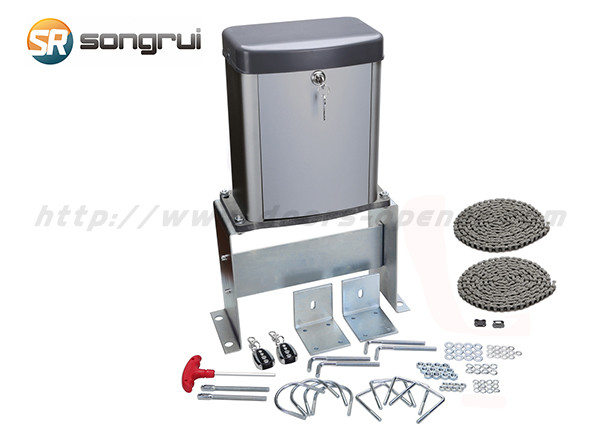

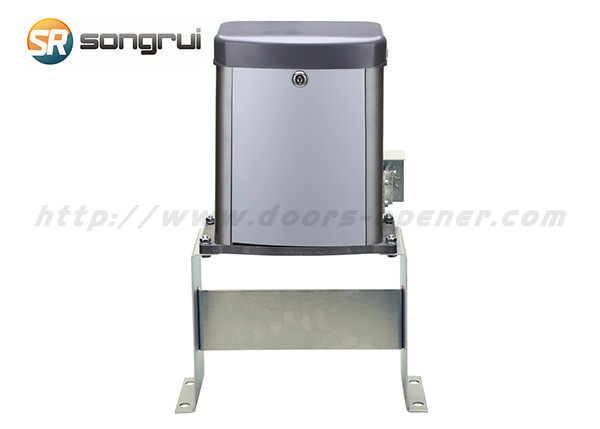

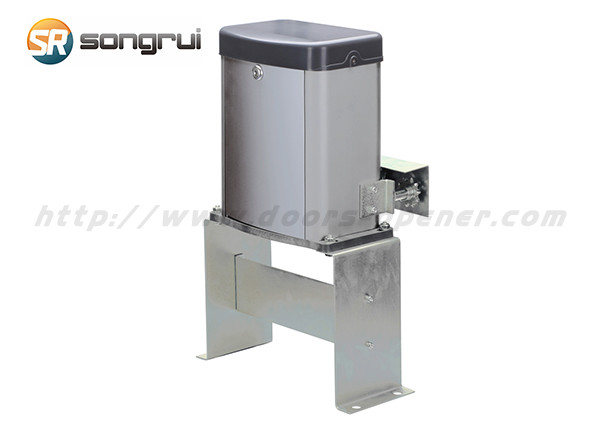

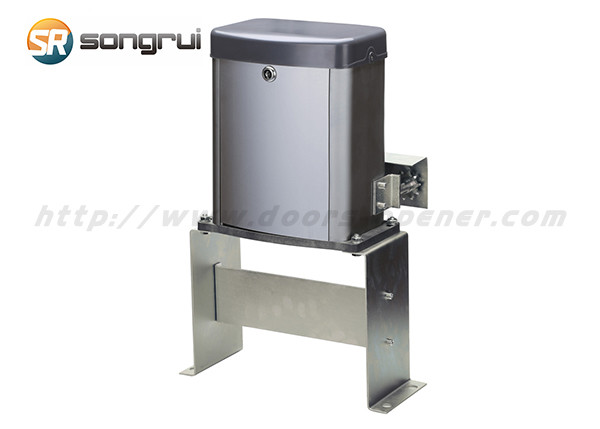

Sliding Gate Opener Automatic Door Operator Automation DC Motor Battery Waterproof 300KG PY300DCL
The gate opener designed for residential use, weight up to 300 Kg and operating distance up to 8 meters.
Product features:
* Built-in control board and 24V/4.5Ah backup battery.
* Intelligent charging system supplied.
* MCU is supplied to control the gate opener.
* Keypad / single button interface.
* Alarm lamp, Photo beam & safety beam interface.
* User can select auto-close function.
* Electronic limit switch and soft start & slow stop function.
* Manual key release design for emergency purposes.
* Automatic stop when hitting obstacle during opening, auto-reverse when hitting obstacle during closing.(Smart version)
* Soft start and slow stop. (Smart version)
* Solar System compatible
Main technical parameters:
|
Warranty
|
1 Year
|
|
After-sale Service
|
Online technical support
|
|
Project Solution Capability
|
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
|
|
Application
|
Apartment
|
|
Design Style
|
Modern
|
|
Model Number
|
PY300DCL
|
|
Model
|
PY300DCL
|
|
Power supply
|
AC220V/50Hz; AC110V/60Hz
|
|
Motor power
|
24VDC /100W
|
| Output Torque | 8N.m |
| Output Shaft Height | 46mm |
|
Gate moving speed
|
13m/min
|
|
Maximum weight of gate
|
300Kg
|
|
Remote control distance
|
≥30m
|
|
Limit switch
|
Electronic limit switch
|
| Recording of Up Remotes | 25 |
| Remaote Frequency | 433.92MHz |
| Work Duty | S2 30min |
|
Working temperature
|
-20°C ~ +70°C
|
| Working Noise | ≤60dB |
|
Storage battery
|
24V 4.5Ah
|
| Driving Mode | Chain |
|
Package weight
|
18.94Kg
|
