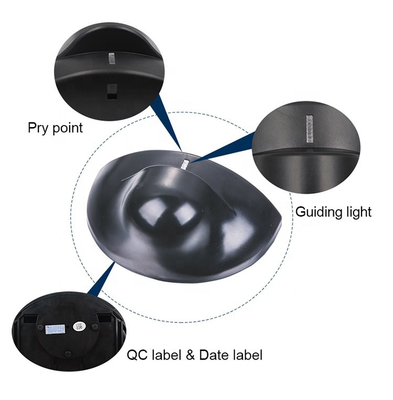

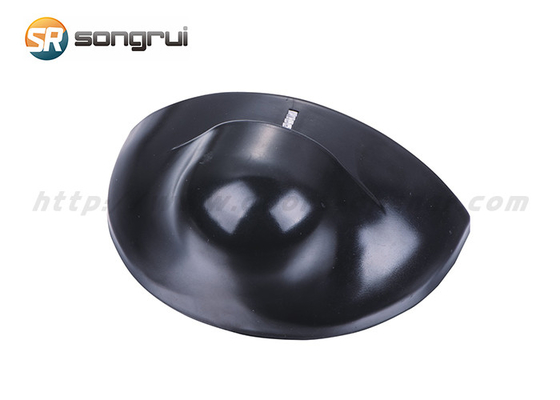

RTS Microwave Security Sensors Module Auto Sensor For Automatic Door Open
Features:
1. Taiwan detecting chip, 24.125GHZ;
2. Featured with high sensitivity,quick response and detetion accuracy to meet different kinds of autodoor requirements;
3. Electric filter provide a good capacity of resisting disturbance from raining, wind, lighting and so on.
Specifications:
|
Cheap universal speed distance radar motion position microwave sensor for automatic door open |
|
|
Approval |
CE & ISO9001 |
|
Lunch frequency |
24.125ghz |
|
Launch frequency density |
< 5mW/ cm ² |
|
Assemble a dip angle |
15°, 30°, 45°, 60° |
|
The maximum checks range (while assembling 2.2 meters of altitude)
|
4x2m (WxH) |
|
Checking pattern |
Move |
|
The minimum checks speed |
5cm/s (Along the longitudinal axis of air wire to tests) |
|
Power source voltage |
12V-24V AC(+/-10%), 12V-30V DC |
|
Power source frequency |
50-60HZ |
|
Power dissipation |
<2W (VA) |
|
The relay outputs(there be no initial electric potential) |
|
|
Maximal contact voltage |
42V AC-60V DC |
|
Maximal contact electric current |
1A(Electric resistance) |
|
The maximum change power |
30W(DC) / 60VA(AC) |
|
Output retention time |
0.5 second |
|
Temperature range |
-20℃~55℃ |
|
Outer covering material |
ABS Plastic |
|
Outer covering color |

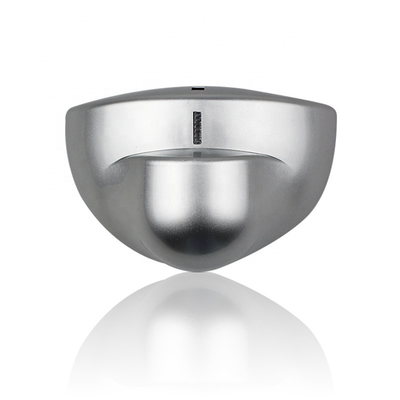

Black, Silver gray |
|
Conducting wire length |
2.5m |
|
External form dimension |
115x72mm (DxW) 48mm (Height) |
