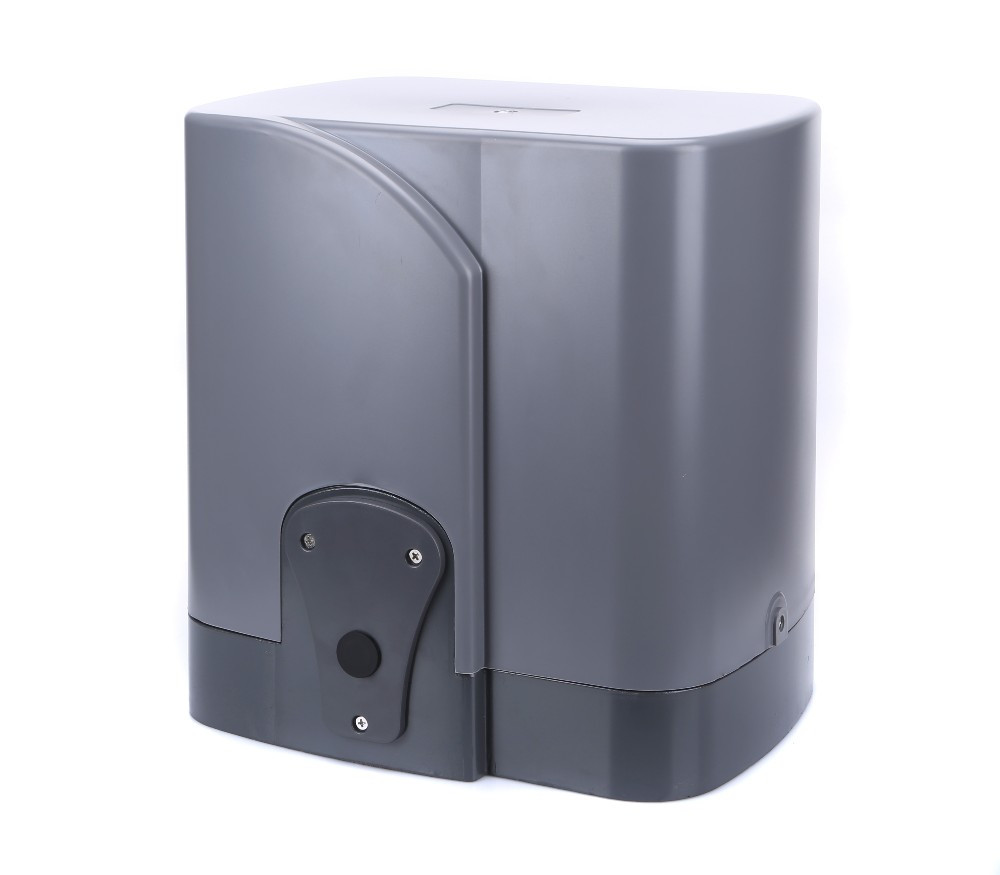

PY2000AC 600 Watt 380V Sliding Gate Opener Motor

50 SETS
MOQ
Negotiable
Price
PY2000AC 600 Watt 380V Sliding Gate Opener Motor
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: PY2000AC
Product Name: Sliding Gate Opener
Power Supply: 380V/50Hz
Motor Power: 600W
Gate Moving Speed: 10-13m/min
Maximum Weight: 2000Kg
Limit Switch: Spring Limit Switch / Magnetic Limit Switch
Remote Control Mode: Single Button Mode / Three Button Mode
High Light:

380V Sliding Gate Opener Motor

,

PY2000AC Sliding Gate Opener Motor

,

380V remote sliding gate opener

Basic Infomation
Place of Origin: China
Brand Name: SONGRUI
Certification: CE
Payment & Shipping Terms
Packaging Details: 340*290*373cm
Delivery Time: 5-8 WORK DAYS
Payment Terms: T/T
Supply Ability: 10000 Set/Sets per Month
Product Description



PY2000AC 600 Watt 380V Sliding Gate Opener Motor 0

Sliding Motor/ Sliding Door Operator/ Sliding Gate Motor 2000KG
Heavy duty door special motor, main user prison gate, military base gate. weight up to 2000Kg and operating distance up to 12 meters.

Product features:
* Oil lubrication, generous appearance, heavy duty.
* Compact strucretu, cost-effective.
* AC motor with built-in control unit.
* Keypad / single button interface.
* Alarm lamp, photo beam & safty beam interface.
* User can select auto-close function.
* Soft start and slow stop. (Smart version)
* Auto-reverse function when hitting obstacle during closing. (Smart version)
* Manual key release design for emergency purposes.



Main technical parameters:

Warranty
1 Year
After-sale Service
Online technical support
Project Solution Capability
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
Application
Apartment
Design Style
Modern
Model Number
PY2000AC
Model
PY2000AC
Power supply
AC110V/60Hz, AC220V/50Hz
Motor power
600W
Output Torque  36N.m
Output Shaft Height  56mm
Gate moving speed
10-13m/min
Maximum weight of gate
2000Kg
Remote control distance
≥30m
Recording of Up Remote   25
Remote Frequency   433.92NHz
Remote control mode
Single button mode / Three button mode
Limit switch
Spring limit switch / Magnetic limit switch
Work Duty   S2 20min
Working Noise   ≤58dB
Working temperature
-20°C ~ +50°C
  Driving Mode   Gear
Package weight
17.00Kg

PY2000AC 600 Watt 380V Sliding Gate Opener Motor 1PY2000AC 600 Watt 380V Sliding Gate Opener Motor 2PY2000AC 600 Watt 380V Sliding Gate Opener Motor 3
PY2000AC 600 Watt 380V Sliding Gate Opener Motor 4PY2000AC 600 Watt 380V Sliding Gate Opener Motor 5
