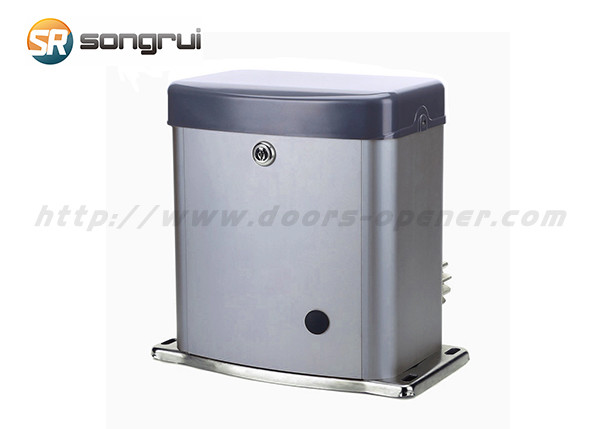

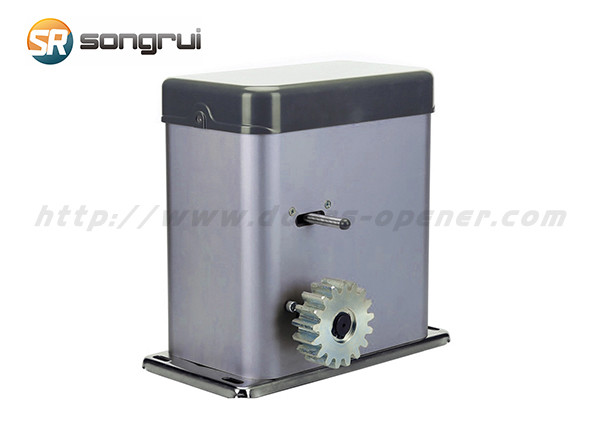

The DKC300DC gate opener designed for residential use, weight up to 300 Kg and operating distance up to 8 meters.
Detailed Product Description
Intelligent charging system supplied.
MCU is supplied to control the gate opener.

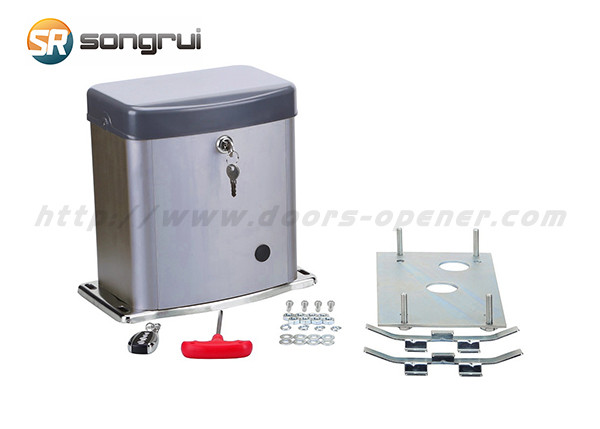

Standard Unit
Main Technical Parameters
| Unit Model | DKC300DC |
| Power Supply | AC 200V/50Hz; AC 110V/60Hz |
| Maximum Gate Weight | 300kg |
| Motor Power | 24VDC, 100W |
| Output Torque | 8N.m |
| Output Shaft Height | 46mm |
| Limit Switch | magnetic limit switch or spring limit switch |
| Gate Moving Speed | 13m/min |
| Remote Control Range | ≥30m |
| Recording of Up Remotes | 25 |
| Frequency | 433.92MHz |
| Work Duty | S2 30min |
| Noise | ≤60db |
| Working Temperature | -20℃~+50℃ |
| Backup Battery | Optional |
| Driving Mode | Gear |
| Package Weight | 8.50kg |
