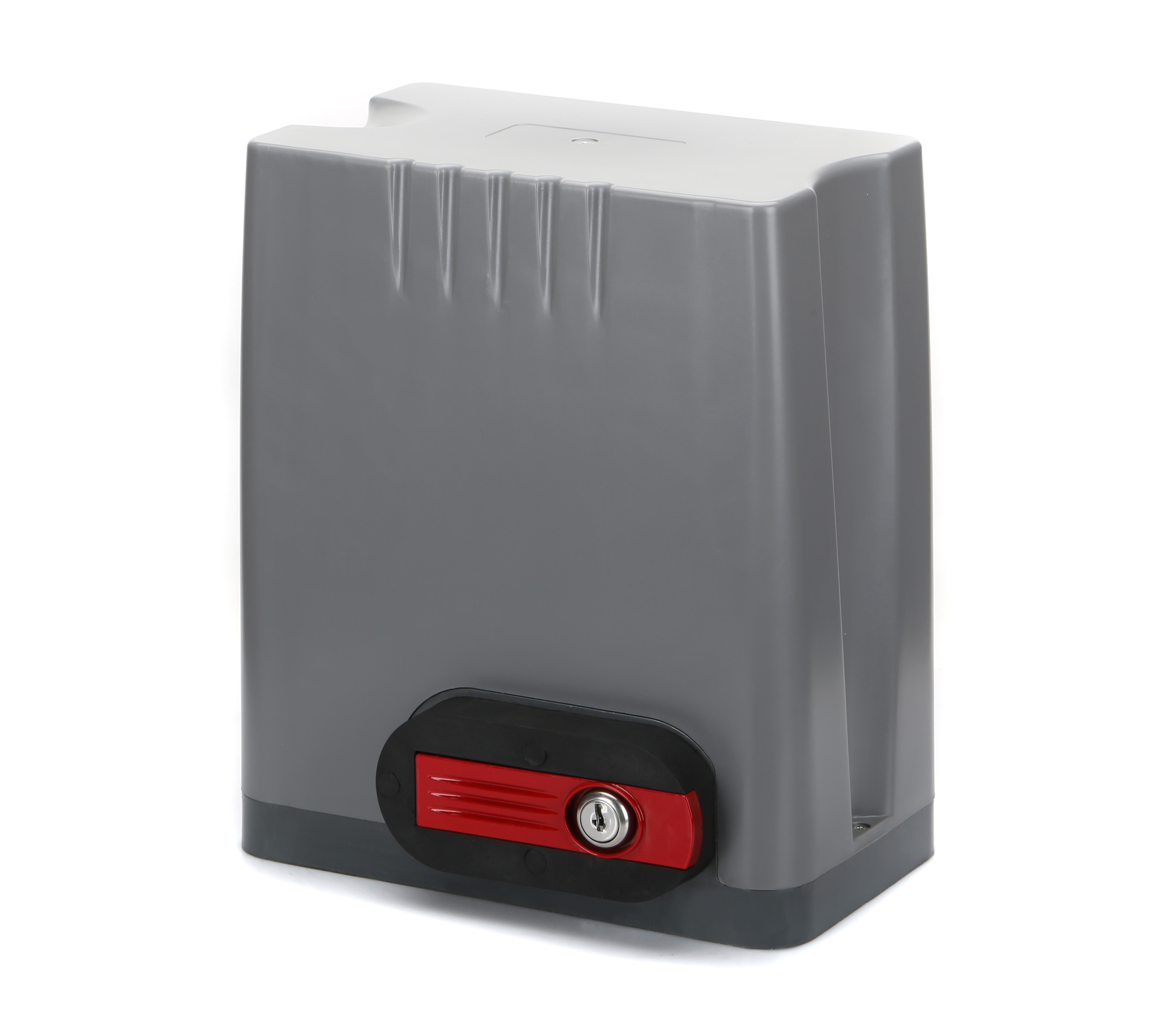

The DKC800AC gate opener designed for residential use, weight up to 800Kg and operating distance up to 8 meters.
Product features:
Standard Unit:
Main technical parameters:
|
Unit Model
|
DKC500DC
|
DKC800DC
|
DKC500AC
|
DKC800AC
|
|
Power supply
|
AC220V/50Hz; AC110V/60Hz
|
|||
|
Maximum gate weight
|
500KG
|
800KG
|
500KG
|
800KG
|
|
Motor Power
|
DC24V/150
|
DC24V/170
|
280W
|
380W
|
|
Output torque
|
14N.m
|
18N.m
|
14N.m
|
18N.m
|
| Output Shaft Height | 46mm | |||
|
Work duty
|
S2 20min
|
|||
|
Limit switch
|
Magnetic limit switch
|
Magnetic limit switch or spring limit switch | ||
|
Gate moving speed
|
11-13m/min
|
16-18m/min
|
13m/min
|
13m/min
|
|
Remote control range
|
≥30md
|
|||
|
recording of up remote controls
|
25
|
|||
|
Frequency
|
433.92MHz
|
|||
|
Noise
|
≤58db
|
|||
|
Working temperature
|
-20℃~+70℃
|
|||
|
Backup Battery
|
Optional
|
/
|
||
|
Driving Mode
|
Gear
|
Gear
|
Gear
|
Gear
|
|
Package Weight
|
11KG
|
11KG
|
||
