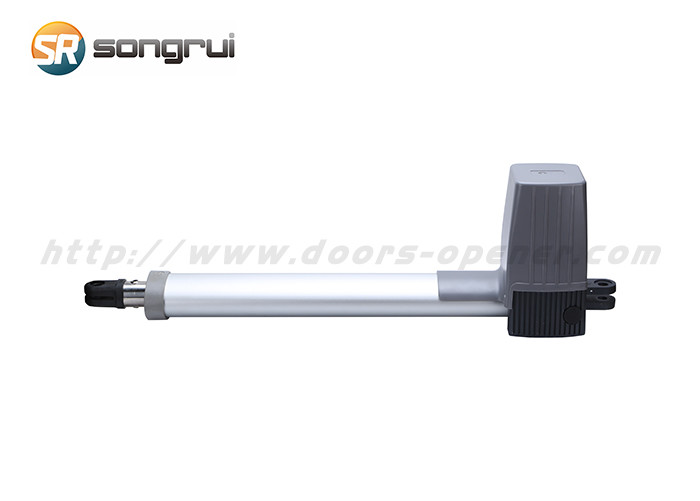

Solar Powered 24V DC Electric Swing Gate Motor

50 SETS
MOQ
Negotiable
Price
Solar Powered 24V DC Electric Swing Gate Motor
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Swing Gate Opener
Model Number: PK350DC
Max.single-leaf Weight: 300kg/leaf
Operating Voltage: DC24V
Driving Method: Screw Driven Piston Type
Safety Clutch: Electronic Current Sensing
Remote Control: 433.92MHz Rolling Code
Operating Cycle: 18 Seconds Per 90
High Light:

PK350DC Electric Swing Gate Motor

,

24VDC electric swing gate motors

,

300kg solar powered door opener

Basic Infomation
Brand Name: SONGRUI
Model Number: PK350DC
Certification: CE
Place of Origin: China
Payment & Shipping Terms
Payment Terms: T/T
Supply Ability: 10000 Set/Sets per Month
Delivery Time: 5-8 WORK DAYS
Product Description



Solar Powered 24V DC Electric Swing Gate Motor 0

Solar Powered 24V DC Electric Swing Gate Motor

Wifi remote automatic control DC swing gate opener electic gate motor operator. The PK350DC gate opener designed for residential courtyard swing gate use, gate leaf weight up to 300 Kg and width up to 3.0 m.The back-up battery and solar panel can be equipped with this flat door motor



Product features:

1. Soft start slow stop, automatic close, obstacle detection by automatic reversng.

2. Interface for GSM, infrared sensor, alarm light, wall button.

3. Back up battery is available.

4. Works with solar panel.

5. Shell material is aluminum, arm is stainless steel.

6. Separate control unit, easy to install.



Main technical parameters:

Type

PK350DC

Driving method

Screw driven piston type

Operating voltage

DC 24V for normal speed

Max. output power

70W per driver

Max. piston stroke

30 cm

Max. piston speed

1.5 cm / sec

Operating cycle

18 seconds per 90 (approx)

Max. single - leaft weight

300 kg per wing

Max. single - leaft length

3 m

DSPS device

Electronic timing tracker

Gearbox

Worm gear

Safety clutch

Electronic current sensing

Limit switch

Without

Back up battery

24V (4.5AH or 7 AH) (optional)

Satery barrier

Infared sensor (optional)

Mian supply

110V / 220V , 60 Hz / 50 Hz

Electronic controller

Microcompeter based

Remote controller

UHF Digital PWM type

Temperature

-20 ~ + 50 centi degree

Protection Class

IP54



Our service:

Welcome OEM&ODM orders

1. Logo printing on products;
2. Customized color box or carton;
3. Any your ideas on products we can help you to design and put it into production.

Solar Powered 24V DC Electric Swing Gate Motor 1Solar Powered 24V DC Electric Swing Gate Motor 2Solar Powered 24V DC Electric Swing Gate Motor 3

Solar Powered 24V DC Electric Swing Gate Motor 4Solar Powered 24V DC Electric Swing Gate Motor 5
