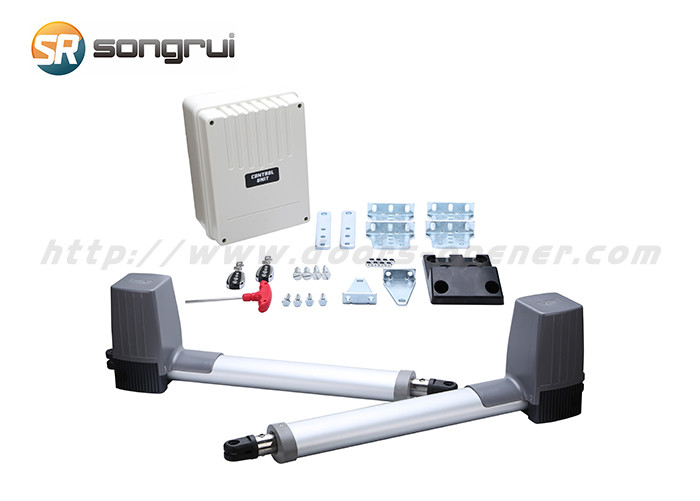

Automatic swing gate opener kit PK300DC weighting up 300KG double swing gates. The Linear Arm Automatic Swing Gate Opener is mainly used in the case of uneven ground and wide single door.
Product features:
* DC motor, compact structure, smooth operation and low noise.
* Optional for Stroke length 29 cm and 49 cm.
* Separately control box
* Keypad / single button interface.
* Alarm lamp, Photo beam & safety beam interface.
* User can select auto-close function.
* Installing the mechanical stops inside the opener to eliminate ground stops, possibility to use adjustable fixing limit block.
* Manual key release design for emergency purposes.
* Automatic stop when hitting obstacle during opening, auto-reverse when hitting obstacle during closing.
Main technical parameters:
| Unit Model | PK300DC | PK350DC |
| Power Supply | 220V,50Hz;110V,60Hz | |
| Max. Gate Weight | 300KG / Leaf | |
| Max. Gate Length | 2.5 m / Leaf | 3.0 m / Leaf |
| Motor Power | DC24V,80W | |
| Gate Moving Speed | 20 second per 90 angle | |
| Limit Switch | Stop Block | |
| Recording of up Remotes | 25 | |
| Decoding / Frequency | Rolling code / 433.92MHz | |
| Work Duty | S2 30min | |
| Noise | ≤60dB | |
| Work Temperature | -20°C~70°C | |
| Gross Weight | 16 KG | 19 KG |
