Automatic Remote Control Door Opener Sliding Door Opener For 1000kg Chain Driven

50 SETS
MOQ
Negotiable
Price
Automatic Remote Control Door Opener Sliding Door Opener For 1000kg Chain Driven
Features Gallery Product Description Request A Quote
Features
Specifications
Power Supply: 220V/50Hz;110V/60Hz
Motor Power: 280W
Gate Moving Speed: 11-13m/min
Maximum Weight: 600kg
Remote Control Distance: ≥30m
Limit Switch: Spring Limit Switch / Magnetic Limit Switch
Basic Infomation
Brand Name: SONGRUI
Model Number: SL1000ACL
Certification: CE
Place of Origin: China
Payment & Shipping Terms
Payment Terms: T/T
Supply Ability: 10000 Set/Sets per Month
Delivery Time: 5-8 WORK DAYS
Packaging Details: 340*290*373cm
Product Description



Automatic Remote Control Door Opener Sliding Door Opener For 1000kg Chain Driven 0

Automatic Remote Control Door Opener/Sliding Door Opener for 1000kg Chain Driven
Chain driven sliding gate opener is widely used in Europe and America.

Main Features:
1. AC motor with built-in control unit.
2. Keypad / single button interface.
3. Alarm lamp, photo beam & safty beam interface.
4. User can select auto-close function.
5. Soft start and slow stop. (Smart version)
6. Auto-reverse function when hitting obstacle during closing. (Smart version)
7. Manual key release design for emergency purposes.

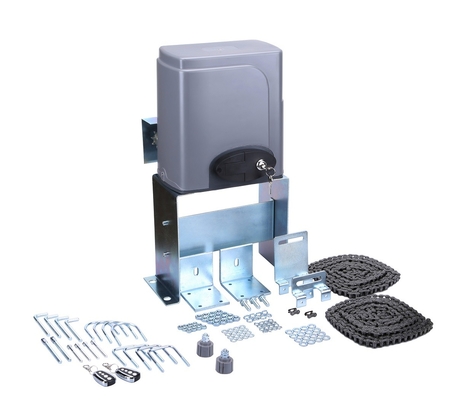

Standard unit:

  • SL1000ACL main engine 1PC
  • Control board 1SET
  • Remote control 2PCS
  • Manual release key 2PCS
  • Chain 20FT
  • User manual 1PC
Mounting accesories(unassembled baseplte,screws &nuts, limit switch blocks) 1SET


Main technical parameters:

Unit Model SL1000AC SL1000ACL SL1500AC SL1500ACL
Power Supply AC220V/50Hz; AC110V/60Hz
Maximum Gate Weight 1000kg 1500kg
Motor Power 400W 550W
Output Torque 22N.m 32N.m
Output Shaft Height 50mm
Limit Switch magnetic limit switch or spring limit switch
Gate Moving Speed 11-13m/min
Remote Control Range ≥30m
Recording of Up Remotes 25
Frequency 433.92MHz
Work Duty S2 15min
Noise ≤58db
Working Temperature -20℃~+50℃
Driving Mode Gear Chain Gear Chain
Package Weight 13kg 22.50kg 14kg 23.50kg



Our service:

Welcome OEM&ODM orders

1. Logo printing on products;
2. Customized color box or carton;
3. Any your ideas on products we can help you to design and put it into production.

Automatic Remote Control Door Opener Sliding Door Opener For 1000kg Chain Driven 1Automatic Remote Control Door Opener Sliding Door Opener For 1000kg Chain Driven 2Automatic Remote Control Door Opener Sliding Door Opener For 1000kg Chain Driven 3

Automatic Remote Control Door Opener Sliding Door Opener For 1000kg Chain Driven 4
Automatic Remote Control Door Opener Sliding Door Opener For 1000kg Chain Driven 5
