60N.M 15RPM AC 220V Tubular Motor Roller Shutter

50 SETS
MOQ
Negotiable
Price
60N.M 15RPM AC 220V Tubular Motor Roller Shutter
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Tubular Motor
Type: YX59S-60/15
Power Supply: AC 220V/50Hz; AC 120V/60Hz
Rated Torque (N.m): 60
Rated Speed (rpm): 15
Rated Power (W): 330W
Highlight:

60N.M Tubular Motor Roller Shutter

,

330W Tubular Motor Roller Shutter

,

220V ellard tubular motor
Basic Infomation
Place of Origin: China
Brand Name: SONGRUI
Certification: CE
Model Number: YX59S-60/15
Payment & Shipping Terms
Delivery Time: 5-8 WORK DAYS
Payment Terms: T/T
Supply Ability: 10000 Set/Sets per Month
Product Description

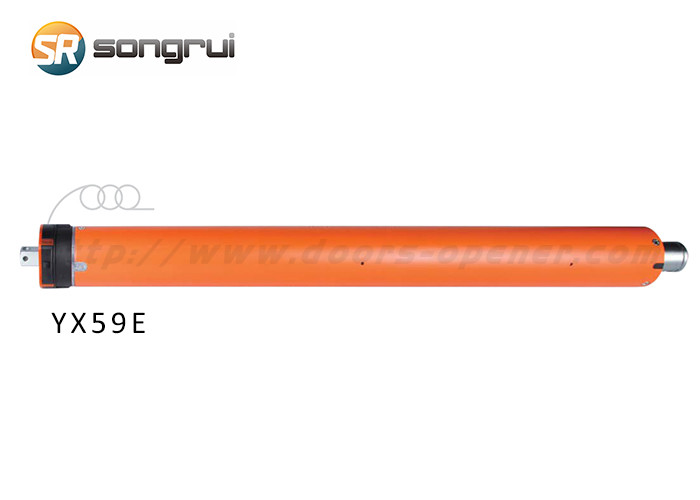

59E AC Electronic Type-Electronic Limit+Build-in Receiver Tubular Motor Roller Shutter



Detailed product description:

1. Electronic Type-Electronic Limit+Build-in Receiver.

2. Motors are the driving force behind many roller shutters and windows, awnings, garage doors, and projection screens.

3. The product emits minial noise during operation, are easy to conceal, compact in size and whisk to install.





Main technical parameters:

YX59E 60Nm/120Kg

AC230V 50Hz

Type YX59E-60/15 YX59E-80/15 YX59E-100/12 YX59E-120/9 YX59E-140/9 YX59E-180/5
Rated Torque (N.m) 60 80 100 120 140 180
Rated Speed (rpm) 15 15 12 9 9 5
Rated Power (W) 330 380 386 390 396 450
Rated Current (A) 1.45 1.67 1.68 1.70 1.75 1.96
Running Time (min) 4 4 4 4 4 4
Protection Class (IP) IP44 IP44 IP44 IP44 IP44 IP44
Max. Turns (turn) Unlimited Unlimited Unlimited Unlimited Unlimited Unlimited
L1/L2(mm) 546/450 546/450 546/450 704/600 704/600 652/580



AC120V 60Hz

Type YX59E-60/14 YX59E-80/14 YX59E-100/11 YX59E-120/11 YX59E-140/11 YX59E-180/6
Rated Torque (N.m) 60 80 100 120 140 180
Rated Speed (rpm) 14 14 11 11 11 6
Rated Power (W) 325 375 380 385 390 383
Rated Current (A) 2.76 3.11 3.16 3.20 3.30 3.19
Running Time (min) 4 4 4 4 4 4
Protection Class (IP) IP44 IP44 IP44 IP44 IP44 IP44
Max. Turns (turn) Unlimited Unlimited Unlimited Unlimited Unlimited Unlimited
L1/L2(mm) 638/542 638/542 638/542 638/542 638/542 652/580



Our service:

Welcome OEM&ODM orders

1. Logo printing on products;
2. Customized color box or carton;
3. Any your ideas on products we can help you to design and put it into production.60N.M 15RPM AC 220V Tubular Motor Roller Shutter 0
