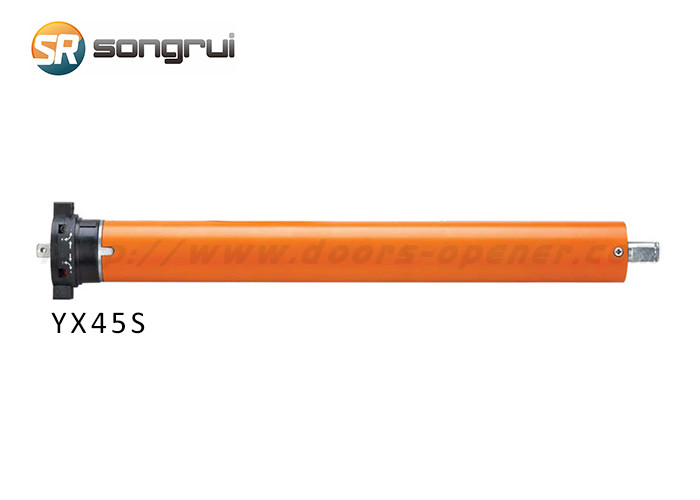

AC 220V 10N.M 15RPM Tubular Motor Roller Shutter

50 SETS
MOQ
Negotiable
Price
AC 220V 10N.M 15RPM Tubular Motor Roller Shutter
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Tubular Motor
Type: YX45S-10/15
Power Supply: AC 220V/50Hz; AC 120V/60Hz
Rated Torque (N.m): 10
Rated Speed (rpm): 15
Rated Power (W): 125W
High Light:

15RPM Tubular Motor Roller Shutter

,

220V Tubular Motor Roller Shutter

,

10N.M tubular roller shutter motor

Basic Infomation
Place of Origin: China
Brand Name: SONGRUI
Certification: CE
Model Number: YX45S-10/15
Payment & Shipping Terms
Delivery Time: 5-8 WORK DAYS
Payment Terms: T/T
Supply Ability: 10000 Set/Sets per Month
Product Description

45S AC Rolling Door Motor Standard Type-Mechanical Limit

Tubular motor classification:

① According to its tube size classification: 35 motor, 45 motor, 59 motor, 92 motor, etc.

② According to the operation principle of the stroke part during power failure, it can be classified into standard tubular motor, hand operated tubular motor, chain tubular motor, clutch tubular motor and resistance tubular motor.

Detailed product description:

1. Standard Type-Mechanical Limit.

2. Motors are the driving force behind many roller shutters and windows, awnings, garage doors, and projection screens.

3. The product emits minial noise during operation, are easy to conceal, compact in size and whisk to install.





Main technical parameters:

YS45S

10N.m/20 Kg

AC230V 50Hz

Type YX45S-10/15 YX45S-10/26 YX45S-15/15 YX45S-20/15 YX45S-20/26 YX45S-30/15 YX45S-40/15 YX45S-50/12 YX45S-60/8 YX45S-70/9
Rated Torque (N.m) 10 10 15 20 20 30 40 50 60 70
Rated Speed (rpm) 15 26 15 15 26 15 15 12 8 9
Rated Power (W) 125 150 140 150 215 200 215 230 235 244
Rated Current (A) 0.54 0.65 0.61 0.65 0.93 0.90 0.93 1.00 1.02 1.06
Running Time (min) 4 4 4 4 4 4 4 4 4 4
Protection Class (IP) IP44 IP44 IP44 IP44 IP44 IP44 IP44 IP44 IP44 IP44
Max. Turns (turn) 21/36 21/36 21/36 21/36 21/36 21/36 21/36 21/36 21/36 21/36
L1/L2(mm) 455/380 455/380 455/380 455/380 525/450 525/450 525/450 535/460 535/460 535/460



YS45S

10N.m/20 Kg

AC120V 60Hz

Type YX45S-10/18 YX45S-10/31 YX45S-15/18 YX45S-20/18 YX45S-20/31 YX45S-30/14 YX45S-40/14 YX45S-50/14 YX45S-60/10 YX45S-70/11
Rated Torque (N.m) 10 10 15 20 20 30 40 50 60 70
Rated Speed (rpm) 18 31 18 18 31 14 14 14 10 11
Rated Power (W) 133 140 140 140 165 149 165 180 185 219
Rated Current (A) 1.05 1,.10 1.16 1.16 1.41 1.20 1.41 1.46 1..50 1.82
Running Time (min) 4 4 4 4 4 4 4 4 4 4
Protection Class (IP) IP44 IP44 IP44 IP44 IP44 IP44 IP44 IP44 IP44 IP44
Max. Turns (turn) 21/36 21/36 21/36 21/36 21/36 21/36 21/36 21/36 21/36 21/36
L1/L2(mm) 474/400 474/400 474/400 474/400 544/470 544/470 544/470 555/480 555/480 575/500



Our service:

Welcome OEM&ODM orders

1. Logo printing on products;
2. Customized color box or carton;
3. Any your ideas on products we can help you to design and put it into production.
