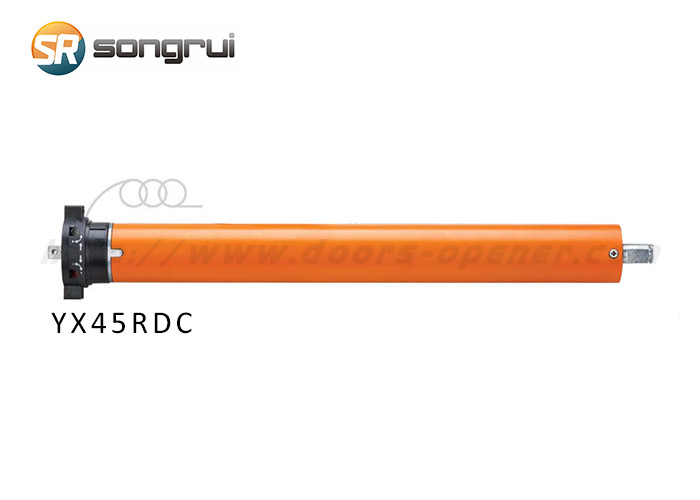

45R DC 12V Radio 15RPM 10N.M Tubular Motor Roller Shutter

50 SETS
MOQ
Negotiable
Price
45R DC 12V Radio 15RPM 10N.M Tubular Motor Roller Shutter
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Tubular Motor
Type: YX45 RDC-10N/15
Power Supply: AC 220V/50Hz; AC 120V/60Hz
Rated Torque (N.m): 10
Rated Speed (rpm): 15
Rated Power (W): 38W
High Light:

10N.M Tubular Motor Roller Shutter

,

15RPM Tubular Motor Roller Shutter

,

120V tube tubular motors

Basic Infomation
Place of Origin: China
Brand Name: SONGRUI
Certification: CE
Model Number: YX45 RDC-10N/15
Payment & Shipping Terms
Delivery Time: 5-8 WORK DAYS
Payment Terms: T/T
Supply Ability: 10000 Set/Sets per Month
Product Description

45RDC DC 12V Radio Type-Mechanical Limit+Build-in Receiver Tubular Motor Roller Shutter

Detailed product description:

1. Radio Type-Mechanical Limit+Build-in Receiver

2. Motors are the driving force behind many roller shutters and windows, awnings, garage doors, and projection screens.

3. The product emits minial noise during operation, are easy to conceal, compact in size and whisk to install.


Main technical parameters:
YX45RDC (20Nm/40Kg)
DC 12V

Type

YX45 RDC-10N/15

YX45 RDC-20N/15

YX45 RDC-30N/15

YX45 RDC- 40N/12

YX45 RDC-50N/9

Rated Torque (N.m)

10

20

30

40

50

Rated Speed (rpm)

15

15

15

12

9

Rated Power (W)

38

58

66

78

94

Rated Current (A)

3.2

4.8

5.5

6.5

7.8

Rated Voltage (V)

12

12

12

12

12

Max. Turns (turn)

22/36

22/36

22/36

22/36

22/36

L1/L2(mm)

610/550

610/550

610/550

610/550

610/550



Our service:

Welcome OEM&ODM orders:

1. Logo printing on products;
2. Customized color box or carton;
3. Any your ideas on products we can help you to design and put it into production.
