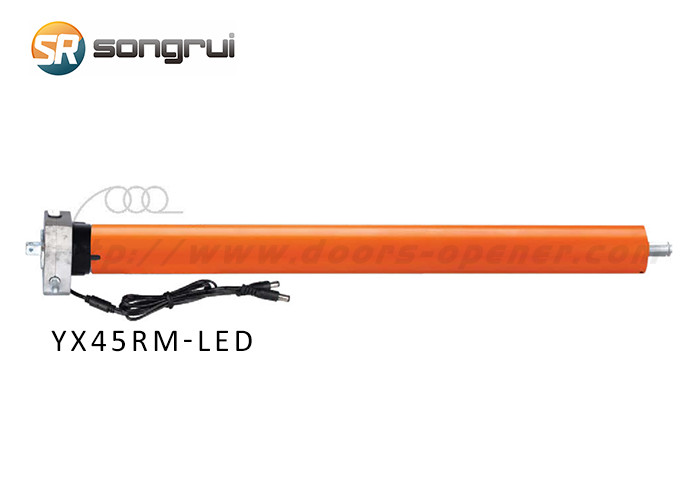

12V LED Connection 45RM Roller Shutter Tubular Motor
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Tubular Motor
Type: YX45RM-LED-10/15
Power Supply: AC 220V/50Hz; AC 120V/60Hz
Rated Torque (N.m): 10
Rated Speed (rpm): 15
Rated Power (W): 125W
High Light:

45RM Roller Shutter Tubular Motor

,

15rpm Roller Shutter Tubular Motor

,

10n.m Motor Tubular

Basic Infomation
Place of Origin: China
Brand Name: SONGRUI
Certification: CE
Model Number: YX45RM-LED-10/15
Payment & Shipping Terms
Delivery Time: 5-8 WORK DAYS
Payment Terms: T/T
Supply Ability: 10000 Set/Sets per Month
Product Description

45RM Mechanical Limit Switch+radio+Manual override+12V LED Connection Tubular Motor Roller Shutter



Detailed product description:

1. Mechanical Limit Switch+radio+Manual override+12V LED Connection.

2. Motors are the driving force behind many roller shutters and windows, awnings, garage doors, and projection screens.

3. The product emits minial noise during operation, are easy to conceal, compact in size and whisk to install.



Main technical parameters:

YX45RM-LED 10N.m/20Kg

AC230V 50Hz

Type YX45RM-LED-10/15 YX45RM-LED-10/26 YX45RM-LED-15/15 YX45RM-LED-20/15 YX45RM-LED-20/26 YX45RM-LED-30/15 YX45RM-LED-40/15 YX45RM-LED-50/12 YX45RM-LED-60/8 YX45RM-LED-70/9
Rated Torque (N.m) 10 10 15 20 20 30 40 50 60 70
Rated Speed (rpm) 15 26 15 15 26 15 15 12 8 9
Rated Power (W) 125 150 140 150 215 200 215 230 235 244
Rated Current (A) 0.54 0.65 0.61 0.65 0.93 0.90 0.93 1.00 1.02 1.06
Running Time (min) 4 4 4 4 4 4 4 4 4 4
Protection Class (IP) IP44 IP44 IP44 IP44 IP44 IP44 IP44 IP44 IP44 IP44
Max. Turns (turn) 32 32 32 32 32 32 32 32 32 32
L1/L2(mm) 665/580 665/580 665/580 665/580 775/690 775/690 775/690 775/690 775/690 795/710





AC120V 60Hz

Type YX45RM-LED-10/18 YX45RM-LED-10/31 YX45RM-LED-15/18 YX45RM-LED-20/18 YX45RM-LED-20/31 YX45RM-LED-30/14 YX45RM-LED-40/14 YX45RM-LED-50/14 YX45RM-LED-60/10 YX45RM-LED-70/11
Rated Torque (N.m) 10 10 15 20 20 30 40 50 60 70
Rated Speed (rpm) 18 31 18 18 31 14 14 14 10 11
Rated Power (W) 133 140 140 140 165 149 165 180 185 219
Rated Current (A) 1.05 1,.10 1.16 1.16 1.41 1.20 1.41 1.46 1..50 1.82
Running Time (min) 4 4 4 4 4 4 4 4 4 4
Protection Class (IP) IP44 IP44 IP44 IP44 IP44 IP44 IP44 IP44 IP44 IP44
Max. Turns (turn) 32 32 32 32 32 32 32 32 32 32
L1/L2(mm) 665/580 665/580 665/580 665/580 775/690 775/690 775/690 775/690 775/690 795/710













































Our service:

Welcome OEM&ODM orders

1. Logo printing on products;
2. Customized color box or carton;
3. Any your ideas on products we can help you to design and put it into production.12V LED Connection 45RM Roller Shutter Tubular Motor 0
