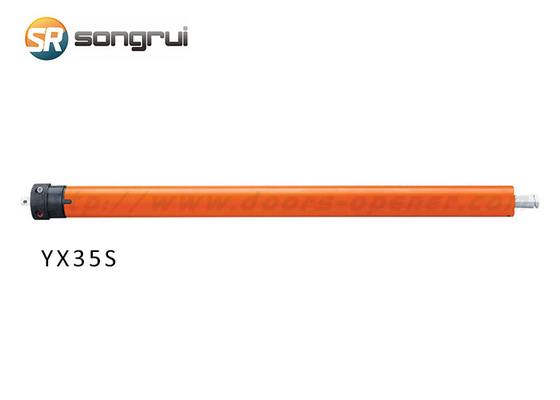

35S AC Rolling Door Motor Tubular Motor For Garage Door

50 SETS
MOQ
Negotiable
Price
35S AC Rolling Door Motor Tubular Motor For Garage Door
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Tubular Motor
Type: YX35S-13/12
Power Supply: AC 220V/50Hz; AC 120V/60Hz
Rated Torque (N.m): 13
Rated Speed (rpm): 12
Rated Power (W): 150W
Basic Infomation
Place of Origin: China
Brand Name: SONGRUI
Certification: CE
Model Number: YX35S-13/12
Payment & Shipping Terms
Delivery Time: 5-8 WORK DAYS
Payment Terms: T/T
Supply Ability: 10000 Set/Sets per Month
Product Description

35S AC Rolling Door Motor Tubular Motor For Garage Door



Detailed product description:

1. Standard Type-Mechanical Limit.

2. Motors are the driving force behind many roller shutters and windows, awnings, garage doors, and projection screens.

3. The product emits minial noise during operation, are easy to conceal, compact in size and whisk to install.





Main technical parameters:

YS35S

10N.m/20 Kg

AC230V 50Hz

Type YX35S-3/28 YX35S-6/17 YX35S-6/28 YX35S-10/17 YX35S-13/12
Rated Torque (N.m) 3 6 6 10 13
Rated Speed (rpm) 28 17 28 17 12
Rated Power (W) 120 120 140 140 150
Rated Current (A) 0.52 0.52 0.60 0.60 0.65
Running Time (min) 4 4 4 4 4
Protection Class (IP) IP44 IP44 IP44 IP44 IP44
Max. Turns (turn) 39 39 39 39 39
L1/L2(mm) 522/450 522/450 522/450 522/450 522/450



YS35S

10N.m/20 Kg

AC120V 60Hz

Type YX35S-3/33 YX35S-6/20 YX35S-6/33 YX35S-10/20 YX35S-13/14
Rated Torque (N.m) 3 6 6 10 13
Rated Speed (rpm) 33 20 33 20 14
Rated Power (W) 102 102 105 105 110
Rated Current (A) 0.86 0.86 0.88 0.88 0.92
Running Time (min) 4 4 4 4 4
Protection Class (IP) IP44 IP44 IP44 IP44 IP44
Max. Turns (turn) 39 39 39 39 39
L1/L2(mm) 522/450 522/450 522/450 522/450 522/450



Our service:

Welcome OEM&ODM orders

1. Logo printing on products;
2. Customized color box or carton;
3. Any your ideas on products we can help you to design and put it into production.35S AC Rolling Door Motor Tubular Motor For Garage Door 0
