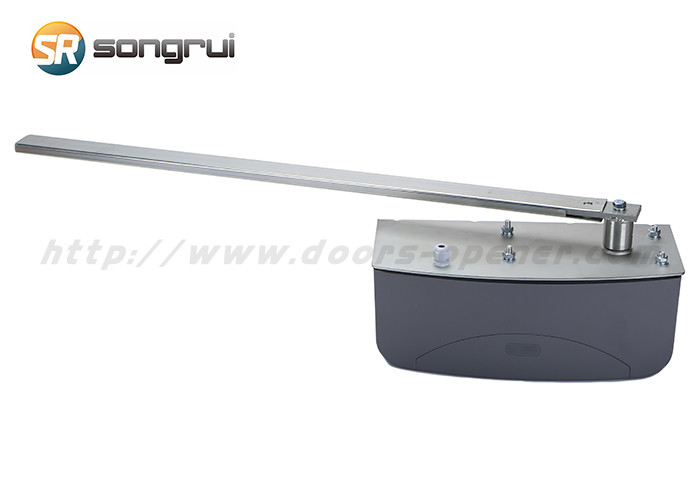

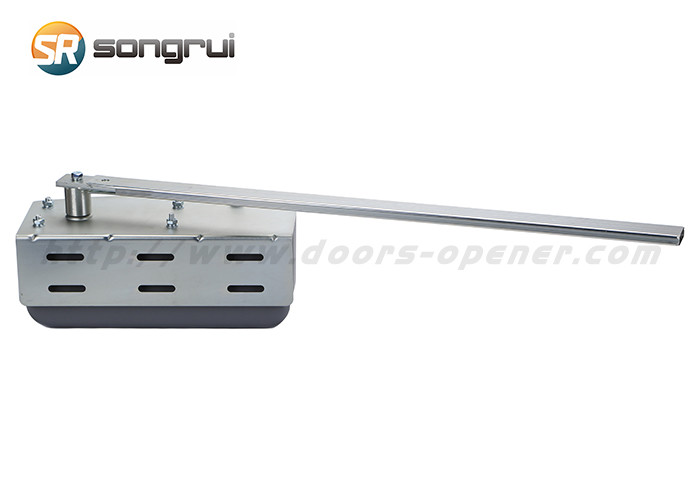

Swing Gate Opener Automatic Door Operator Automation AC Motor 400KG PK400ZD
The PK400ZD gate opener designed for residential courtyard swing gate use, gate leaf weight up to 400 Kg and width up to 3.0 meters.
Detailed product description:
* Safe and reliable performance.
* Adjustable moving speed.
* Keypad / single button interface.
* Alarm lamp, Photo beam & safety beam interface.
* User can select auto-close function.
* Integrated mechanical limit switches that permits to eliminate the ground stops.

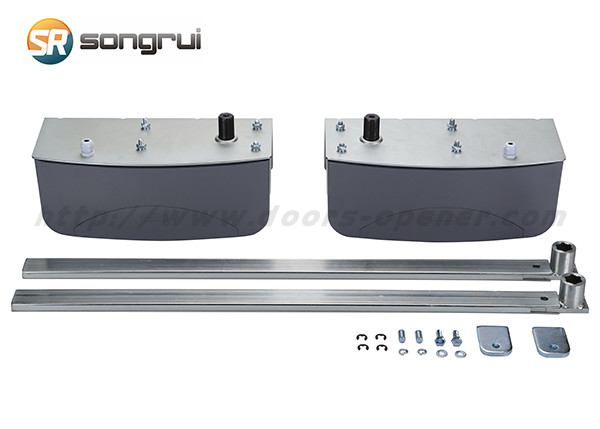

* Available for installs 2 openers or 1 opener with a single control box.
* Available with articulated arm or sliding arm.
* Manual key release design for emergency purposes.
Main technical parameters:
|
item
|
value
|
|
Warranty
|
1 Year
|
|
After-sale Service
|
Online technical support
|
|
Project Solution Capability
|
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
|
|
Application
|
Villa
|
|
Design Style
|
Modern
|
|
Model Number
|
PK400ZD
|
|
Model
|
PK400ZD
|
|
Power supply
|
AC220V/50Hz, AC110V/60HZ
|
|
Motor power
|
260W
|
|
Opening time
|
9°/s~11°/s
|
|
Maximum weight of single gate
|
400Kg
|
|
Distance for remote control
|
≥30m
|
|
Remote control mode
|
Single-button mode/Four-button mode
|
|
Limit switch
|
Mechanical limit switch
|
|
Working temperature
|
-20°C ~ +70°C
|
|
Weight
|
Motor 26Kg, Control Unit 2Kg
|
