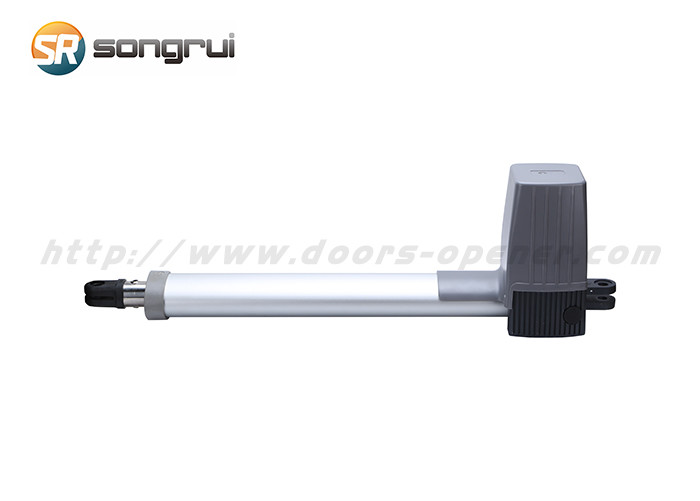

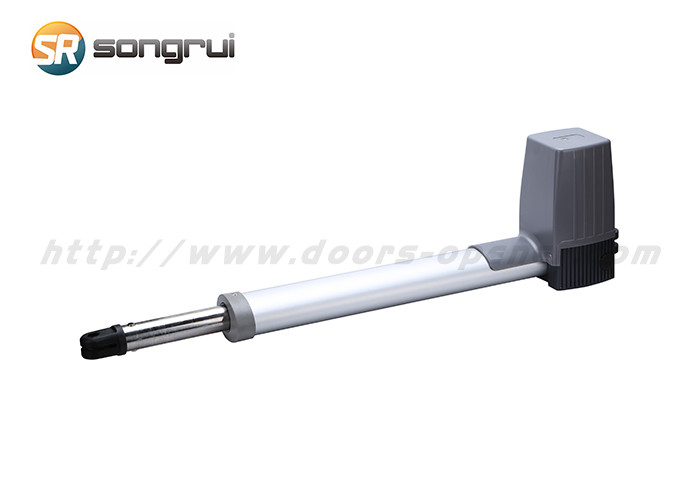

The PK300DC gate opener designed for residential courtyard swing gate use, gate leaf weight up to 300 Kg and width up to 2.5 m / 3.0 m.
Product features:
* DC motor, compact structure, smooth operation and low noise.
* Optional for Stroke length 29 cm and 49 cm.
* Separately control box
* Keypad / single button interface.
* Alarm lamp, Photo beam & safety beam interface.
* User can select auto-close function.
* Installing the mechanical stops inside the opener to eliminate ground stops, possibility to use adjustable fixing limit block.
* Manual key release design for emergency purposes.
* Automatic stop when hitting obstacle during opening, auto-reverse when hitting obstacle during closing.
Main technical parameters:
| Unit Model | PK300DC | PK350DC |
| Power Supply | 220V,50Hz;110V,60Hz | |
| Max. Gate Weight | 300KG / Leaf | |
| Max. Gate Length | 2.5 m / Leaf | 3.0 m / Leaf |
| Motor Power | DC24V,80W | |
| Gate Moving Speed | 20 second per 90 angle | |
| Limit Switch | Stop Block | |
| Recording of up Remotes | 25 | |
| Decoding / Frequency | Rolling code / 433.92MHz | |
| Work Duty | S2 30min | |
| Noise | ≤60dB | |
| Work Temperature | -20°C~70°C | |
| Gross Weight | 16 KG | 19 KG |
