Name: 150 Watt 110V 500KG DKC500DC Automatic Door Openers
Brand: Shenzhen songrui electric door & window systems Co., Ltd
SKU: DKC500DC
Availability: InStock

150 Watt 110V 500KG DKC500DC Automatic Door Openers

50 SETS

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Power Supply: 220V/50Hz;110V/60Hz

Maximum Gate Weight: 500KG

Motor Power: DC24V/150

Output Torque: 14N.m

Limit Switch: Spring Limit Switch / Magnetic Limit Switch

Gate Moving Speed: 11-13m/min

Highlight:

DKC500DC Automatic Door Openers

150w Automatic Door Openers DKC500DC

500kg automatic sliding garage door opener

Basic Infomation

Place of Origin: China

Brand Name: SONGRUI

Certification: CE

Model Number: DKC500DC

Payment & Shipping Terms

Packaging Details: 37*25.5*32cm

Delivery Time: 5-8 WORK DAYS

Payment Terms: T/T

Supply Ability: 10000 Set/Sets per Month

Gallery

150 Watt 110V 500KG DKC500DC Automatic Door Openers

Product Description

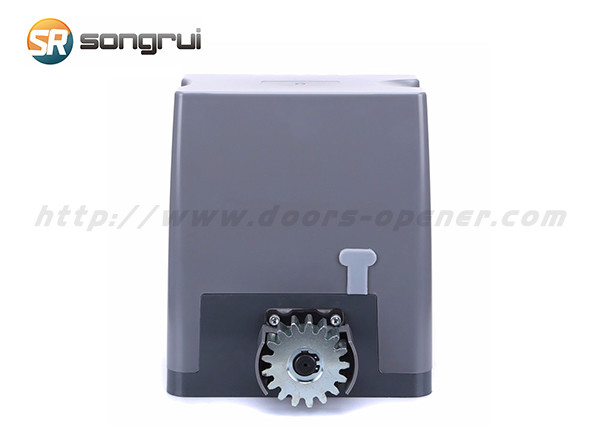

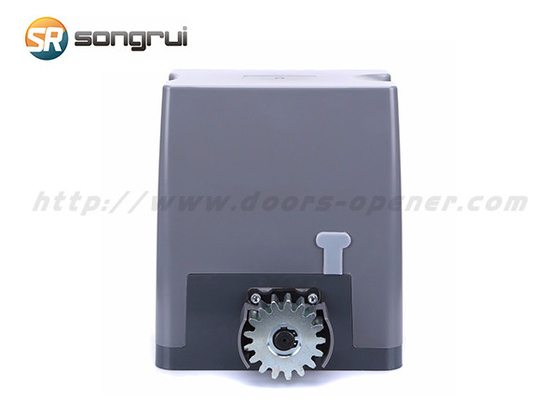

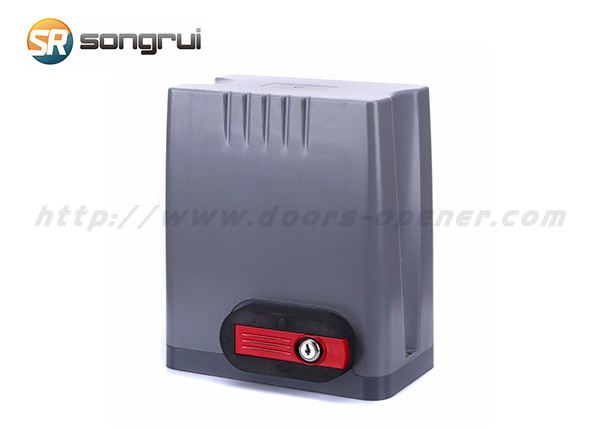

DC Motor Automatic Gate Opener for 500kg Sliding Gate DKC500DC

The DKC500DC gate opener designed for residential use, weight up to 500Kg and operating distance up to 8 meters.

Compact structure, novel appearance, easy installation.

Main Features:

DC 24V motor or AC motor with built-in control unit.
Optional connect backup battery. (DC motor)
Solar system compatible. (DC motor)
Keypad / single button interface.
Alarm lamp, photo beam & safety beam interface.
User can select auto-close function.
Soft start and slow stop. (Smart version)
Auto-reverse function when hitting obstacle during closing. (Smart version)
Manual key release design for emergency purposes.

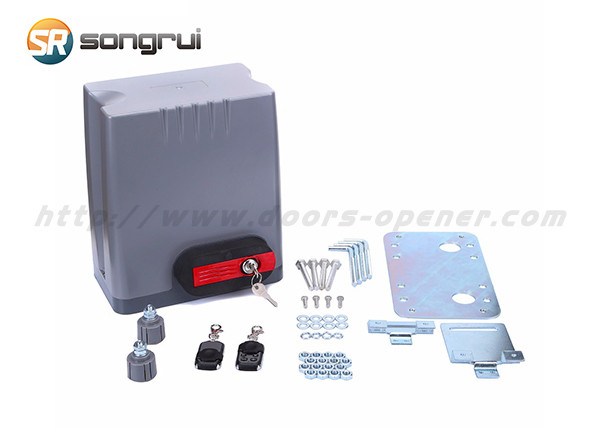

Standard unit:

Gate motor
Control board & box
2pcs remote controls
Manual release key
User manual
Bolts & nuts

Main technical parameters:

Unit Model	DKC500DC
Power Supply	AC220V/50Hz
Maximum Gate Weight	500kg
Motor Power	DC24V/150
Output Torque	14N.m
Output Shaft Height	46mm
Limit Switch	magnetic limit switch or spring limit switch
Gate Moving Speed	11-13m/min
Remote Control Range	≥30md
Recording of Up Remotes	25
Frequency	433.92MHz
Work Duty	S2 20min
Noise	≤56db
Working Tempreature	-20℃~+50℃
Backup Battery	Optional
Driving Mode	Gear
Package Weight	11kg

150 Watt 110V 500KG DKC500DC Automatic Door Openers 1

150 Watt 110V 500KG DKC500DC Automatic Door Openers 4
