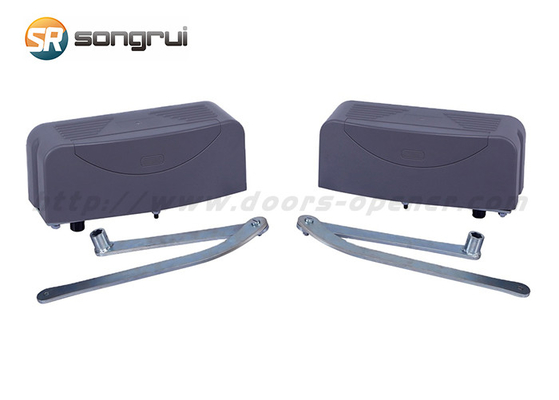

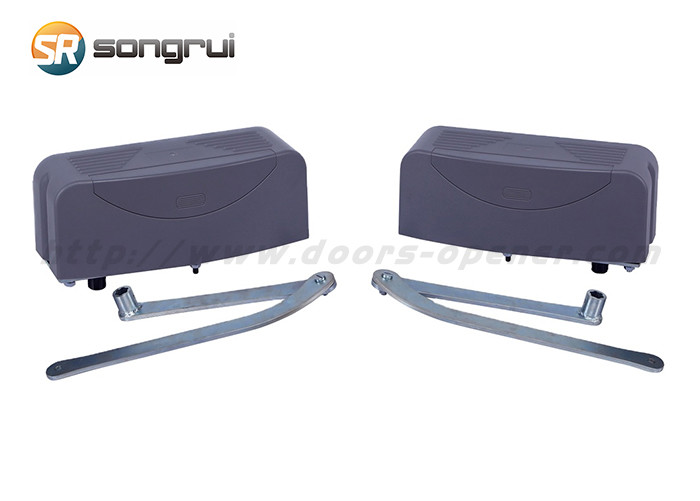

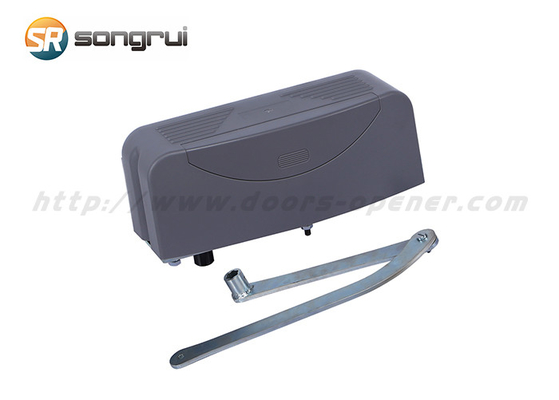

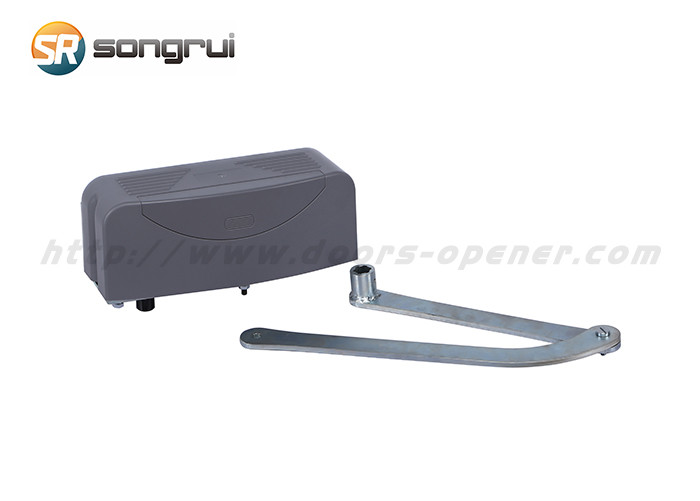

200W Swing Arm Gate Opener

200W Swing Arm Gate Opener
Features Gallery Product Description Request A Quote
Product Name: Swing Gate Opener
Type: PK400AC
Power Supply: 220V,50Hz;110V,60Hz
Max. Gate Weight: 400KG / Leaf
Max. Gate Length: 3.0 M / Leaf
Motor Power: 200W
Gate Moving Speed: 10 Second Per 90 Angle
High Light:

200W Swing Arm Gate Opener


400KG Swing Arm Gate Opener


220V wifi electric gate opener

Basic Infomation
Place of Origin: China
Brand Name: SONGRUI
Certification: CE
Model Number: PK400AC
Payment & Shipping Terms
Delivery Time: 5-8 WORK DAYS
Payment Terms: T/T
Product Description

Smart WiFi Remote Control Linear Arm Swing Gate Opener Automatic Swing Gate Motor Operator


The gate opener designed for residential courtyard swing gate use, gate leaf weight up to 400 Kg and width up to 3.0 meters.


Detailed Product Description:

1. Safe and reliable performance.

2. Adjustable moving speed.

3. Keypad / single button interface.

4. Alarm lamp, Photo beam & safety beam interface.

5. User can select auto-close function.

6. Integrated mechanical limit switches that permits to eliminate the ground stops.

7. Available for installs 2 openers or 1 opener with a single control box.

8. Available with articulated arm or sliding arm.

9. Manual key release design for emergency purposes.


Main technical parameters:

Unit Model PK400AC
Power Supply 220V,50Hz;110V,60Hz
Max. Gate Weight 400KG / Leaf
Max. Gate Length 3.0 m / Leaf
Motor Power 200W
Gate Moving Speed 10 second per 90 angle
Limit Switch Mechanical
Recording of up Remotes 25
Decoding / Frequency Rolling code / 433.92MHz
Work Duty S2 15min
Noise ≤60dB
Work Temperature -20°C~70°C
Gross Weight 28KG (2 package)


Our service:

Welcome OEM&ODM orders

1. Logo printing on products;
2. Customized color box or carton;
3. Any your ideas on products we can help you to design and put it into production.


200W Swing Arm Gate Opener 0200W Swing Arm Gate Opener 1200W Swing Arm Gate Opener 2

200W Swing Arm Gate Opener 3200W Swing Arm Gate Opener 4
