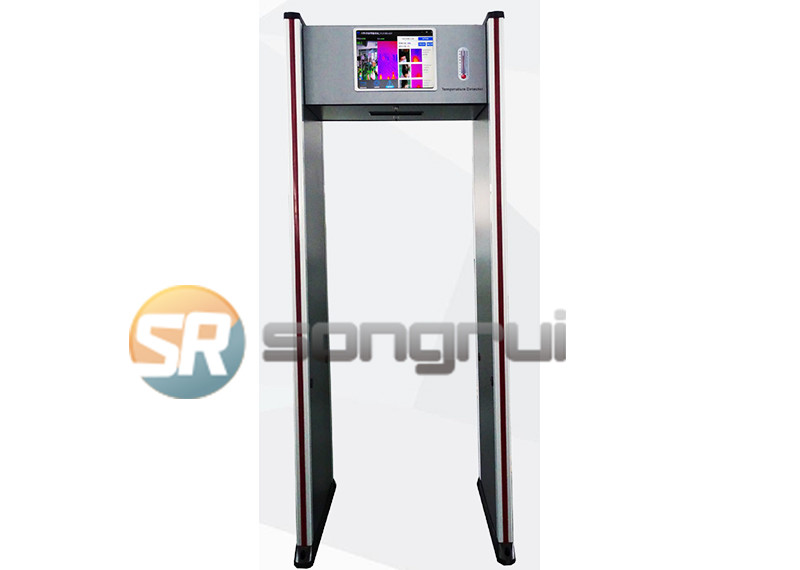

Integrated door of thermal imaging and temperature measurement
This product uses infrared thermal imaging technology to quickly grasp the temperature data, and non-contact body temperature detection is carried out for the personnel to be inspected. Abnormal body temperature will be prompted through sound and light alarm, and therefore can effectively prevent the large-scale disease transmission.
This product adopts the world's advanced electromagnetic compatibility design and anti-vibration design, with ultra-high sensitivity, strong anti-interference ability and anti-seismic ability. It can detect the metal of passing personnel, check whether the passing personnel carry metal contraband, effectively help the anti-epidemic work, and realize the prevention and control of public security.
Temperature measurement + Metal detection (Free to match)
TP-R2020-N (Without security check)
TP-R2020-6 (Security check with six zones)
TP-R2020-M (Thermodetector only)
Temperature measurement while passing, non-contact remote passive imaging technology, on-line monitoring of multi-target body temperature
12 inch touch-sensitive integrated machine
It is an intelligent product integrating high-precision thermal imaging temperature sensor, built-in intelligent face capture algorithm and image processing technology, with face detection, body temperature detection, face capture and other powerful functions
The upper limit of multi-person temperature measurement can be up to 15 people.
Support split screen: The product can be connected with external large-screen display to master the dynamic in real time
Unlimited height: Suitable for kindergartens, primary schools, middle schools, university, height 0.5m - 2.0m universal
Fast passage: The temperature of personnel in the screen all can be detected to realize the fast passage.
External projection screen: It can be connected with large screen and display in real time.
Multi scene: Bicycles, wheelbarrows, people in helmets, pregnant women, the elderly, children and so on can pass through the product at ease.
| Thermal imaging | |
| Resolution ratio | 256x 192 |
| Spacing of image sources | 17um |
| Lens | 3.6 mm |
| Sensitivity | ＜60mk |
| Angle of viewing field | 35°X 27° ( HX V) |
| Visible light | |
| Sensor | 1/2.8 CMOS |
| Resolution ratio | 1920X1080 |
| Lens size | 4mm, 84°X45° |
| Size | 280mmx85mmx75mm |
| Precision | ±0.3℃ |
| Alarm temperature | Settable |
Product size
Overall dimension:2300*810*500mm
Passage size: 1900*700*500mm
Packing size
Door header packaging: 750*370*415mm
Door panel packaging: 2280*600*180mm
Net weight of door header: 20kg, Gross weight: 25kg
Net weight of door panel: 40kg, Gross weight: 50kg
Packing list
Door header x 1
Left door panel x 1
Right door panel x 1
Foot cover at the bottom of door panel x 2
Foot cover at the top of door panel x 2
Power cord x 1
Door key x 1
Certificate x 1
Instructions x 1
Hexagon wrench x 1
Hexagon socket flat round head screw x 8 (M8x80)
Silk screen printing LOGO
Support silk screen printing logo, panel film, design and style
Custom style
Custom height, custom width, custom functions, such as booting advertising, LED display advertising, etc
Customized backstage
Docking face recognition, campus card, WeChat, cloud system, and other background data docking
Crowded places: Subway station, high-speed rail station, airport, railway station, bus station, port, wharf, etc
Municipal Enterprises: Schools, hospitals, courts, procuratorates, prisons, detention centers, reeducation through labor centers, drug rehabilitation centers, public security bureaus, banks, large enterprises, industrial parks, etc
Public place: Exhibition hall, museum, gymnasium, entertainment place, supermarket
Test report, CE certification, ROHS certification, FCC certification
01 Online upgrade
No need to send back hardware, online upgrade, more smooth operation of system, more stable, more intelligent
02 After-sale service
Provide online and offline multi-mode after-sales service, response in 10 minutes, follow-up by special personnel, and provide solutions within 12 hours
03 One-year shelf life
One year warranty, lifelong maintenance service, and provide long-term supply of spare parts and technical support
04 Return and exchange
If the calibration is invalid and the deviation is more than 0.5 degrees, it can be returned and replaced. Please refer to the return policy for details.
